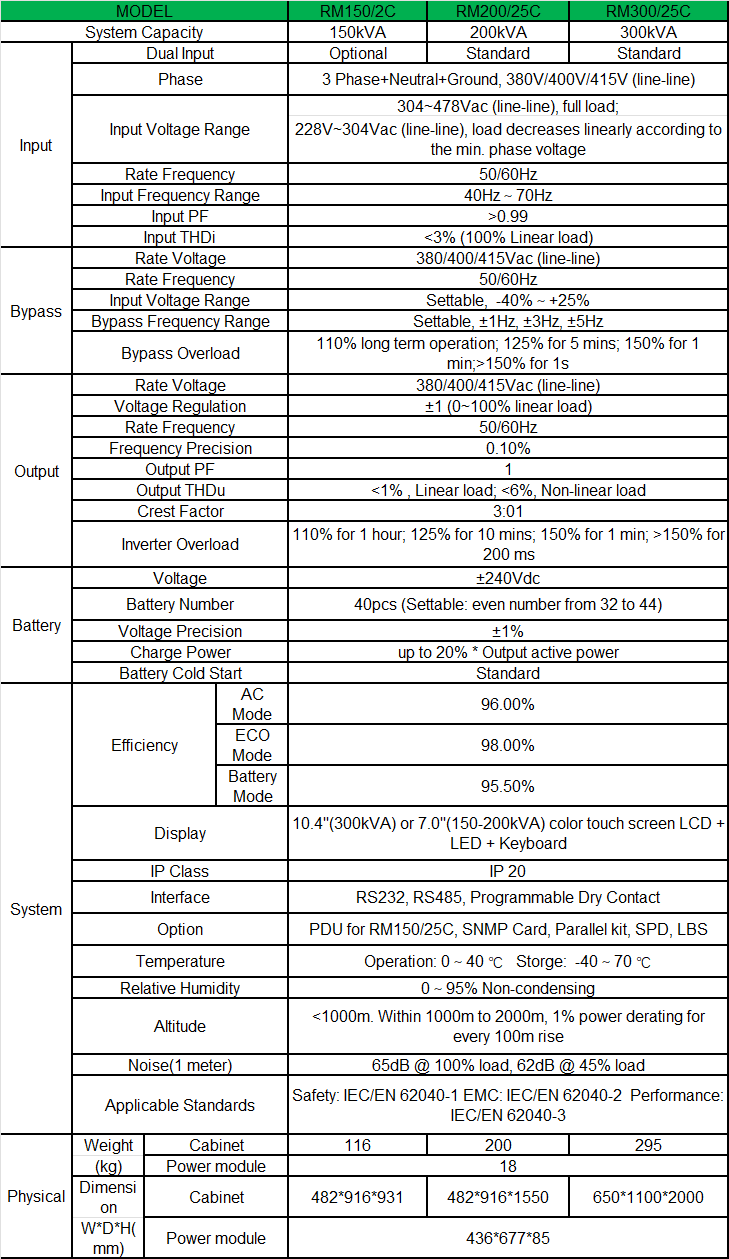

| MODEL | RM150/2C | RM200/25C | RM300/25C | ||||
| System Capacity | 150kVA | 200kVA | 300kVA | ||||
| Input | Dual Input | Optional | Standard | Standard | |||
| Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||||
| Input Voltage Range | 304~478Vac (line-line), full load; 228V~304Vac (line-line), load decreases linearly according to the min. phase voltage | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Input Frequency Range | 40Hz～70Hz | ||||||
| Input PF | >0.99 | ||||||
| Input THDi | <3% (100% Linear load) | ||||||
| Bypass | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Rate Frequency | 50/60Hz | ||||||
| Input Voltage Range | Settable, -40%～+25% | ||||||
| Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||||
| Bypass Overload | 110% long term operation; 125% for 5 mins; 150% for 1 min;>150% for 1s | ||||||
| Output | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Voltage Regulation | ±1 (0~100% linear load) | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Frequency Precision | 0.1% | ||||||
| Output PF | 1 | ||||||
| Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||||
| Crest Factor | 3:1 | ||||||
| Inverter Overload | 110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms | ||||||
| Battery | Voltage | ±240Vdc | |||||
| Battery Number | 40pcs (Settable: even number from 32 to 44) | ||||||
| Voltage Precision | ±1% | ||||||
| Charge Power | up to 20% * Output active power | ||||||
| Battery Cold Start | Standard | ||||||
| System | Efficiency | AC Mode | 96.0% | ||||
| Efficiency | ECO Mode | 98.0% | |||||
| Efficiency | Battery Mode | 95.5% | |||||
| Display | 10.4"(300kVA) or 7.0"(150-200kVA) color touch screen LCD + LED + Keyboard | ||||||
| IP Class | IP 20 | ||||||
| Interface | RS232, RS485, Programmable Dry Contact | ||||||
| Option | PDU for RM150/25C, SNMP Card, Parallel kit, SPD, LBS | ||||||
| Temperature | Operation: 0～40 ℃ Storge: -40～70 ℃ | ||||||
| Relative Humidity | 0～95% Non-condensing | ||||||
| Altitude | <1000m. Within 1000m to 2000m, 1% power derating for every 100m rise | ||||||
| Noise(1 meter) | 65dB @ 100% load, 62dB @ 45% load | ||||||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||||
| Physical-Weight(kg)-Cabinet | 116 | 200 | 295 | ||||
| Physical-Weight(kg)-Power module | 18 | ||||||
| Physical-Dimension W*D*H(mm)-Cabinet | 482*916*931 | 482*916*1550 | 650*1100*2000 | ||||
| Physical-Dimension W*D*H(mm)-CabinetPower module | 436*677*85 | ||||||
Popular Searches:

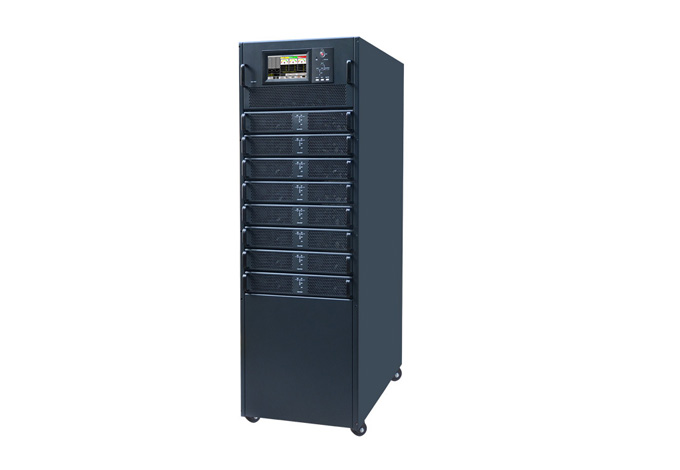

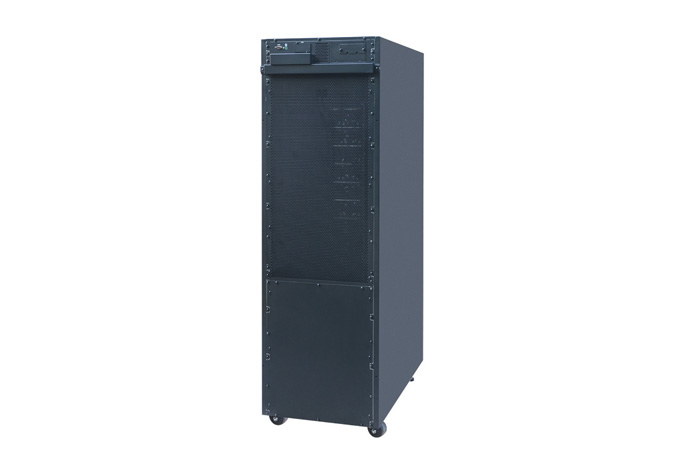

RM Series Rack-Modular Online UPS 25-300kVA（380V/400V/415V）
The RM Series Rack Mounted Modular UPS is scalable, hot-swappable, online double conversion. The power capacity is from 25 to 300kVA/kW, which is the ideal choice for modern data center. With the latest IGBT three-level and full DSP control technology, the new RM series delivers the best combination of reliability and flexibility.
·Rack Modular UPS
·25~300kVA
·Three Phase In, Three Phase Out
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Compact and Flexible Physical Design

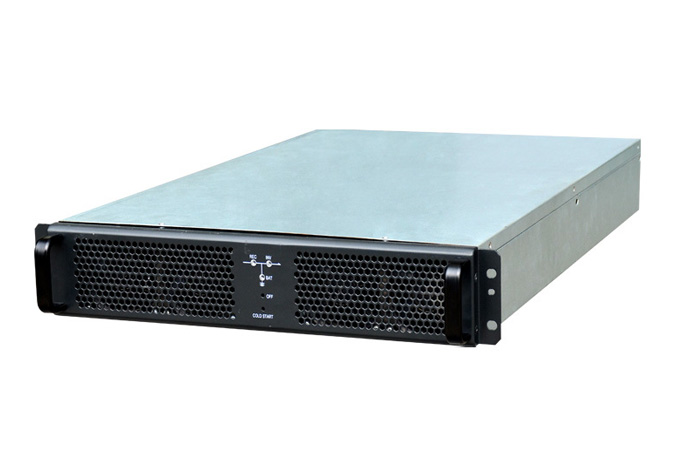

High Power Density: 25kVA power module in only 2U height saves significant space and enables easy capacity expansion.Rack Modular Design: Compatible with standard 19" cabinets, allowing seamless integration with server racks for simplified deployment.01
Enhanced Operational Reliability and Usability
Battery Cold Start: The UPS can be powered directly from the battery without utility power, ensuring continued operation during grid failures.Friendly Interface: Features an intuitive touch LCD display, providing rich information for straightforward monitoring and operation.02
