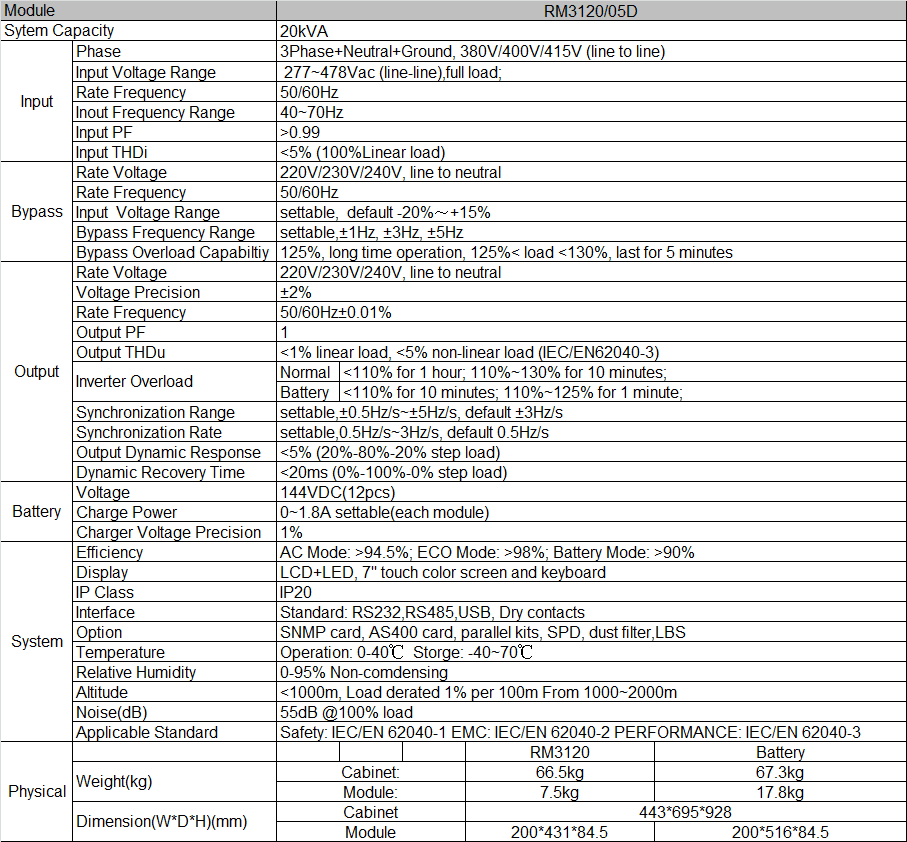

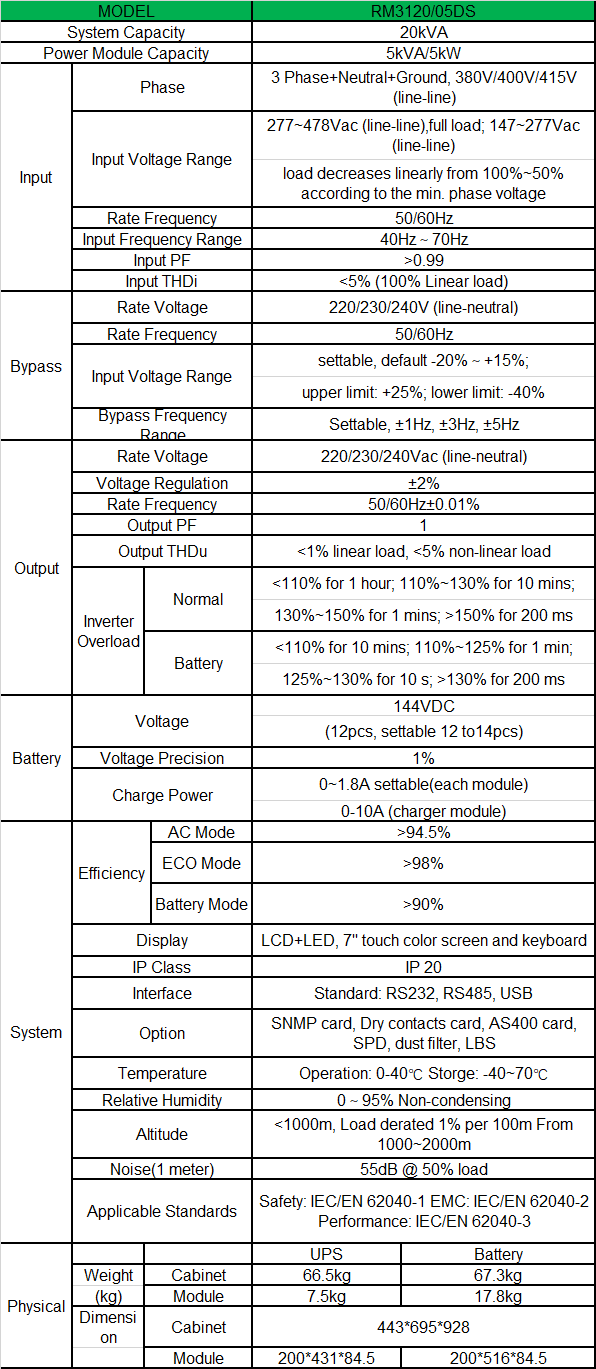

| MODEL | RM3120/05DS | ||
| System Capacity | 20kVA | ||
| Power Module Capacity | 输出电压（V） | ||
| Input | Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | |
| Input Voltage Range | 277~478Vac (line-line),full load; 147~277Vac (line-line) load decreases linearly from 100%~50% according to the min. phase voltage | ||
| Rate Frequency | 50/60Hz | ||
| Input Frequency Range | 40Hz～70Hz | ||
| Input PF | >0.99 | ||
| Input THDi | <5% (100% Linear load) | ||
| Bypass | Rate Voltage | 220/230/240V (line-neutral) | |
| Rate Frequency | 50/60Hz | ||
| Input Voltage Range | settable, default -20%～+15%; upper limit: +25%; lower limit: -40% | ||
| Bypass Frequency Range | settable, default -20%～+15%; upper limit: +25%; lower limit: -40% | ||
| Output | Rate Voltage | 220/230/240Vac (line-neutral) | |
| Voltage Regulation | ±2% | ||
| Rate Frequency | 50/60Hz±0.01% | ||
| Output PF | 1 | ||
| Output THDu | <1% linear load, <5% non-linear load | ||
| Inverter Overload-Normal | <110% for 1 hour; 110%~130% for 10 mins; 130%~150% for 1 mins; >150% for 200 ms | ||
| Inverter Overload-Battery | <110% for 10 mins; 110%~125% for 1 min; 125%~130% for 10 s; >130% for 200 ms | ||
| Battery | Voltage | 144VDC (12pcs, settable 12 to14pcs) | |
| Voltage Precision | 1% | ||
| Charge Power | 0~1.8A settable(each module) 0-10A (charger module) | ||
| System | Display | LCD+LED, 7" touch color screen and keyboard | |
| IP Class | IP 20 | ||
| Interface | Standard: RS232, RS485, USB | ||
| Option | SNMP card, Dry contacts card, AS400 card, SPD, dust filter, LBS | ||
| Temperature | Operation: 0-40℃ Storge: -40~70℃ | ||
| Relative Humidity | <1000m, Load derated 1% per 100m From 1000~2000m | ||
| Altitude | <110% for 10 mins; 110%~125% for 1 min; 125%~130% for 10 s; >130% for 200 ms | ||
| Noise(1 meter) | 55dB @ 50% load | ||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||
| Efficiency-Efficiency- | >94.5% | ||
| Efficiency-ECO Mode | >98% | ||
| Efficiency-Battery Mode | >90% | ||
| UPS | Battery | ||
| Physical-Weight(kg)-Cabinet | 66.5kg | 67.3kg | |
| Physical-Weight(kg)-Module | 7.5kg | 17.8kg | |
| Physical-DimensionW*D*H(mm)-Cabinet | 443*695*928 | 443*695*928 | |
| Physical-DimensionW*D*H(mm)-Module | 200*431*84.5 | 200*516*84.5 | |
Popular Searches:
RM Series Modular Online UPS 5-20kVA (220V/230V/240V)

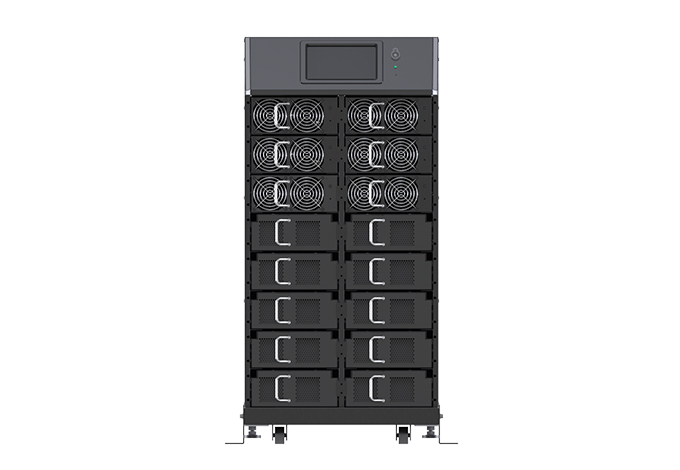

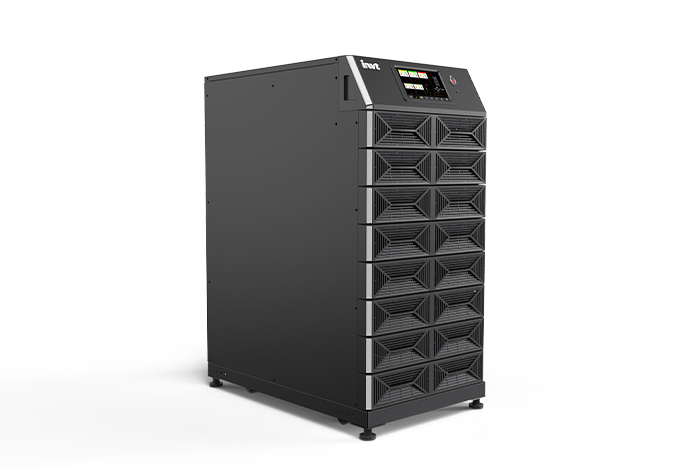

RM3120/05D series is modular online UPS with hot-swappable battery. The single cabinet power is ranging from 5kVA to 20kVA, with its flexible configuration of 3/1 and 1/1, compact structure is the ideal choice for small data center, as well as for sensitive electronics, convenient to be integrated with server. With its high power factor and excellent overload capability, and the improvement of the efficiency of power utilization, it ensures the system operate steadily.
·Rack Modular UPS
·5~20kVA
·Three Phase In, Single Phase Out
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Modular, High-Density Design for Seamless Integration & Scalability

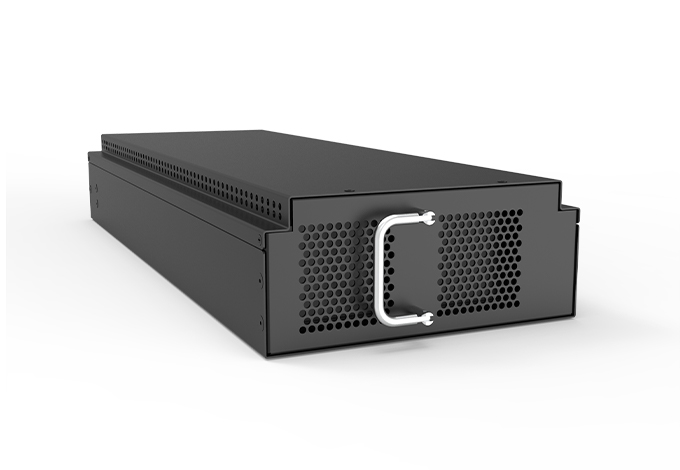

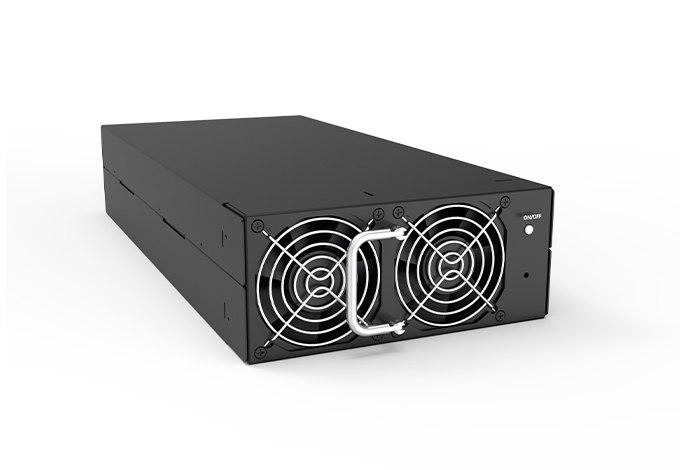

True Rack Modularity:Fully compatible with standard 19" cabinets for easy, space-efficient integration with servers and IT infrastructure, providing a complete solution for small data rooms.Effortless, Flexible Expansion:The system is easy to scale for both power and backup time. It is based on a 5kVA module that can be configured for 3/1 or 1/1 systems without derating, allowing for flexible capacity planning.Maintenance-Friendly Architecture:Features a modular design with hot-swappable power and battery modules, minimizing downtime and simplifying service.01
High-Efficiency Operation with Comprehensive Reliability
Industry-Leading Efficiency:Delivers high operational efficiency of more than 94.5%, reducing energy consumption and total cost of ownership.Intelligent System Protection:Incorporates advanced protection and monitoring technology specifically for the battery package, ensuring safe, reliable, and long-lasting performance.02
