RM Series Modular UPS 25-600kVA (380V/400V/415V)

The RM series modular UPS provides the most compact footprint of less than 2m²with maximum capacity of 900kVA. With the best reliability and high performance, it has been leading the domestic market for years.RM series is considered to be the best power protection solution for large data centers, as well as for sensitive electronics.

·Modular UPS
·25~600kVA
·Three Phase In, Three Phase Out
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
ImagesImages
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
  • RM Series Modular UPS 25-600kVA (380V/400V/415V)
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More

Features

User-Friendly Interaction and Flexibility
Each power module features an independent LCD, offering real-time status and alarm overview.
A graphical and text-based interface provides clear alarms, status data, and instructions for safer, more intuitive operation.
Programmable dry contacts allow easy expansion and customization of port functions to meet specific needs.
01
Reliable Design and Environmental Adaptation
Modular IGBT and SCR components are used in rectifiers and inverters, enhancing overall system reliability.
An isolated airflow design separates PCB and heat sinks into different layers, enabling stable operation in dusty conditions and improving environmental adaptability.
Hot swappble power modules ensure maintainability and reduce downtime.
02
Intelligent Monitoring and Energy Efficiency
Comprehensive real-time monitoring of critical components within each module offers visibility into system health and maintenance reminders.
Critical waveform recording automatically captures key data during faults for in-depth analysis.
Smart Sleep function improves efficiency by idling modules under light loads, reducing power and cooling costs.
Self-aging function allows testing under simulated load conditions without real load, saving over 90% of energy during testing.
03

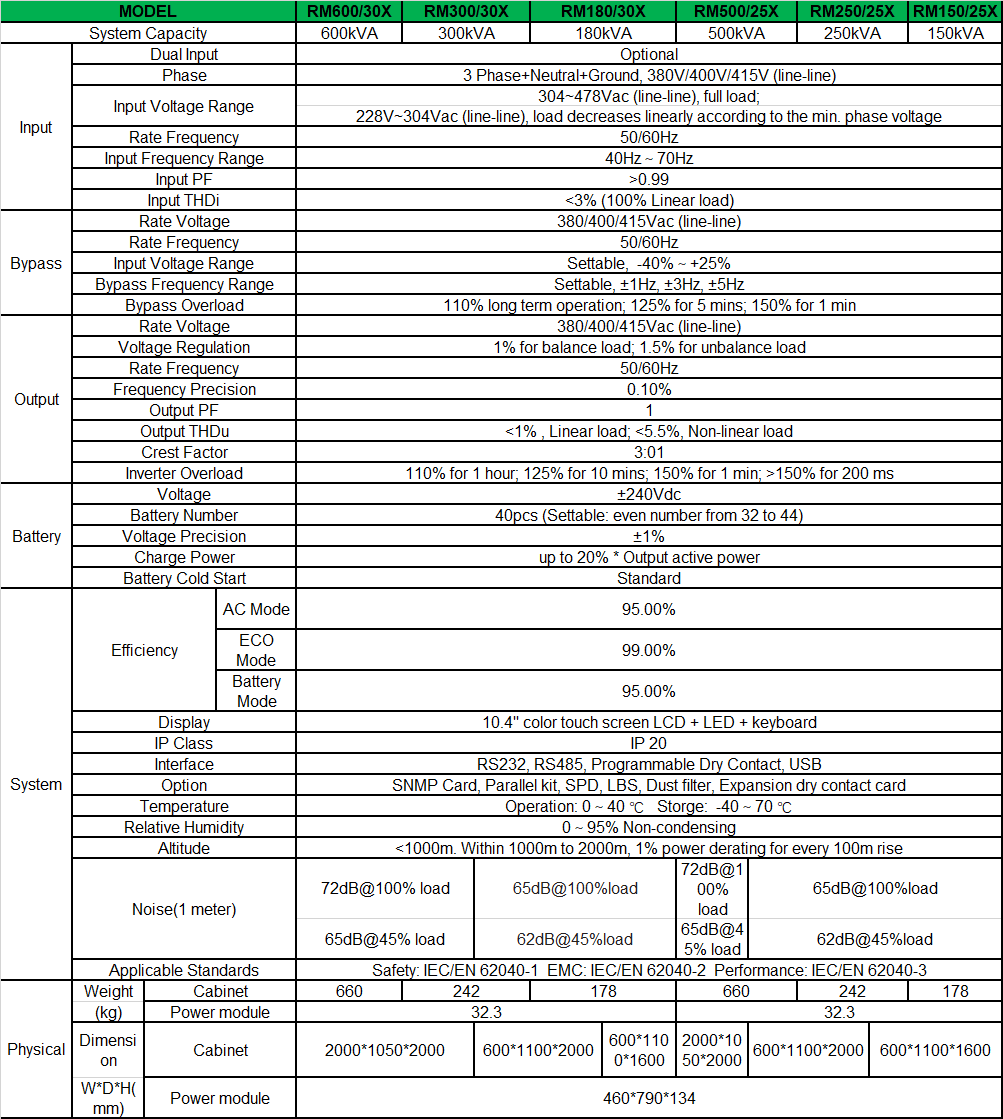

Specifications

MODELRM600/30X RM300/30X RM180/30XRM500/25XRM250/25XRM150/25X
System Capacity 600kVA 300kVA 180kVA500kVA250kVA150kVA
Input Dual InputOptional
Phase3 Phase+Neutral+Ground, 380V/400V/415V (line-line)
Input Voltage Range304~478Vac (line-line), full load; 228V~304Vac (line-line), load decreases linearly according to the min. phase voltage
Rate Frequency50/60Hz
Input Frequency Range40Hz~70Hz
Input PF>0.99
Input THDi<3% (100% Linear load)
Bypass Rate Voltage380/400/415Vac (line-line)
Rate Frequency50/60Hz
Input Voltage RangeSettable, -40%~+25%
Bypass Frequency RangeSettable, ±1Hz, ±3Hz, ±5Hz
Bypass Overload110% long term operation; 125% for 5 mins; 150% for 1 min
Output Rate Voltage380/400/415Vac (line-line)
Voltage Regulation1% for balance load; 1.5% for unbalance load
Rate Frequency50/60Hz
Frequency Precision0.1%
Output PF1
Output THDu<1% , Linear load; <5.5%, Non-linear load
Crest Factor3:1
Inverter Overload110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms
Battery Voltage±240Vdc
Battery Number40pcs (Settable: even number from 32 to 44)
Voltage Precision±1%
Charge Powerup to 20% * Output active power
Battery Cold StartStandard
System EfficiencyAC Mode95.0%
EfficiencyECO Mode99.0%
EfficiencyBattery Mode95.0%
Display10.4" color touch screen LCD + LED + keyboard
IP ClassIP 20
InterfaceRS232, RS485, Programmable Dry Contact
OptionSNMP Card, Parallel kit, SPD, LBS, Dust filter, Expansion dry contact card
TemperatureOperation: 0~40 ℃ Storge: -40~70 ℃
Relative Humidity0~95% Non-condensing
Altitude<1000m. Within 1000m to 2000m, 1% power derating for every 100m rise
Noise(1 meter)72dB@100% load 65dB@45% load65dB@100%load 62dB@45%load72dB@100% load 65dB@45% load65dB@100%load 62dB@45%load
Applicable StandardsSafety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3
Physical-Weight(kg)-Cabinet 660 242 178660242178
Physical-Weight(kg)-Power module 32.332.3
Physical-Dimension W*D*H(mm)-Cabinet 2000*1050*2000 600*1100*2000 600*1100*16002000*1050*2000600*1100*2000600*1100*1600
Physical-Dimension W*D*H(mm)-CabinetPower module 460*790*134
