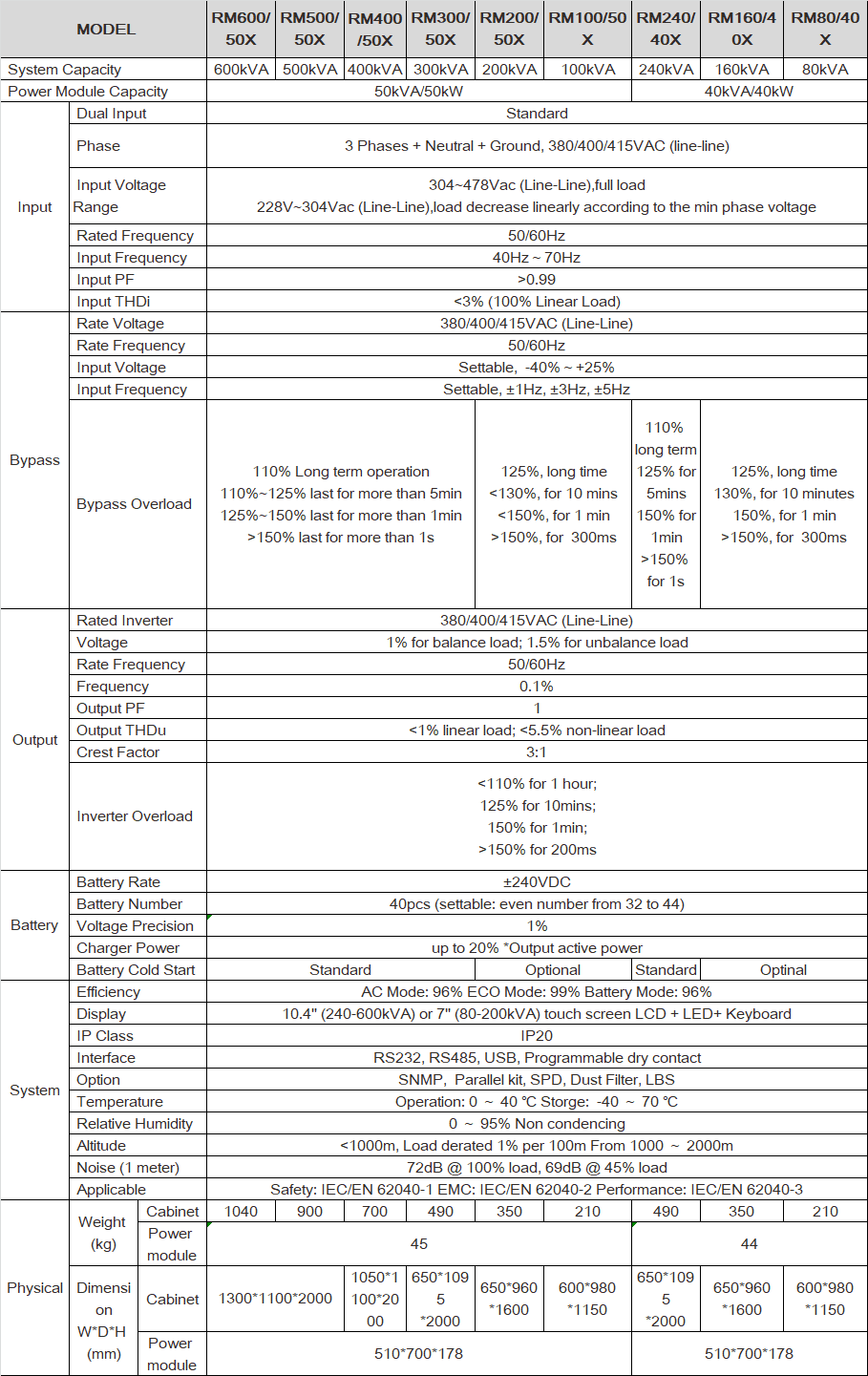

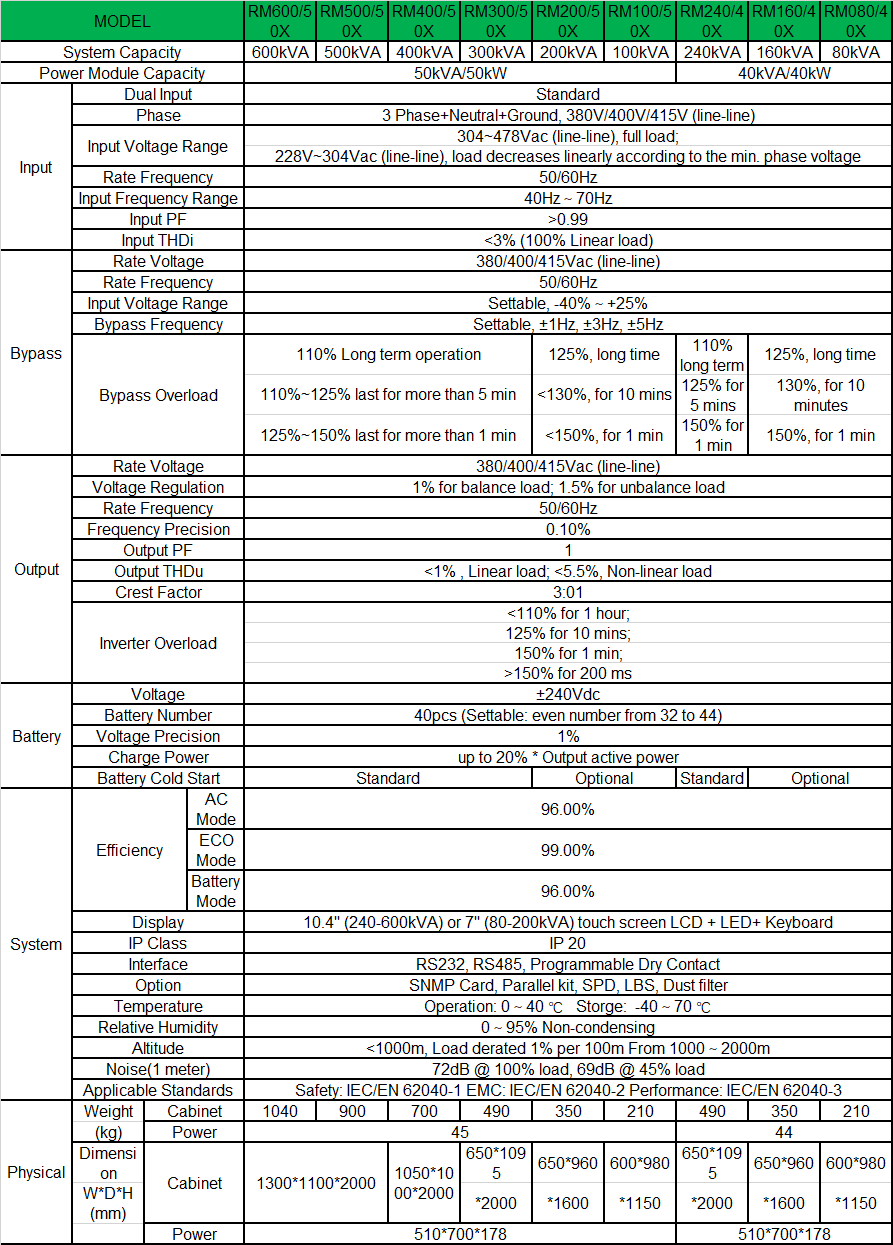

| MODEL | RM600/50X | RM500/50X | RM400/50X | RM300/50X | RM200/50X | RM100/50X | RM240/40X | RM160/40X | RM080/40X |
| System Capacity | 600kVA | 500kVA | 400kVA | 300kVA | 200kVA | 100kVA | 240kVA | 160kVA | 80kVA |
| Power Module Capacity | 50kVA/50kW | 40kVA/40kW | |||||||
| Input-Dual Input | Standard | ||||||||
| Input-Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||||||
| Input-Input Voltage Range | 304~478Vac (line-line), full load; 228V~304Vac (line-line), load decreases linearly according to the min. phase voltage | ||||||||
| Input-Rate Frequency | 50/60Hz | ||||||||
| Input-Input Frequency Range | 40Hz～70Hz | ||||||||
| Input-Input PF | >0.99 | ||||||||
| Input-Input THDi | <3% (100% Linear load) | ||||||||
| Bypass-Rate Voltage | 380/400/415Vac (line-line) | ||||||||
| Bypass-Rate Frequency | 50/60Hz | ||||||||
| Bypass-Input Voltage Range | Settable, -40%～+25% | ||||||||
| Bypass-Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||||||
| Bypass-Bypass Overload | 110% Long term operation 110%~125% last for more than 5 min 125%~150% last for more than 1 min | 125%, long time <130%, for 10 mins <150%, for 1 min | 110% long term 125% for 5 mins 150% for 1 min | 125%, long time 130%, for 10 minutes 150%, for 1 min | |||||
| Output-Rate Voltage | 380/400/415Vac (line-line) | ||||||||
| Output-Voltage Regulation | 1% for balance load; 1.5% for unbalance load | ||||||||
| Output-Rate Frequency | 50/60Hz | ||||||||
| Output-Frequency Precision | 0.1% | ||||||||
| Output-Output PF | 1 | ||||||||
| Output-Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||||||
| Output-Crest Factor | 3:1 | ||||||||
| Output-Inverter Overload | <110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms | ||||||||
| Battery-Voltage | ±240Vdc | ||||||||
| Battery-Battery Number | 40pcs (Settable: even number from 32 to 44) | ||||||||
| Battery-Voltage Precision | 1% | ||||||||
| Battery-Charge Power | up to 20% * Output active power | ||||||||
| Battery-Battery Cold Start | Standard | Optional | Standard | Optional | |||||
| System-Efficiency-AC Mode | 96.0% | ||||||||
| System-Efficiency-ECO Mode | 99.0% | ||||||||
| System-Efficiency-Battery Mode | 96.0% | ||||||||
| System-Display | 10.4" (240-600kVA) or 7" (80-200kVA) touch screen LCD + LED+ Keyboard | ||||||||
| System-IP Class | IP 20 | ||||||||
| System-interface | RS232, RS485, Programmable Dry Contact | ||||||||
| System-Option | SNMP Card, Parallel kit, SPD, LBS, Dust filter | ||||||||
| System-Temperature | Operation: 0～40 ℃ Storge: -40～70 ℃ | ||||||||
| System-Relative Humidity | 0～95% Non-condensing | ||||||||
| System-Altitude | <1000m, Load derated 1% per 100m From 1000～2000m | ||||||||
| System-Noise(1 meter) | 72dB @ 100% load, 69dB @ 45% load | ||||||||
| System-Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||||||
| Physical-Weight(kg)-Cabinet | 1040 | 900 | 700 | 490 | 350 | 210 | 490 | 350 | 210 |
| Physical-Weight(kg)-Power module | 45 | 44 | |||||||
| Physical-Dimension W*D*H (mm)-Cabinet | 1300*1100*2000 | 1050*1000*2000 | 650*1095 *2000 | 650*960 *1600 | 600*980 *1150 | 650*1095 *2000 | 650*960 *1600 | 600*980 *1150 | |
| Physical-Dimension W*D*H (mm)-Power module | 510*700*178 | 510*700*178 | |||||||
Popular Searches:

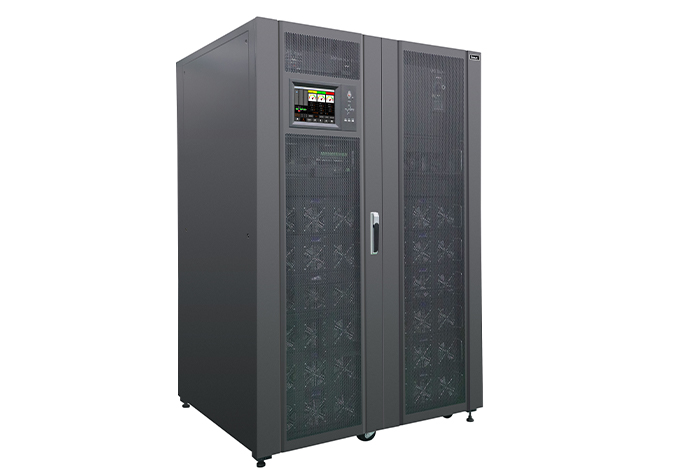

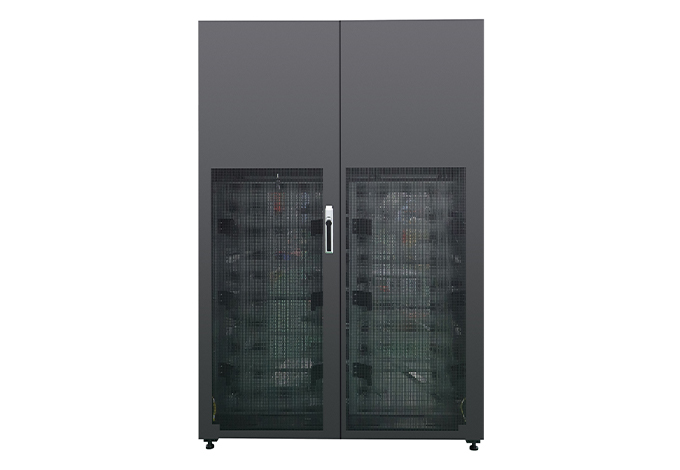

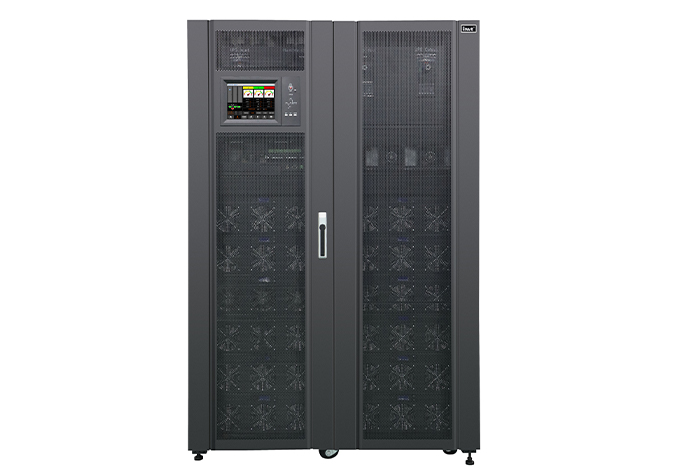

RM Series Modular Online UPS 40-600kVA (380V/400V/415V)
The RM series modular, online UPS ranging from 40kVA to 600kVA is designed to protect any critical load for medium and large data center achieving maximum availability. The RM series features the latest technology of 3-level technology and PFC input control, which guarantees high efficiency of 96% and ultra-reliability. Its compact design ensures power density of 600kVA in one cabinet, 3 units can be paralleled for capacity or redundancy up to 1500kVA, making it an excellent choice for medium and large facilities.
·Modular UPS
·40~600kVA
·Three Phase In, Three Phase Out
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Space-Efficient and Highly Scalable Architecture
Compact, High-Density Design:Achieves 600kVA in a single cabinet with a footprint of less than 1.45m², maximizing valuable floor space. The system uses a 50kVA power module in a 4U height for easy capacity expansion.Massive Power Scalability:Offers seamless scalability from 40kVA to 600kVA within a single cabinet. Supports parallel operation of up to 3 units for a total system capacity of 1500kVA.01
Intelligent Energy Optimization and Reliability
Industry-Leading Efficiency: Incorporates advanced 3-level technology to deliver high efficiency, achieving up to 96% in double conversion mode.Smart Sleep Function:Intelligently manages power modules, shutting down unused ones during low load to increase the load factor on active modules, thereby boosting overall system efficiency.Intelligent Battery Management:Controls the entire charge and discharge cycle to maximize battery lifespan and reliability.02
Intuitive User Experience and Seamless Integration.
Comprehensive Human-Machine Interface (HMI):Features a central 10.4" color touch LCD for graphical system-wide control, complemented by an independent LCD on each power module for localized status monitoring.Extensive Connectivity:Provides a wide array of communication interfaces, including RS232, RS485, USB, SNMP, AS400, and programmable dry contacts, ensuring easy integration into any monitoring or management ecosystem.03
