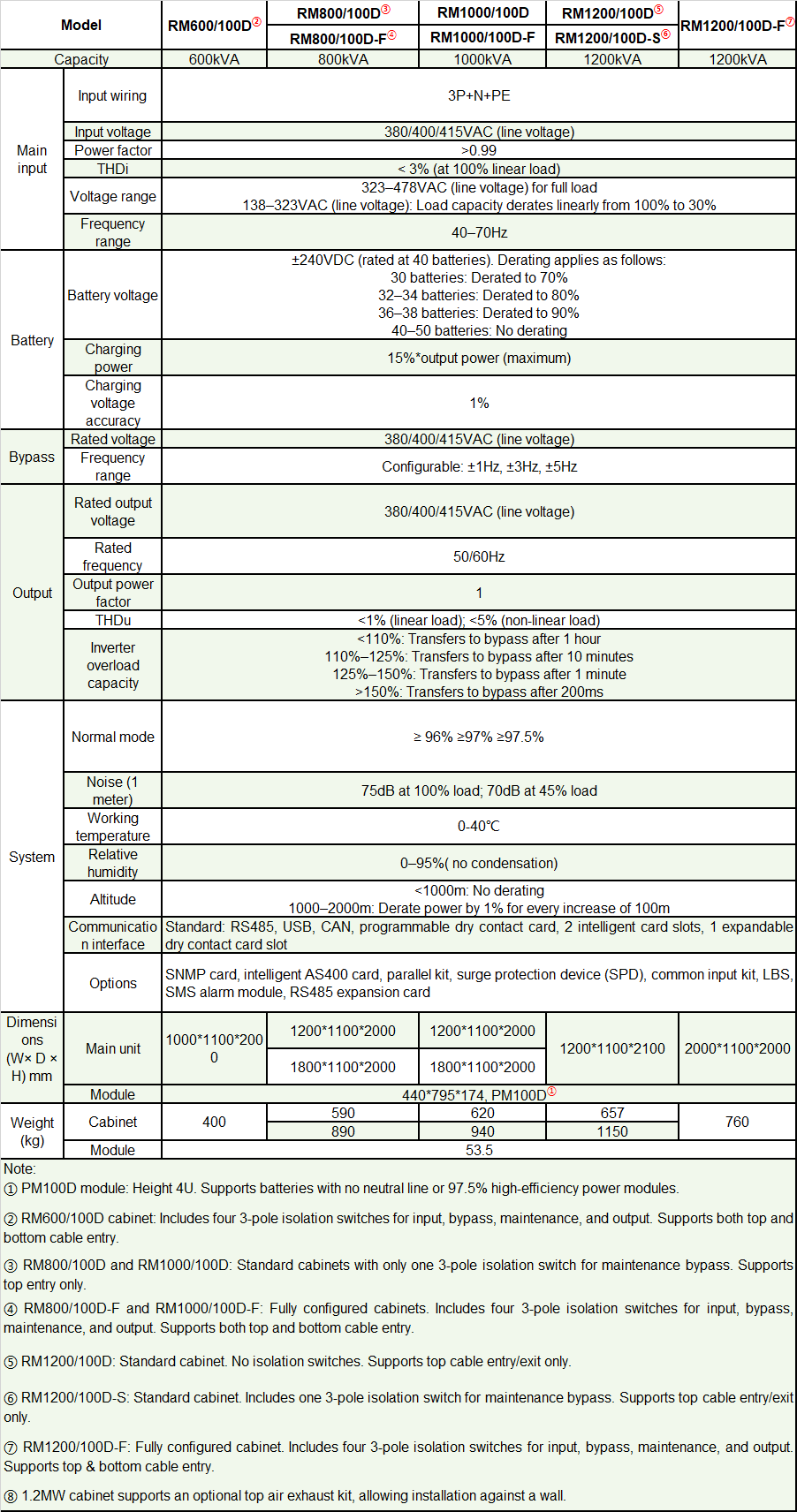

| MODEL | RM600/100D | RM800/100D | RM800/100D-F | RM1200/100D | RM1200/100D-F |
| RM1000/100D | RM1000/100D-F | RM1200/100D-S | RM1200/100D-F | ||
| System Capacity | 600kVA | 800kVA | 800kVA | 1200kVA | 1200kVA |
| 1000kVA | 1000kVA | 1200kVA | 1200kVA | ||
| Power Module Capacity | 100kVA/100kW | ||||
| Input-Dual Input | Standard | ||||
| Input-Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||
| Input-Input Voltage Range | 323~478Vac (line-line), full load; 323V~191Vac (line-line), load decrease linearly from 100%~40%; 191V~138V (line-line), load decrease linearly from 45%~35% according to the min. phase voltage | ||||
| Input-Rate Frequency | 50/60Hz | ||||
| Input-Input Frequency Range | 40Hz～70Hz | ||||
| Input-Input PF | >0.99 | ||||
| Input-Input THDi | <3% (100% Linear load) | ||||
| Bypass-Rate Voltage | 380/400/415VAC (line-line) | ||||
| Bypass-Rate Frequency | 50/60Hz | ||||
| Bypass-Input Voltage Range | Settable, default -20% ~ +15% Up limit: +10%, +15%, +20%, +25% Down limit: -10%, -15%, -20%, -30%, -40% | ||||
| Bypass-Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||
| Bypass-Bypass Overload | 110% long term operation; 110% ~ 125% for 5 mins; 125% ~ 150% for 1 min; 150% ~ 400% for 1 s; >400% less than 200 ms | ||||
| Output-Rate Voltage | 380/400/415VAC (line-line) | ||||
| Output-Voltage Regulation | ±1% | ||||
| Output-Rate Frequency | 50/60Hz | ||||
| Output-Output PF | 1 | ||||
| Output-Output THDu | <1% linear load, <5% non-linear load | ||||
| Output-Inverter Overload | <110% for 1 hour; 110%~125% for 10 mins; 125%~150% for 1 min; >150% for 200 ms | ||||
| Output-Frequency Precision | ± 0.1% | ||||
| Battery-Voltage | ±180 ~ 288VDC 30 ~ 32pcs derate to 0.7 34 ~ 36pcs derate to 0.8 38pcs derate to 0.9 40 ~ 48pcs | ||||
| Battery-Voltage Precision | ±1% | ||||
| Battery-Charge Power | Up to 15% * Output active power | ||||
| System-Efficiency-AC Mode | Up to 96%, 97%, 97.5% | ||||
| System-Efficiency-Battery Mode | >95% | ||||
| System-Display | LED+Color touch LCD | ||||
| System-Interface | RS485, USB, CAN, Programmable Dry Contact, 2 Intelligent slots | ||||
| System-Option | SNMP Card, AS400 Card, Parallel kit, dual input kit, SPD, LBS, GSM | ||||
| System-Temperature | Operation: 0~40 ℃ Storage: -40~70 ℃ | ||||
| System-Relative Humidity | 0~95% Non-condensing | ||||
| System-Altitude | <1000m. Within 1000m~2000m, 1% power derating for every 100m | ||||
| System-Noise(1 meter) | 75dB @ 100% load, 70dB @ 45% load | ||||
| System-Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||
| Physical-Weight(kg)-Cabinet | 400 | 590 | 890 | 657 | 1150 |
| Physical-Weight(kg)-Cabinet | 400 | 620 | 940 | 760 | 1150 |
| Physical-Weight(kg)-Power Module | 53.5 | ||||
| Physical-Dimension W*D*H(mm)-Cabinet | 1000*1100*2000 | 1200*1100*2000 | 1800*1100*2000 | 1200*1100*2100 | 2000*1100*2000 |
| Physical-Dimension W*D*H(mm)-Power Module | 440*795*174 | ||||
Popular Searches:

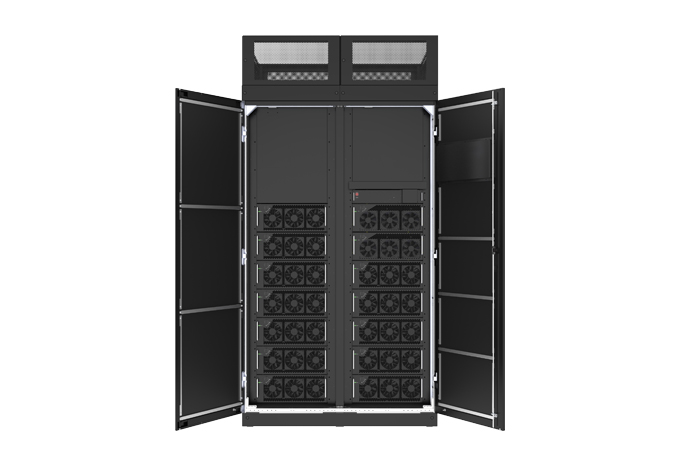

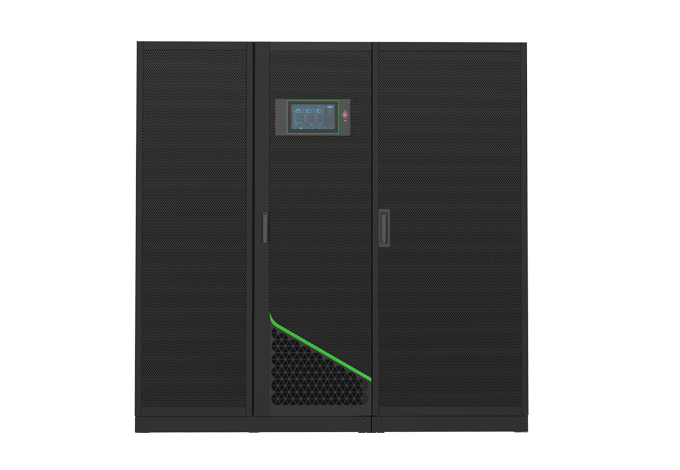

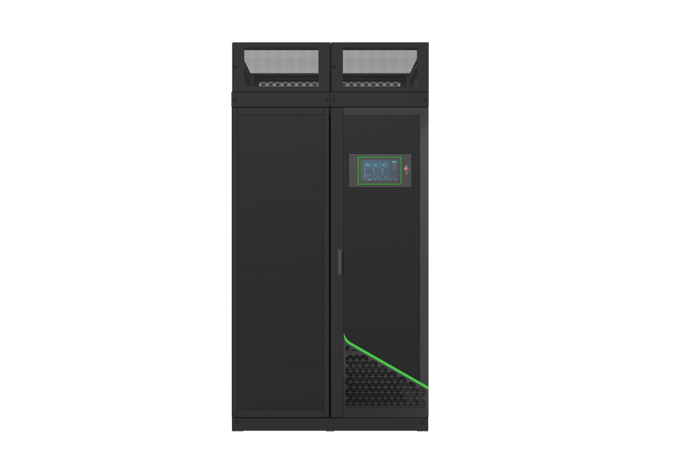

RM Series Modular Online UPS 100-1200kVA (380V/400V/415V)
The RM Series modular online UPS single cabinet power rating covers from 100kVA to 600kVA, provides the highest power density of 100kW modules in 4U height. 4 units can be paralleled for capacity maximum up to 3.2MW. With the latest technology of 3-level technology and PFC input control, the RM series delivers the best combination of reliability, hotswappable function and flexibility.
·Modular UPS
·100~1200kVA
·Three Phase In, Three Phase Out
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Intelligent Efficiency & Flexible Configuration
Industry-Leading Efficiency:Utilizes advanced 3-level technology to achieve high efficiency, up to 96% in double conversion mode.Dynamic Energy Optimization: The Smart Sleep function intelligently manages modules, shutting down unused ones during low load to increase the load factor on active modules, boosting overall system efficiency.Installation Flexibility:Offers a "battery neutral free design" option for the power module, providing customers with a choice to save on installation cabling costs.01
High-Density, Massively Scalable Architecture
High Power Density:Employs a 100kVA power module in a 4U height, optimizing rack space and simplifying capacity expansion.
Massive Power Scalability:The system supports configurations from 100kVA to 3.2MW, with the capability for up to 32 power modules in parallel, meeting the demands of large-scale deployments.02
IoT-Ready User Experience & Connectivity
Intuitive Human-Machine Interface (HMI):Features an ultra-large 10" color touch LCD display, designed for intuitive IoT application interaction, clear information presentation, and easier operation.
Comprehensive Communication Suite:Provides a wide array of interfaces including CAN, RS485, USB, SNMP, AS400, and programmable dry contacts for seamless integration into any monitoring and management ecosystem.03
Specifications
