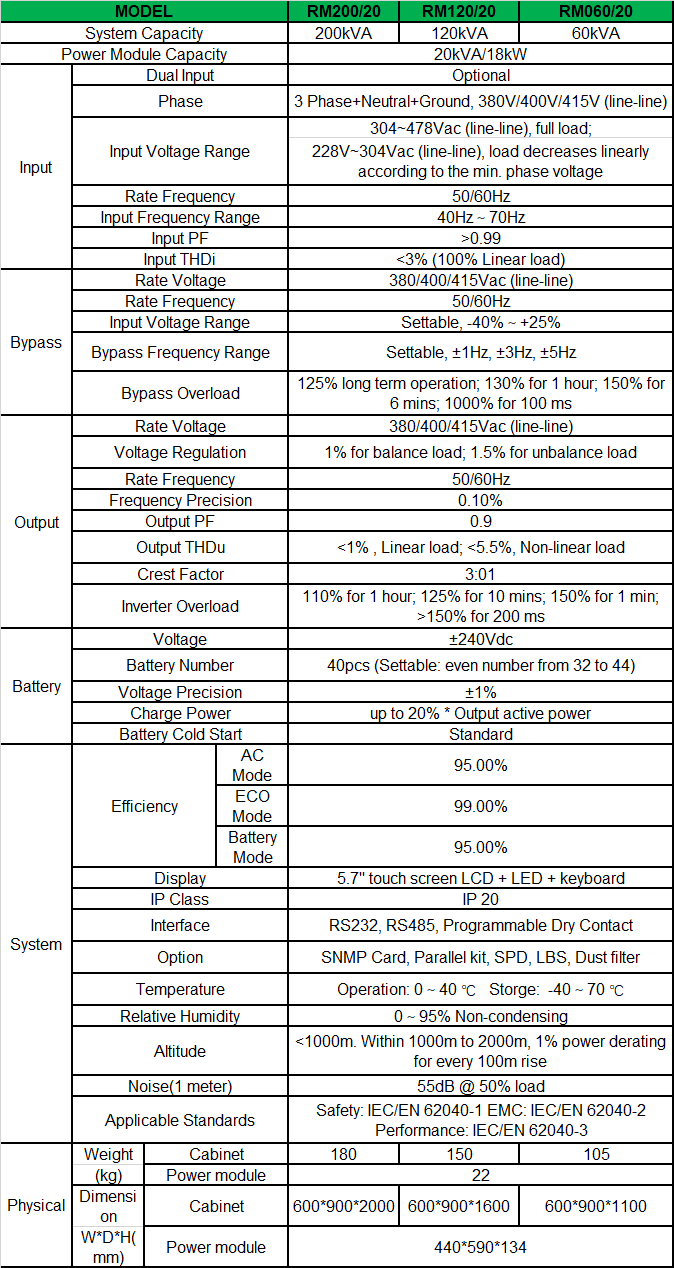

| MODEL | RM200/20 | RM120/20 | RM060/20 | ||||
| System Capacity | 200kVA | 120kVA | 60kVA | ||||
| Power Module Capacity | 20kVA/18kW | ||||||
| Input | Dual Input | Optional | |||||
| Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||||
| Input Voltage Range | 304~478Vac (line-line), full load; 228V~304Vac (line-line), load decreases linearly according to the min. phase voltage | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Input Frequency Range | 40Hz～70Hz | ||||||
| Input PF | >0.99 | ||||||
| Input THDi | <3% (100% Linear load) | ||||||
| Bypass | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Rate Frequency | 50/60Hz | ||||||
| Input Voltage Range | Settable, -40%～+25% | ||||||
| Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||||
| Bypass Overload | 125% long term operation; 130% for 1 hour; 150% for 6 mins; 1000% for 100 ms | ||||||
| Output | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Voltage Regulation | 1% for balance load; 1.5% for unbalance load | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Frequency Precision | 0.1% | ||||||
| Output PF | 0.9 | ||||||
| Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||||
| Crest Factor | 3:1 | ||||||
| Inverter Overload | 110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms | ||||||
| Battery | Voltage | ±240Vdc | |||||
| Battery Number | 40pcs (Settable: even number from 32 to 44) | ||||||
| Voltage Precision | ±1% | ||||||
| Charge Power | up to 20% * Output active power | ||||||
| Battery Cold Start | Standard | ||||||
| System | Efficiency | AC Mode | 95.0% | ||||
| Efficiency | ECO Mode | 99.0% | |||||
| Efficiency | Battery Mode | 95.0% | |||||
| Display | 5.7" touch screen LCD + LED + keyboard | ||||||
| IP Class | IP 20 | ||||||
| Interface | RS232, RS485, Programmable Dry Contact | ||||||
| Option | SNMP Card, Parallel kit, SPD, LBS, Dust filter | ||||||
| Temperature | Operation: 0～40 ℃ Storge: -40～70 ℃ | ||||||
| Relative Humidity | 0～95% Non-condensing | ||||||
| Altitude | <1000m. Within 1000m to 2000m, 1% power derating for every 100m rise | ||||||
| Noise(1 meter) | 55dB @ 50% load | ||||||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||||
| Physical-Weight(kg)-Cabinet | 180 | 150 | 105 | ||||
| Physical-Weight(kg)-Power module | 22 | ||||||
| Physical-Dimension W*D*H(mm)-Cabinet | 600*900*2000 | 600*900*1600 | 600*900*1100 | ||||
| Physical-Dimension W*D*H(mm)-CabinetPower module | 440*590*134 | ||||||
Popular Searches:
RM Series Modular Online UPS 20-200kVA (380V/400V/415V)
RM series is modular online UPS for sensitive equipments. The single cabinet power rating covers from 20kVA to 200kVA.With the latest IGBT three-level and full DSP control technology, the RM series delivers the best of combination of reliability,hot-swappable and flexibility.
·Modular UPS
·20~200kVA
·Isolation air duct
ImagesOverview
Features
Specifications
Downloads
More Resources
客户案例
相关视频
更多支持
Features
Modular, Scalable, and Space-Efficient Architecture
True Modular Design:Supports online parallel operation and hot-swap of up to 20 power modules for N+X redundancy. Also offers a modular version with an integrated isolation transformer (up to 60kVA).High Power Density:Delivers high power output (e.g., 200kVA) in a compact footprint (approx. 0.5m²), maximizing data center space utilization.Integrated & Intelligent Power Stage: Employs integrated IGBT modules within each power unit, reducing failure points and enhancing performance and reliability.01
Enhanced Power Reliability and Protection
Independent Battery Management; Each module features an independent, intelligently controlled charger to optimize the charging process and extend battery life.Uninterrupted Operation: The battery cold-start function allows the UPS to be powered on directly from the battery without utility power.Active System Protection:An independent air channel design isolates cooling airflow from internal PCB, preventing dust accumulation and improving reliability in demanding environments.02
Simplified Deployment and User Experience
Flexible Installation: Supports both top and bottom cable entry options, providing greater convenience for on-site installation and integration.Intuitive User Interface: Features a user-friendly touch LCD display that presents abundant system information for easy monitoring and operation.03
