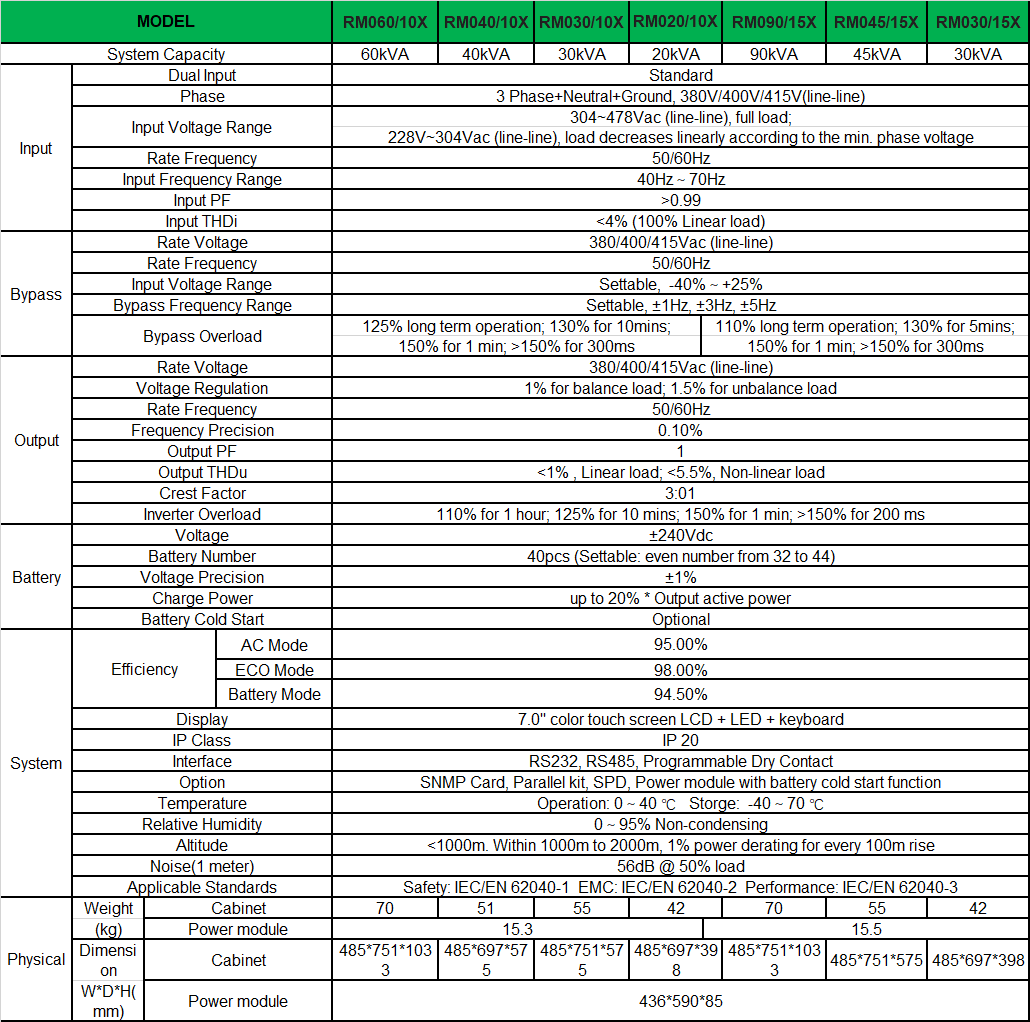

| MODEL | RM060/10X | RM040/10X | RM030/10X | RM020/10X | RM090/15X | RM045/15X | RM030/15X |
| System Capacity | 60kVA | 40kVA | 30kVA | 20kVA | 90kVA | 45kVA | 30kVA |
| Input | Dual Input | Standard | |||||
| Phase | 3 Phase+Neutral+Ground, 380V/400V/415V(line-line) | ||||||
| Input Voltage Range | 304~478Vac (line-line), full load; 228V~304Vac (line-line), load decreases linearly according to the min. phase voltage | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Input Frequency Range | 40Hz～70Hz | ||||||
| Input PF | >0.99 | ||||||
| Input THDi | <4% (100% Linear load) | ||||||
| Bypass | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Rate Frequency | 50/60Hz | ||||||
| Input Voltage Range | Settable, -40%～+25% | ||||||
| Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||||
| Bypass Overload | 125% long term operation; 130% for 10mins; 150% for 1 min; >150% for 300ms | 110% long term operation; 130% for 5mins; 150% for 1 min; >150% for 300ms | |||||
| Output | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Voltage Regulation | 1% for balance load; 1.5% for unbalance load | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Frequency Precision | 0.1% | ||||||
| Output PF | 1 | ||||||
| Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||||
| Crest Factor | 3:1 | ||||||
| Inverter Overload | 110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms | ||||||
| Battery | Voltage | ±240Vdc | |||||
| Battery Number | 40pcs (Settable: even number from 32 to 44) | ||||||
| Voltage Precision | ±1% | ||||||
| Charge Power | up to 20% * Output active power | ||||||
| Battery Cold Start | Optional | ||||||
| System | Efficiency | AC Mode | 95.0% | ||||
| Efficiency | ECO Mode | 98.0% | |||||
| Efficiency | Battery Mode | 94.50% | |||||
| Display | 7.0" color touch screen LCD + LED + keyboard | ||||||
| IP Class | IP 20 | ||||||
| Interface | RS232, RS485, Programmable Dry Contact | ||||||
| Option | SNMP Card, Parallel kit, SPD, Power module with battery cold start function | ||||||
| Temperature | Operation: 0～40 ℃ Storge: -40～70 ℃ | ||||||
| Relative Humidity | 0～95% Non-condensing | ||||||
| Altitude | <1000m. Within 1000m to 2000m, 1% power derating for every 100m rise | ||||||
| Noise(1 meter) | 56dB @ 50% load | ||||||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||||
| Physical-Weight(kg)-Cabinet | 70 | 51 | 55 | 42 | 70 | 55 | 42 |
| Physical-Weight(kg)-Power module | 15.3 | 15.5 | |||||
| Physical-Dimension W*D*H(mm)-Cabinet | 485*751*1033 | 485*697*575 | 485*751*575 | 485*697*398 | 485*751*1033 | 485*751*575 | 485*697*398 |
| Physical-Dimension W*D*H(mm)-CabinetPower module | 436*590*85 | ||||||
Popular Searches:
RM Series Rack-Mounted Modular Online UPS 10-90kVA (380V/400V/415V)
The rack modular, scalable, hot-swappable, online double conversion UPS is ranging from 10 to 90kVA, with its flexible configuration of 3/3, 3/1 and 1/1, compact structure, is the ideal choice for small and medium data center.
·Rack Modular
·10~90kVA
·Three Phase In, Three Phase Out
ImagesOverview
Features
Specifications
Downloads
More Resources
客户案例
相关视频
更多支持
Features
1.Scalable and Space-Efficient Physical Architecture
Rack-Integrated Modular Design: Built with a modular architecture compatible with standard 19" rack cabinets for seamless integration with servers, battery cabinets, PDUs, and bypass units, forming a complete data center power solution.High Power Density: Utilizes compact 10/15kVA power modules in a 2U form factor, saving significant space and simplifying capacity expansion.01
Intelligent Energy and Battery Management
Optimized Battery Lifespan:Features intelligent charging management that controls the entire charge/discharge process to effectively extend battery life.Smart Sleep:Increases overall system efficiency by intelligently shutting down unused power modules to raise the load rate on active ones.Self-Aging Mode:Employs internal energy circulation technology to perform full-load system testing while saving over 90% of the energy typically required.02
Flexible Configuration and Intuitive Operation
Wiring & System Flexibility:Supports flexible system configuration (e.g., 3/3, 3/1, 1/1) based on 10kVA modules without derating, adapting to various power needs.User-Friendly Interface:Equipped with a 7-inch color touch LCD that provides a graphical display for richer information and easier, more intuitive operation and monitoring.03
