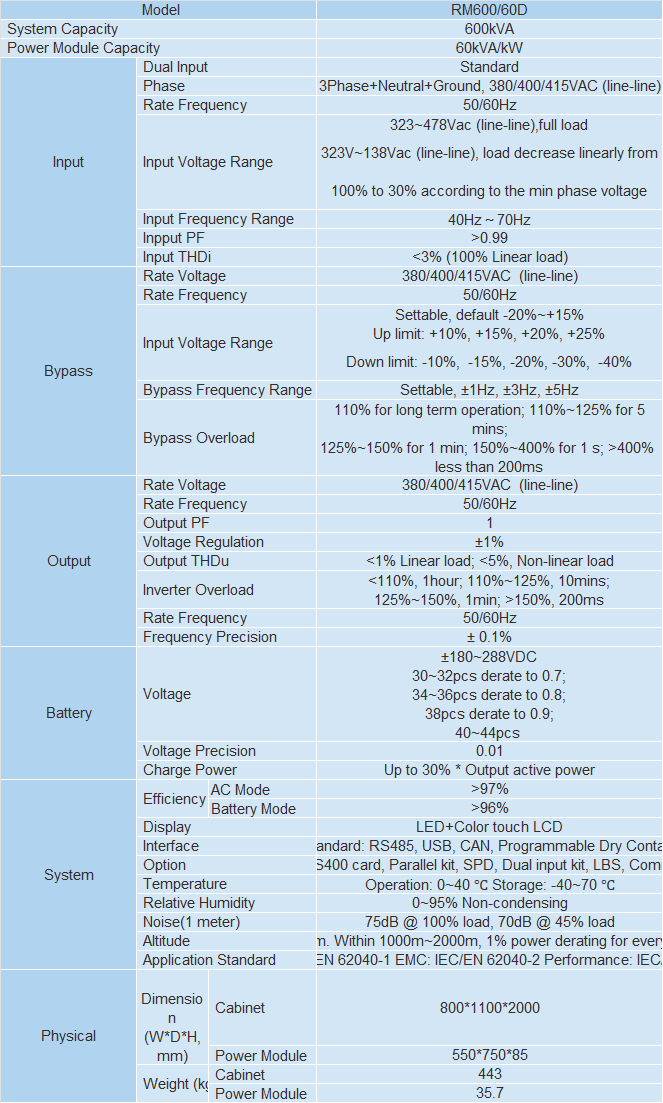

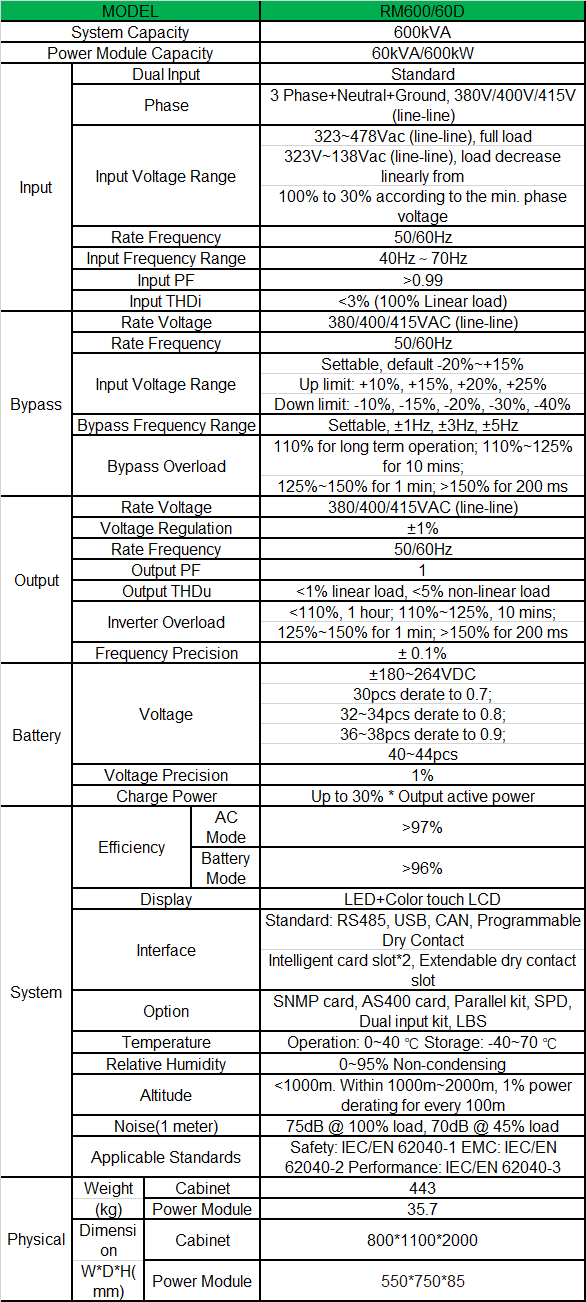

| MODEL | RM600/60D | ||||||
| System Capacity | 600kVA | ||||||
| Power Module Capacity | 60kVA/60kW | ||||||
| Input | Dual Input | Standard | |||||
| Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||||
| Input Voltage Range | 323~478Vac (line-line), full load 323V~138Vac (line-line), load decrease linearly from 100% to 30% according to the min. phase voltage | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Input Frequency Range | 40Hz～70Hz | ||||||
| Input PF | >0.99 | ||||||
| Input THDi | <3% (100% Linear load) | ||||||
| Bypass | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Rate Frequency | 50/60Hz | ||||||
| Input Voltage Range | Settable, default -20%~+15% Up limit: +10%, +15%, +20%, +25% Down limit: -10%, -15%, -20%, -30%, -40% | ||||||
| Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||||
| Bypass Overload | 110% for long term operation; 110%~125% for 10 mins; 125%~150% for 1 min; >150% for 200 ms | ||||||
| Output | Rate Voltage | 380/400/415Vac (line-line) | |||||
| Voltage Regulation | ±1% | ||||||
| Rate Frequency | 50/60Hz | ||||||
| Output PF | 1 | ||||||
| Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||||
| Crest Factor | 3:1 | ||||||
| Inverter Overload | <110%, 1 hour; 110%~125%, 10 mins; 125%~150% for 1 min; >150% for 200 ms | ||||||
| Frequency Precision | ± 0.1% | ||||||
| Battery | Voltage | ±180~264VDC 30pcs derate to 0.7; 32~34pcs derate to 0.8; 36~38pcs derate to 0.9; 40~44pcs | |||||
| Battery Number | 40~44pcs | ||||||
| Voltage Precision | ±1% | ||||||
| Charge Power | Up to 30% * Output active power | ||||||
| Battery Cold Start | Standard | ||||||
| System | Efficiency | AC Mode | >97% | ||||
| Efficiency | ECO Mode | >96% | |||||
| Display | LED+Color touch LCD | ||||||
| Interface | Standard: RS485, USB, CAN, Programmable Dry Contact Intelligent card slot*2, Extendable dry contact slot | ||||||
| Option | SNMP card, AS400 card, Parallel kit, SPD, Dual input kit, LBS | ||||||
| Temperature | Operation: 0～40 ℃ Storge: -40～70 ℃ | ||||||
| Relative Humidity | 0～95% Non-condensing | ||||||
| Altitude | <1000m. Within 1000m to 2000m, 1% power derating for every 100m rise | ||||||
| Noise(1 meter) | 75dB @ 100% load, 70dB @ 45% load | ||||||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||||
| Physical-Weight(kg)-Cabinet | 443 | ||||||
| Physical-Weight(kg)-Power module | 35.7 | ||||||
| Physical-Dimension W*D*H(mm)-Cabinet | 800*1100*2000 | ||||||
| Physical-Dimension W*D*H(mm)-Power module | 550*750*85 | ||||||
Popular Searches:
RM Series Modular Online UPS 60-600kVA (380V/400V/415V)
RM600/60D series are modular online UPS with brand-new topology, a bidirectional DC-DC converter circuit, which greatly improve the system performance and guarantees high efficiency of 97%. Its compact design ensures the power density, achieving this 600kW system`s occupation only an area of 0.9m2. RM series is considered to be an excellent power supply solution for large data centers and facilities.
·Modular UPS
·60~600kVA
·Three Phase In, Three Phase Out
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Advanced Power Architecture & Ultra-Compact Design
Staggered & Combined Power Supply:Employs a unique topology where utility and battery power supply the load concurrently, with automatic compensation ratio calculation for optimized efficiency and transient response.Exceptional Power Density:Delivers 600kVA in a single cabinet with a footprint of less than 0.88m², offering extreme space savings. The system utilizes a 60kVA power module in a compact 2U height for straightforward capacity expansion.01
Intelligent Energy & Battery Management
High-Performance Charging System:Features intelligent charging management with a bidirectional DC-DC topology, controlling the entire charge/discharge cycle and supporting a high charging power of up to 30%.Smart Energy Optimization:The smart sleep function intelligently shuts down idle power modules under light loads, increasing the load rate on active modules to achieve higher overall system efficiency.02
Unmatched Scalability with Proactive User Interface
Massive Power Scalability:The system is highly scalable, configurable from 60kVA to 1.8MW, supporting a parallel configuration of up to 30 power modules across 3 cabinets.IoT-Ready HMI & Connectivity:Equipped with an ultra-large 10" color touch LCD for IoT applications, capable of storing up to 2000 historical logs. Offers extensive communication interfaces including CAN, RS485, USB, SNMP, AS400, and programmable dry contacts for seamless integration.03
