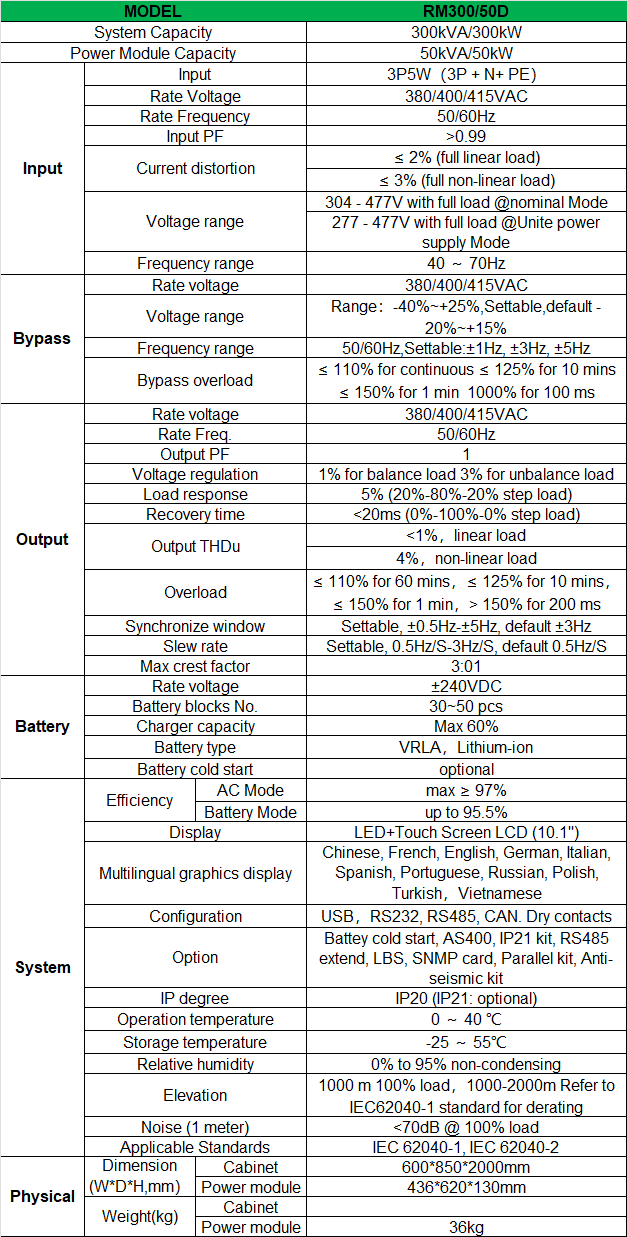

MODEL | RM200/50D | RM300/50D | |||
System Capacity | 200kVA/200kW | 300kVA/300kW | |||
Power Module Capacity | 50kVA/50kW | ||||
Input | Dual Input | Optional | |||
Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||
Input Voltage Range | 304~478Vac (line-line), full load 304V~190Vac (line-line), load decrease linearly from 100% to 50% according to the min. phase voltage | ||||
Rate Frequency | 50/60Hz | ||||
Input Frequency Range | 40Hz～70Hz | ||||
Input PF | >0.99 | ||||
Input THDi | THDi ≤ 2% (full linear load) THDi ≤ 3% (full non-linear load) | ||||
Bypass | Rate Voltage | 380/400/415VAC (line-line) | |||
Rate Frequency | 50/60Hz | ||||
Input Voltage Range | Settable, default -20%~+15% Up limit: +10%, +15%, +20%, +25% Down limit: -10%, -15%, -20%, -30%, -40% | ||||
Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||
Bypass Overload | 100%, continuous 100%< load <110%, last for more than 60 minutes 110% 125% >150%, last for more than 200ms | ||||
Output | Rate Voltage | 380/400/415VAC (line-line) | |||
Voltage Regulation | ±1% | ||||
Rate Frequency | 50/60Hz | ||||
Output PF | 1 | ||||
Output THDu | <1% linear load, 45% non-linear load | ||||
Inverter Overload | 100%, continuous 100%< load <110%, last for more than 60 minutes 110% 125% >150%, last for more than 200ms | ||||
Frequency Precision | ± 0.1% | ||||
Battery | Voltage | ±240VDC (adjustable from ±180VDC to ±300VDC) For example: Supports 30-50 pcs 30 pcs: derating 0.9 32-50 pcs: no derating | |||
Voltage Precision | 1% | ||||
Charge Power | max=60% *Output power | ||||
System | Efficiency | AC Mode | Up to 97% | ||
Battery Mode | Up to 95% | ||||
Display | LED+Color touch LCD | ||||
Interface | RS232, RS485, USB,Programmable dry contact | ||||
Option | SNMP Card,AS400 Card,parallel kit,Lightning protection components,LBS,Bypass fuse,top exhaust kit,Main & Bypass Common Source Kit,Super ECO Kit,Disconnecting Switch Assembly | ||||
Temperature | Operation: 0~40 ℃ Storage: -40~70 ℃ | ||||
Relative Humidity | 0~95% Non-condensing | ||||
Altitude | <1000m. Within 1000m~2000m, 1% power derating for every 100m | ||||
Noise(1 meter) | 75dB @ 100% load, 65dB @ 45% load | ||||
Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||
Physical | Weight (kg) | Cabinet | 220.5 | ||
Power Module | 32 | ||||
Dimension W*D*H(mm) | Cabinet | 600*850*2000 | |||
Power Module | 440*620*130 | ||||
Popular Searches:

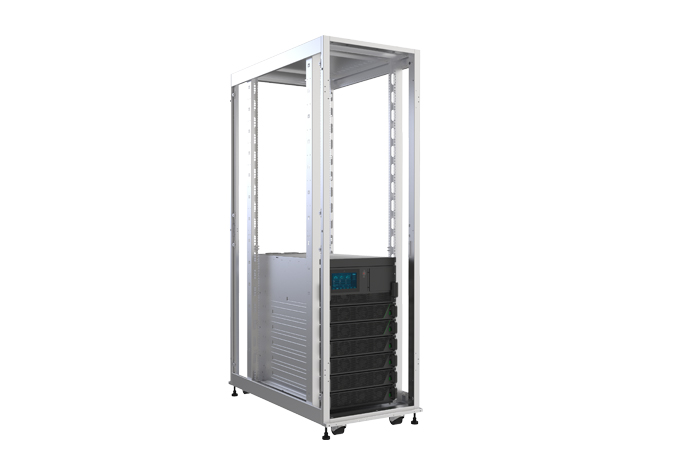

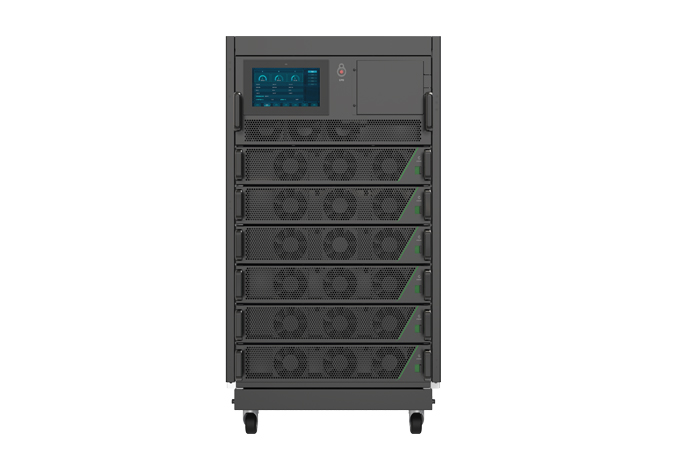

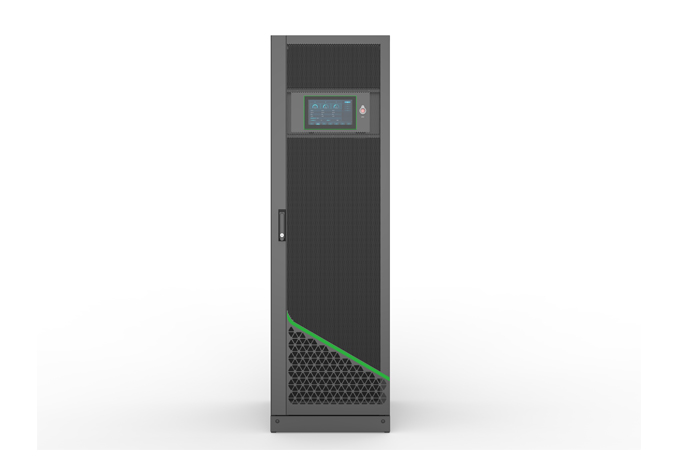

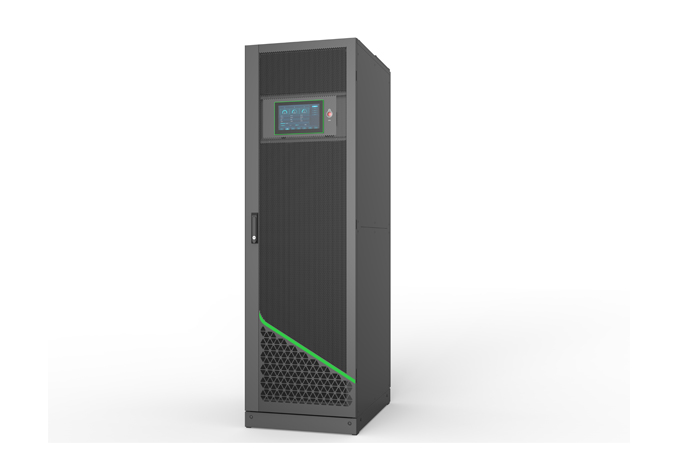

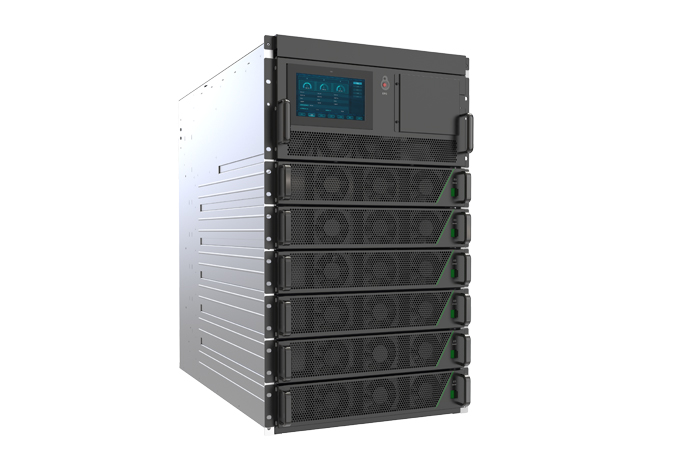

RM Series Modular Online UPS 50-300kVA (380V/400V/415V)
The RM series modular, online double conversion UPS ranging from 50kVA to 300kVA is designed to protect any critical load for medium and small data center achieving maximum availability. The RM series features the latest technology of 3-level technology and PFC input control, which guarantees high efficiency @97% and ultra-reliability.
·Modular UPS
·50~300kVA
·Three Phase In, Three Phase Out
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Exceptional Efficiency & Power Density
Achieves industry-leading efficiency with double conversion up to 97% and Super ECO mode exceeding 99%.Delivers high power density, with a 300kVA system occupying only 0.5m², and features an ultra-compact cabinet depth of 850mm for seamless integration.01
Intelligent Power Management & Flexibility
Supports advanced functions like peak shaving and combined battery & grid power supply for optimal energy use.Offers a wide battery configuration range (±15 to ±25 batteries) and high-capacity charging (up to 60% of rated power) for extended backup time.Features a "battery two-wire" connection (no neutral), simplifying installation and design02
User-Centric Design for Easy Deployment
Equipped with a user-friendly 10.1-inch touch display for intuitive control and monitoring.Designed for easy integration, supporting connectivity with third-party monitoring software.Offers flexible installation options, including optional seismic resistance (Level 9) and a supported against-the-wall configuration with an upper-exhaust component.03
