| MODEL | RM120/30D | RM180/30D | |
| Power Rating | 120kVA/120kW | 180kVA/180kW | |
| Main input-Input | 3P5W（3P + N+ PE） | ||
| Main input-Rate Voltage | 380/400/415VAC (L-L); 220/230/240VAC （L-N） | ||
| Main input-Rate Frequency | 50/60Hz | ||
| Main input-Input PF | >0.99 @ load ≥25% | ||
| Main input-Current distortion | THDi <3% （100% non-liner load ） | ||
| Main input-Voltage range | 304V~478Vac (L-L),full load; 228V~304Vac(L-L), derate from 75% to 100% load | ||
| Main input-Frequency range | 40～70Hz | ||
| Battery | Rate voltage | ±192VDC~±240VDC | |
| Battery blocks No. | 30~50（30, derate load, 32-50 full load） | ||
| Charger capacity | up to 30% *Output power | ||
| Charger accuracy | ±1% | ||
| Battery type | VRLA or Lithium Battery | ||
| Battery cold start | Yes | ||
| Bypass | Rate Voltage | 380/400/415VAC (L-L); 220/230/240VAC （L-N） | |
| Voltage range | Range：-40%~+25%,Settable,default -20%~+15% | ||
| Frequency range | 50/60Hz,Settable:±1Hz, ±3Hz, ±5Hz | ||
| Bypass overload | 110%, Long time; 125%,10mins; 150%,1min; >150%,200ms | ||
| Output | Rate Voltage | 380/400/415VAC (L-L); 220/230/240VAC （L-N） | |
| Rate Freq. | 50/60Hz | ||
| Output PF | 1 | ||
| Voltage regulation | ±1.0% | ||
| Load response | <5% (20%-80%-20% step load) | ||
| Recovery time | <20ms (0%-100%-0% step load) | ||
| Output THDu | <1% (from 0% to 100% linear load) <4% (full non-linear load according to IEC/EN62040-3) | ||
| Overload | ≤110% for 1h ≤125% for 10 mins ≤150% for 1 min ＞150% for 200 ms | ||
| Frequency accuracy | ±0.1% free running | ||
| Synchronize window | Settable, ±0.5Hz-±5Hz, default ±3Hz | ||
| Slew rate | Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S | ||
| Max crest factor | 3:1 | ||
| Phase Accuracy | 120°±0.5° | ||
| System | Efficiency-AC Mode | Up to 96.5% | |
| Efficiency-Battery Mode | Up to 96% | ||
| Efficiency-ECO mode | Up to 99% | ||
| Display | LED+Touch Screen LCD (7") | ||
| Configuration | USB, RS485, CAN, Parallel ports , Dry contacts, Battery cold-start; | ||
| Option | SNMP card, AS400 card, RS485 card, LBS, Parallel cable, Battery NTC | ||
| IP degree | IP20 | ||
| Operation temperature | 0 ～ 40 ℃ | ||
| Storage temperature | -25 ～ 55℃ | ||
| Relative humidity | 0 ～ 95% Non condencing | ||
| Dust | Supports dusty environments;Pollution degree 2 (IEC 62040) | ||
| Elevation | ≤1000 m; 1000m~ 2000 m with derating as 1% per 100 m | ||
| Noise (1 meter) | <60dB @ 50% load, <70dB @ 100% load | ||
| Safety requirements | IEC 62040-1 | ||
| EMC requirements | IEC 62040-2 | ||
| Dimension W*D*H（m）-Cabinet | 485*850*625（14U,wheels not included） | 485*850*797（18U,wheels not included） | |
| Dimension W*D*H（m）-Module | 438*620*86（2U） | ||
| Weight（kg）-Cabinet | 160kg | 200kg | |
| Weight（kg）-Module | 19.1kg | ||
Popular Searches:

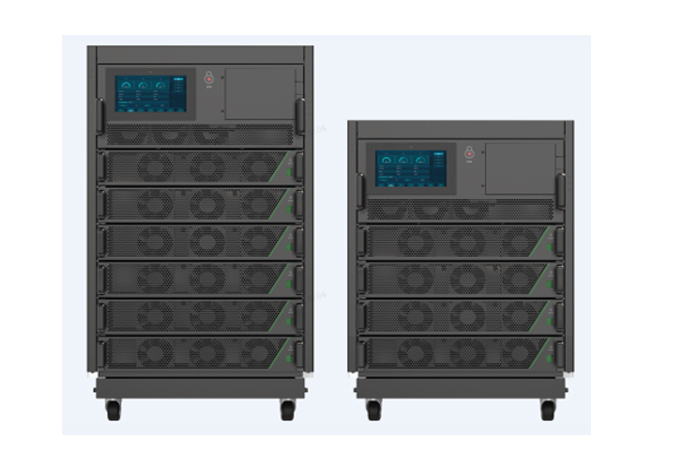

RM Series Modular Online UPS 30-180kVA (380V/400V/415V)
The RM series rack modular, scalable, hot-swappable, online double conversion UPS ranging from 30kVA to 300kVA is designed to protect any critical load for medium and small data center achieving maximum availability. The RM series features the latest technology of 3-level technology and PFC input control, which guarantees high efficiency >96.5% and ultra-reliability, is the best choice for small and medium data center.
·Modular UPS
·30~180kVA
·Three Phase In, Three Phase Out
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Energy Efficiency and Grid Protection
Input current harmonic distortion ≤3% (at nonlinear full load), minimizing grid pollution, reducing harmonic mitigation costs, lowering cable losses, and providing bidirectional protection for both load and grid.Input power factor >0.99, improving power utilization, reducing upstream distribution losses, and lowering customer investment costs.01
Outstanding Performance
System efficiency up to 96.5%, reducing operational energy consumption by 30% compared to the previous generation, significantly lowering customer operating costs.Output power factor of 1.0, enabling higher load capacity and greater active power output at the same rated power. This provides higher cost-effectiveness, lowers system investment costs, and meets application demands for high-output power factor.02
Cost-Effective and User-Friendly

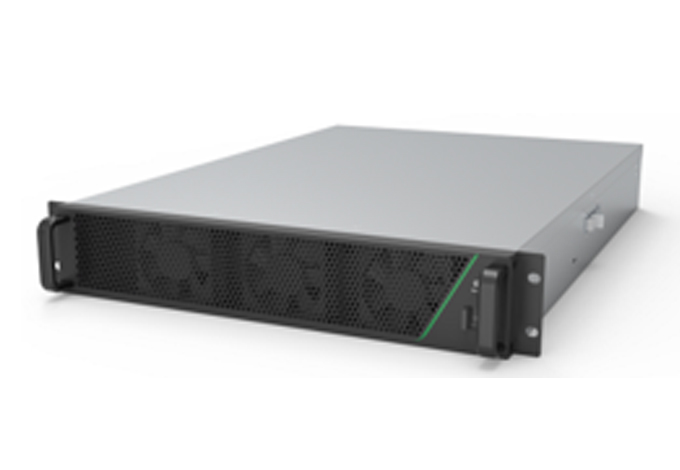

The RM180/30D reduces physical volume by 67% and height by 50% compared to the previous generation, offering flexible installation options including floor-standing and server rack mounting.Single module height of 2U and weight <20 kg, representing a 33% reduction in height and 40% reduction in weight versus the previous generation, enabling convenient single-person installation and maintenance.Built-in black-box recording function logs rectifier/inverter anomaly data, enabling quick fault localization and significantly improving operational efficiency.Battery configuration supports ±15 to ±25 battery cells, allowing flexible cell count setup per requirement. A single faulty battery can be replaced without changing the entire battery bank, reducing long-term maintenance costs.Charging power up to 30% of the output power supports high-current charging, shortening charging time and enhancing compatibility with lithium battery applications.03
Specifications

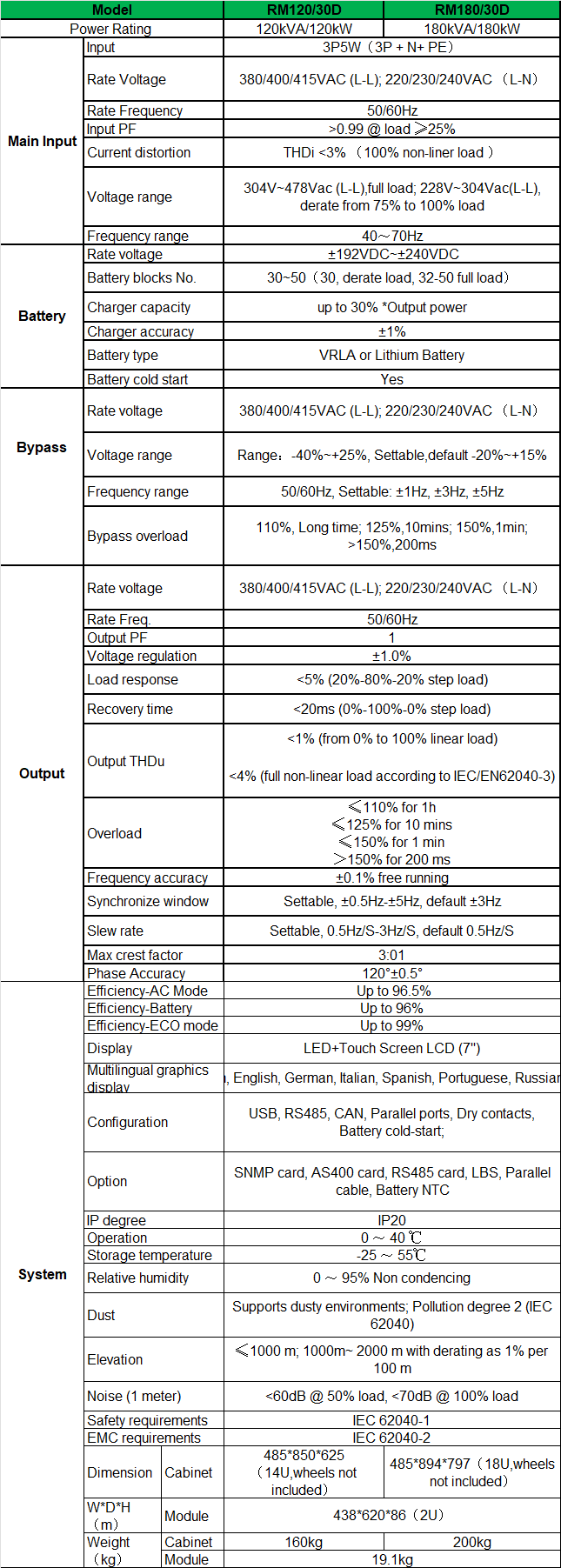

Specifications
| Model | RM120/30D | RM180/30D | |
| Power Rating | 120kVA/120kW | 180kVA/180kW | |
| Main input | Input | 3P5W（3P + N+ PE） | |
| Rate Voltage | 380/400/415VAC (L-L); 220/230/240VAC （L-N） | ||
| Rate Frequency | 50/60Hz | ||
| Input PF | >0.99 @ load ≥25% | ||
| Current distortion | THDi <3% （100% non-liner load ） | ||
| Voltage range | 304V~478Vac (L-L),full load; 228V~304Vac(L-L), derate from 75% to 100% load | ||
| Frequency range | 40～70Hz | ||
| Battery | Rate voltage | ±192VDC~±240VDC | |
| Battery blocks No. | 30~50（30, derate load, 32-50 full load） | ||
| Charger capacity | up to 30% *Output power | ||
| Charger accuracy | ±1% | ||
| Battery type | VRLA or Lithium Battery | ||
| Battery cold start | Yes | ||
| Bypass | Rate voltage | 380/400/415VAC (L-L); 220/230/240VAC （L-N） | |
| Voltage range | Range：-40%~+25%,Settable,default -20%~+15% | ||
| Frequency range | 50/60Hz,Settable:±1Hz, ±3Hz, ±5Hz | ||
| Bypass overload | 110%, Long time; 125%,10mins; 150%,1min; >150%,200ms | ||
| Output | Rate voltage | 380/400/415VAC (L-L); 220/230/240VAC （L-N） | |
| Rate Freq. | 50/60Hz | ||
| Output PF | 1 | ||
| Voltage regulation | ±1.0% | ||
| Load response | <5% (20%-80%-20% step load) | ||
| Recovery time | <20ms (0%-100%-0% step load) | ||
| Output THDu | <1% (from 0% to 100% linear load) <4% (full non-linear load according to IEC/EN62040-3) | ||
| Overload | ≤110% for 1h ≤125% for 10 mins ≤150% for 1 min ＞150% for 200 ms | ||
| Frequency accuracy | ±0.1% free running | ||
| Synchronize window | Settable, ±0.5Hz-±5Hz, default ±3Hz | ||
| Slew rate | Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S | ||
| Max crest factor | 3:1 | ||
| Phase Accuracy | 120°±0.5° | ||
| System | Efficiency-AC Mode | Up to 96.5% | |
| Efficiency-Battery Mode | Up to 96% | ||
| Efficiency-ECO mode | Up to 99% | ||
| Display | LED+Touch Screen LCD (7") | ||
| Multilingual graphics display | Chinese, French, English, German, Italian, Spanish, Portuguese, Russian, Polish, Turkish | ||
| Configuration | USB, RS485, CAN, Parallel ports , Dry contacts, Battery cold-start; | ||
| Option | SNMP card, AS400 card, RS485 card, LBS, Parallel cable, Battery NTC | ||
| IP degree | IP20 | ||
| Operation temperature | 0 ～ 40 ℃ | ||
| Storage temperature | -25 ～ 55℃ | ||
| Relative humidity | 0 ～ 95% Non condencing | ||
| Dust | Supports dusty environments;Pollution degree 2 (IEC 62040) | ||
| Elevation | ≤1000 m; 1000m~ 2000 m with derating as 1% per 100 m | ||
| Noise (1 meter) | <60dB @ 50% load, <70dB @ 100% load | ||
| Safety requirements | IEC 62040-1 | ||
| EMC requirements | IEC 62040-2 | ||
| Dimension W*D*H（m） | Cabinet | 485*850*625（14U,wheels not included） | 485*850*797（18U,wheels not included） |
| Module | 438*620*86（2U） | ||
| Weight（kg） | Cabinet | 160kg | 200kg |
| Module | 19.1kg |
