Abstract: Auger filling machine is used in packaging liquid/powder products across various industries including pharmaceutical, chemicals, metal, plastic, agriculture, and food production. This paper introduces INVT products IVC1L PLC, VS07 HMI, and DA200 servo drives used for auger filling machines with benefits of high accuracy, high efficiency, and high return on investment.
Keywords: INVT, PLC HMI Servo, Auger Filler
I. Introduction
In automatic auger filling machines, a power conveyor system queues the sachets to be filled. The product is fed to the screw using the hopper. These fillers are volumetric and do not weigh the products during each cycle. The entire process includes plastic pulling, wrapping, filling, and sealing. The system sequence is fully controlled by timing-based systems, with individual Off Delay and ON time settings. Sachet filling is determined by master drive speed and analog output, which can be varied in slave devices.
II. Project Information and Solution
1. Project Information: Auger Filling Machine
2. INVT Solution:
S.N | Product | Qty | Remark |
---|---|---|---|
1 | IVC1L | 1 | Controller |
2 | DA200-1R0-4 | 1 | High accuracy driving |
3 | VS07-QE | 1 | Display and controller |

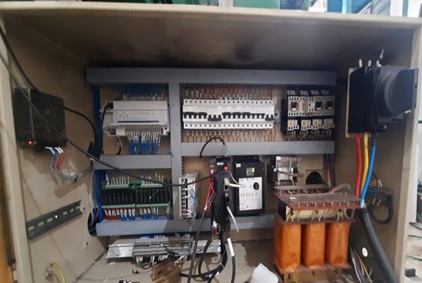

3. System Configuration
4. System Features:
This system is controlled by the VS-07QE HMI (master), with PLC and servo as slaves. All settings—such as master drive speed and slave drive activation timings—can be adjusted via HMI, providing great convenience.
III. Advantages and Benefits
High-speed sachet production monitoring.
Improved labor productivity—packaging is much faster than manual operations.
Consistent and reliable packaging quality for export goods.
Supports specialized packaging needs like vacuum, inflatable, skin, and pressure filling.
IV. Conclusion
INVT’s PLC, HMI, servo, and inverter solution is successfully applied in auger filling machines—popular and essential packaging equipment. It enhances production efficiency, accuracy, and simplifies maintenance with a user-friendly design. This solution has been widely adopted across the Indian packaging industry.
