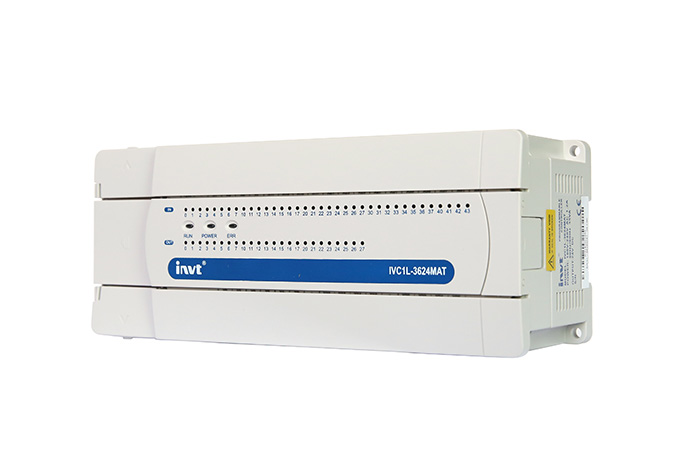

IVC1L Series Compact Cost-effective PLC

IVC1L Series Compact Cost-effective PLC

INVT IVC1L is a compact universal PLC featuring space-saving design, diverse models, complete functionality, and flexible I/O configurations. It is widely used in textile machinery, hoisting equipment, building materials machinery, food packaging equipment, and other industrial applications.

·Maximum of 60 I/O points on the main unit
·1*RS232，2*RS485
·3 channel 100K pulse output
Submit an Inquiry
  • IVC1L Series Compact Cost-effective PLC
  • IVC1L Series Compact Cost-effective PLC
ImagesImages
  • IVC1L Series Compact Cost-effective PLC
  • IVC1L Series Compact Cost-effective PLC
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Enquire

Features

Comprehensive functions
Two channels of 50K + four channels of 10K high-speed inputs, three channels of 100K high-speed outputs (transistor type), supporting real-time clock and built-in battery.
01
Versatile communication
Equipped with one RS232 and two RS485 ports as standard, supporting MODBUS master/slave, programming port protocol, N:N master/slave, and free port protocol.
02
Flexible configuration
Maximum of 60 I/O points on the main unit, supporting connection of up to 7 expansion modules, with a maximum expandable I/O capacity of 128 points.
03
Outstanding performance
16K-step program capacity, up to 8000 D-type data registers, FLASH memory for permanent storage, and basic instruction execution speed of 0.2μs.
04
Cost optimization
A wide range of models available, including AC-powered, DC-powered, relay output, and transistor output types, fully meeting various point requirements in different application scenarios.
05
Safe and reliable
CE and RoHS certified.
06

Specifications

ModelIVC1L-0806MDT1410MDT1614MDT2416MDT3624MDT0806MDR1410MDR1614MDR2416MDR3624MDR1614MAT11614MAR11614MAR6
Power
Inputvoltage24VDC(19~30VDC)220VAC(85~264VAC)
current0.85A1.5A
Output5V/GND900mA
24V/GND300mA
24V/COM-600mA
I/O configuration
Built-in I/OTotal14243040601424304060303032
Input814162436814162436161616
Output610141624610141624141416
Input typeNPN/PNP
Output typeNPNRelayNPNRelayRelay
Extension I/OExtension module7
Total128
Analog-2AI，1AO2 thermal resistance
High speed I/O
High speed input2×50KHz + 4×10KHz，AB phase（1×30K，1×5K）
High speed output3×100KHz-3×100KHz--
Communication
Serial portRS2321个
RS4852个
ProtocolProgramming protocol; MODBUS master/slave; free port; N:N protocol
Storage
Program capacity16K steps
Data block8000 D registers
Interrupt
External input interrupt16
High speed counter interrupt6
Internal time interrupt3
Serial port interrupt12
PTO output completion interrupt3
Power loss interrupt1
Programming
SoftwareAuto Station
Subprogram callingSupport total 64 subprograms（6 levels）, and it can supports the design of input and output interfaces
Others
Digital filtering functionX0~X7 adopts digital filering and other ports adopt hardware filtering
EncryptionUpload/download password, monitor password, subprogram encryption, format disable, upload disable
Real time clockSupport, built-in battery
Data saving function at power failureSupported
