Model | VS-043QE | VS-043QS | VS-070QE | VS-070QS | VS-070QS-G | VS-102QS | VS-102QS-G | VS-156QS | |
Display | |||||||||
Display size | 4.3" | 7" | 10.2" | 15.6" | |||||
Resolution | 480×272 | 800×480 | 1024×600 | 1024×600 | 1920×1080 | ||||
Screen material | ITO | ||||||||
Color depth | 24bits | ||||||||
Brightness (cd/㎡) | 400 | 450 | 450 | 300 | |||||
Backlight type | LED | ||||||||
Backlight life (hr) | 20000 | 15000 | |||||||
Touch panel | 4-wire High accuracy touch panel | ||||||||
CPU and memory | |||||||||
CPU | Cortex-A7 1GHz, Dual-core | Cortex-A7 1.2GHz | |||||||
Memory | 128MB DDR3 | 256MB DDR3 | |||||||
Storage | 128MB FLASH | 4G (EMMC) | |||||||
Communication interface | |||||||||
USB | Host×1, Client×1 | ||||||||
Serial interface | COM1 | RS232 | RS485 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 |
COM2 | RS485/422 | - | RS485/422 | RS485/422 | RS485/422 | RS485/422 | RS485/422 | RS485/422 | |
COM3 | - | - | RS485 | RS485 | RS485 | RS485 | RS485 | RS485 | |
Ethernet | - | Support | - | Support | Support | Support | Support | Support | |
4G/Wi-Fi | - | - | - | - | Support | - | Support | Support | |
Power supply | |||||||||
Rated voltage | 12-24VDC(±15%) | ||||||||
Rated power | 3W | 3W | 4W | 4W | 4W | 7W | 7W | 10W | |
Environment | |||||||||
Work temperature | -20～55°C | ||||||||
Workhumidity | 5～95%RH (No condensation) | ||||||||
Protection level | IP65 (Front panel) | ||||||||
Certification | |||||||||
CE | EN55032,EN55035 | ||||||||
FCC ompatibility | FCC, Class A | ||||||||
Dimensions and weight | |||||||||
Dimension (mm) | 139×86×31 | 139×86×31 | 203×145×35 | 203×145×35 | 203×145×35 | 273×211×40 | 273×211×40 | 395×257×31 | |
Cutout size (mm) | 132×80 | 132×80 | 192×138 | 192×138 | 192×138 | 259×201 | 259×201 | 383×246 | |
Weight (g) | 200 | 214 | 700 | 700 | 700 | 1050 | 1050 | 2450 | |
Configuration | |||||||||
Configuration software | HMITOOL | ||||||||
Popular Searches:

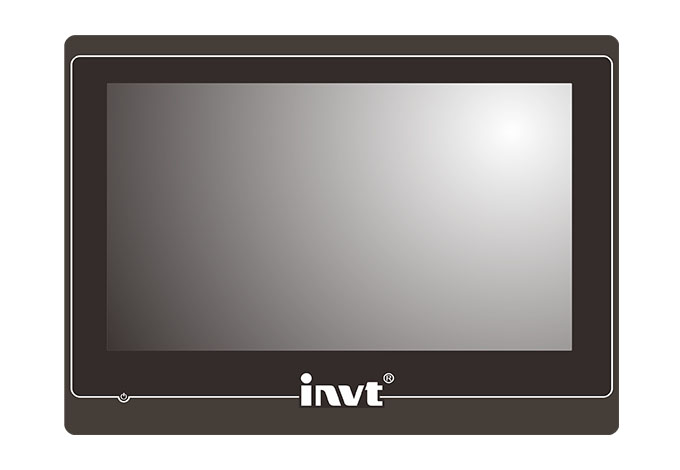

VS-Q Series Economic HMI
VS-Q Series Economic HMI is a cost-effective human-machine interface with rich display, powerful performance, robust configuration functions and easy operation. It can easily realize human-machine interaction functions in various fields of industrial automation, and is widely applied in manufacturing, printing and packaging, textile, woodworking, medical, food, agricultural and other industries.
·4.3 - 15.6 inches
·
Over 100 communication protocols
·
Supports IoT expansion
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Powerful Performance
Equipped with ind
ustrial-grade high-performance processor with a main frequency of up to 1.2GHz, greatly improving data processing efficiency.01
Diversified Communication
Built-in COM ports integrate RS232/422/485 communication methods and support industrial Ethernet communication
to realize data exchange between multiple devices.02
Remote Intelligent Connection
Supports IoT expansion with optional 4G/Wi-Fi, plug-and-play without complicated wiring, easily realizing remote monitoring,
data recording and alarm push..03
Convenient Configuration
Built-in a large number of rich industry vector graphic libraries, supporting macro instruction programming and C language scripting,
and enabling U disk for project update and data import/export.04
