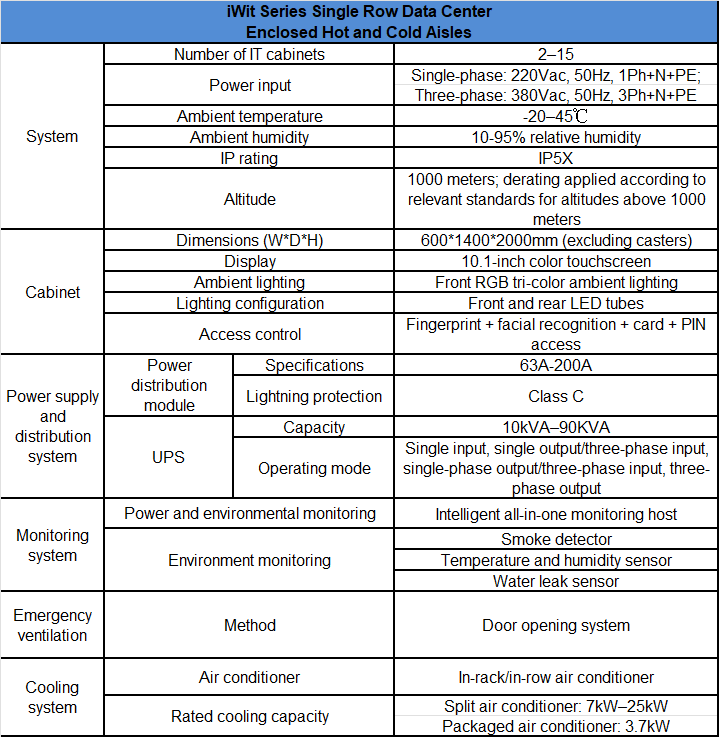

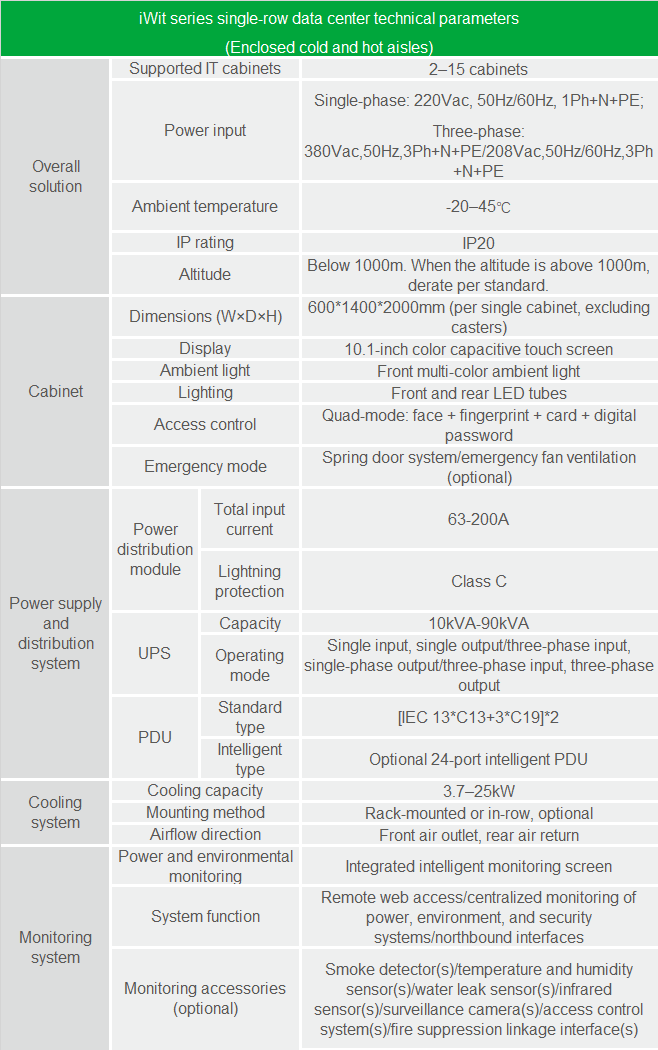

| iWit series single-row data center technical parameters (Enclosed cold and hot aisles) | |||
| Overall solution | Supported IT cabinets | 2–15 cabinets | |
| Power input | Single-phase: 220Vac, 50Hz/60Hz, 1Ph+N+PE; Three-phase: 380Vac,50Hz,3Ph+N+PE/208Vac,50Hz/60Hz,3Ph+N+PE | ||
| Ambient temperature | -20–45℃ | ||
| IP rating | IP20 | ||
| Altitude | Below 1000m. When the altitude is above 1000m, derate per standard. | ||
| Cabinet | Dimensions (W×D×H) | 600*1400*2000mm (per single cabinet, excluding casters) | |
| Display | 10.1-inch color capacitive touch screen | ||
| Ambient light | Front multi-color ambient light | ||
| Lighting | Front and rear LED tubes | ||
| Access control | Quad-mode: face + fingerprint + card + digital password | ||
| Emergency mode | Spring door system/emergency fan ventilation (optional) | ||
| Power supply and distribution system | Power distribution module-Total input current | 63-200A | |
| Power distribution module-Lightning protection | Class C | ||
| UPS-Capacity | 10kVA-90kVA | ||
| UPS-Operating mode | Single input, single output/three-phase input, single-phase output/three-phase input, three-phase output | ||
| PDU-Standard type | [IEC 13*C13+3*C19]*2 | ||
| PDU-Intelligent type | Optional 24-port intelligent PDU | ||
| Cooling system | Cooling capacity | 3.7–25kW | |
| Mounting method | Rack-mounted or in-row, optional | ||
| Airflow direction | Front air outlet, rear air return | ||
| Monitoring system | Power and environmental monitoring | Integrated intelligent monitoring screen | |
| System function | Remote web access/centralized monitoring of power, environment, and security systems/northbound interfaces | ||
| Monitoring accessories (optional) | Smoke detector(s)/temperature and humidity sensor(s)/water leak sensor(s)/infrared sensor(s)/surveillance camera(s)/access control system(s)/fire suppression linkage interface(s) | ||
Popular Searches:
iWit Series Single-Row Data Center
INVT iWit series single-row data center integrates all essential infrastructure for a small- or medium-scale data center into a cabinet with fully enclosed hot and cold aisles. It is equipped with comprehensive environmental sensors and centrally monitored and managed by the eSite cloud map monitoring system. This product standardizes the entire data center deployment within a compact footprint, providing a secure and reliable operating environment for your equipment. It significantly enhances intelligent remote management capabilities, eliminating the need for specialized maintenance personnel, thereby dramatically simplifying both the initial deployment and ongoing operational processes.
·Enclosed cold and hot aisles
·380Vac,50/60Hz
·10-90kVA
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Safe and reliable
Ensures safe and reliable operation through strict control at every stage: factory prefabrication, pre-assembly, and pre-commissioning.Enhances overall system reliability through integrated design.Maintains continuous operation via an intelligent heat-activated door opening system.Provides real-time status tracking and operational safety through redundant design with an integrated intelligent monitoring system.01
High efficiency and energy saving
Utilizes in-row or rack-mounted air conditioning for close-coupled cooling, significantly improving cooling efficiency and achieving over 25% energy savings compared to traditional data centers.Adopts an N+X pure online high-efficiency modular UPS with intelligent sleep mode to further reduce energy consumption, making system operation more energy-efficient.Remote operation and maintenance enabling unattended operation, reducing total cost of ownership (TCO).Features fully enclosed hot and cold aisles with internal air circulation for efficient cooling, effectively reducing operating costs.02
Fast installation
Pre-engineered design adaptable to various scenarios for fast on-site deployment.
Modular, plug-and-play architecture for simple and efficient installation and maintenance.Time- and labor-saving system, requiring only 4-6 hours for installation and commissioning.Supports integration of cooling, power distribution, UPS, batteries, monitoring, and cabling, with flexible expansion to up to 15 cabinets in a single row.03
Intelligent management
Intelligent monitoring of the operational status of both power and environmental systems.Real-time alarms via multiple methods, including SMS, phone calls, email, WeCom app, and audible/visual alarms.Multiple HMI options: O&M dashboard, remote app, local LCD, and remote Web.Northbound interfaces: ModbusTCP, MQTT, etc., for easy system integration.04
Specifications
