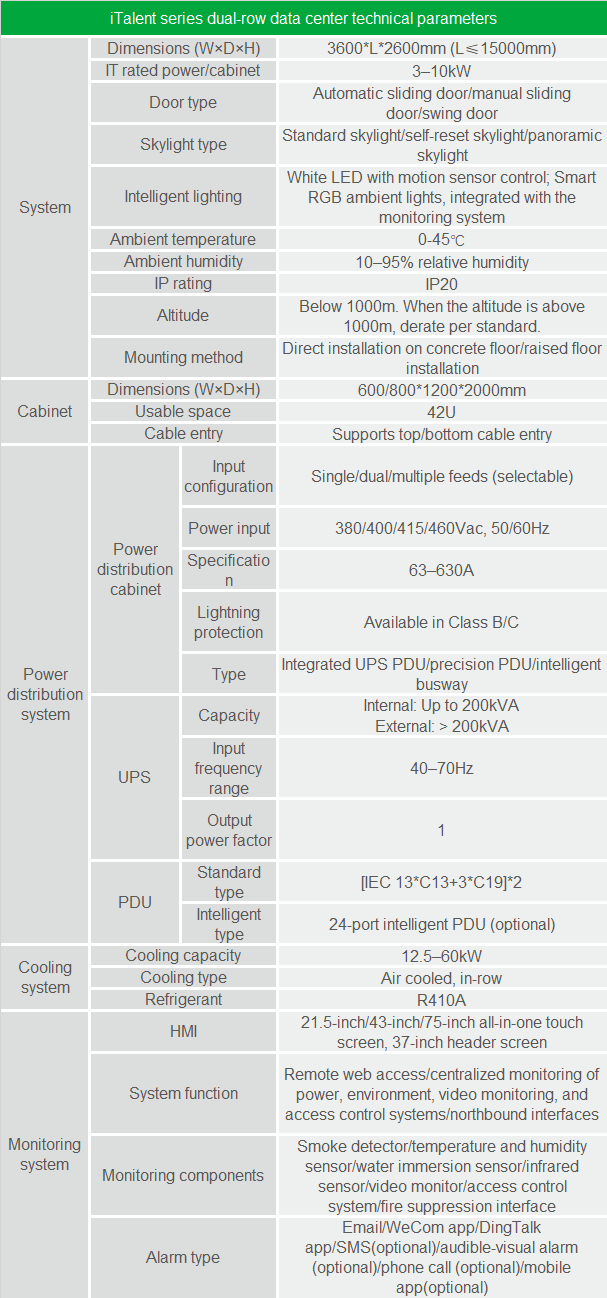

| iTalent series dual-row data center technical parameters | |||
| System | Dimensions (W×D×H) | 3600*L*2600mm (L≤15000mm) | |
| IT rated power/cabinet | 3–10kW | ||
| Door type | Automatic sliding door/manual sliding door/swing door | ||
| Skylight type | Standard skylight/self-reset skylight/panoramic skylight | ||
| Intelligent lighting | White LED with motion sensor control; Smart RGB ambient lights, integrated with the monitoring system | ||
| Ambient temperature | 0-45℃ | ||
| Ambient humidity | 10–95% relative humidity | ||
| IP rating | IP20 | ||
| Altitude | Below 1000m. When the altitude is above 1000m, derate per standard. | ||
| Mounting method | Direct installation on concrete floor/raised floor installation | ||
| Cabinet | Dimensions (W×D×H) | 600/800*1200*2000mm | |
| Usable space | 42U | ||
| Cable entry | Supports top/bottom cable entry | ||
| Power distribution system | Power distribution cabinet-Input configuration | Single/dual/multiple feeds (selectable) | |
| Power distribution cabinet-Power input | 380/400/415/460Vac, 50/60Hz | ||
| Power distribution cabinet-Specification | 63–630A | ||
| Power distribution cabinet-Lightning protection | Available in Class B/C | ||
| Power distribution cabinet-Type | Integrated UPS PDU/precision PDU/intelligent busway | ||
| UPS-Capacity | Internal: Up to 200kVA External: > 200kVA | ||
| UPS-Input frequency range | 40–70Hz | ||
| UPS-Output power factor | 1 | ||
| PDU-Standard type | [IEC 13*C13+3*C19]*2 | ||
| PDU-Intelligent type | 24-port intelligent PDU (optional) | ||
| Cooling system | Cooling capacity | 12.5–60kW | |
| Cooling type | Air cooled, in-row | ||
| Refrigerant | R410A | ||
| Monitoring system | HMI | 21.5-inch/43-inch/75-inch all-in-one touch screen, 37-inch header screen | |
| System function | Remote web access/centralized monitoring of power, environment, video monitoring, and access control systems/northbound interfaces | ||
| Monitoring components | Smoke detector/temperature and humidity sensor/water immersion sensor/infrared sensor/video monitor/access control system/fire suppression interface | ||
| Alarm type | Email/WeCom app/DingTalk app/SMS(optional)/audible-visual alarm (optional)/phone call (optional)/mobile app(optional) | ||
Popular Searches:
iTalent Series Dual-Row Data Center
INVT iTalent series dual-row data center adopts a modular design, integrating power supply and distribution, air conditioning, cabinet, enclosed aisle systems, monitoring, and cabling into a unified whole. It is equipped with comprehensive environmental sensors and centrally monitored and managed by the eSite cloud map monitoring system. This enables automated control and intelligent operation and maintenance, enhancing the data center's reliability, availability, and maintainability.
·Enclosed cold/hot aisles
·380Vac, 50/60Hz
·>10kVA
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Safe and reliable
Productized solution featuring pre-engineered and integrated design to enhance overall system reliability.Incorporates redundant design of key components to improve system reliability.Incorporates power distribution and cooling systems designed in accordance with international Tier IV data center standards.Includes an integrated intelligent monitoring system that provides proactive alerts for safe operation.01
High efficiency and energy saving
Utilizes in-row air conditioners within an enclosed space for close-coupled cooling, significantly improving cooling efficiency and achieving over 35% energy savings compared to traditional data centers.Adopts an N+X pure online high-efficiency modular UPS with intelligent sleep mode to minimize energy consumption.Integrates power supply and distribution to save space, allowing deployment of 1-2 additional cabinets.Remote operation and maintenance enabling unattended operation, reducing total cost of ownership (TCO).02
Fast installation
Enables fast, on-demand deployment tailored to business needs through standardized components and modular architecture.Installs directly on building concrete floors without the need for a specialized computer room, reducing ancillary works.Features a standardized, modular, and plug-and-play design for easy installation and significantly reduced deployment time.03
Intelligent management
Comprehensive intelligent monitoring of power and environmental system status.Intelligent header that displays critical information intuitively, facilitating ease of operation and maintenance.Real-time alarms via multiple methods, including SMS, phone calls, email, WeCom app, and audible/visual alarms.Multiple HMI options: O&M dashboard, remote app, local LCD, and remote Web.Northbound interfaces: ModbusTCP, MQTT, etc., for easy system integration.04
