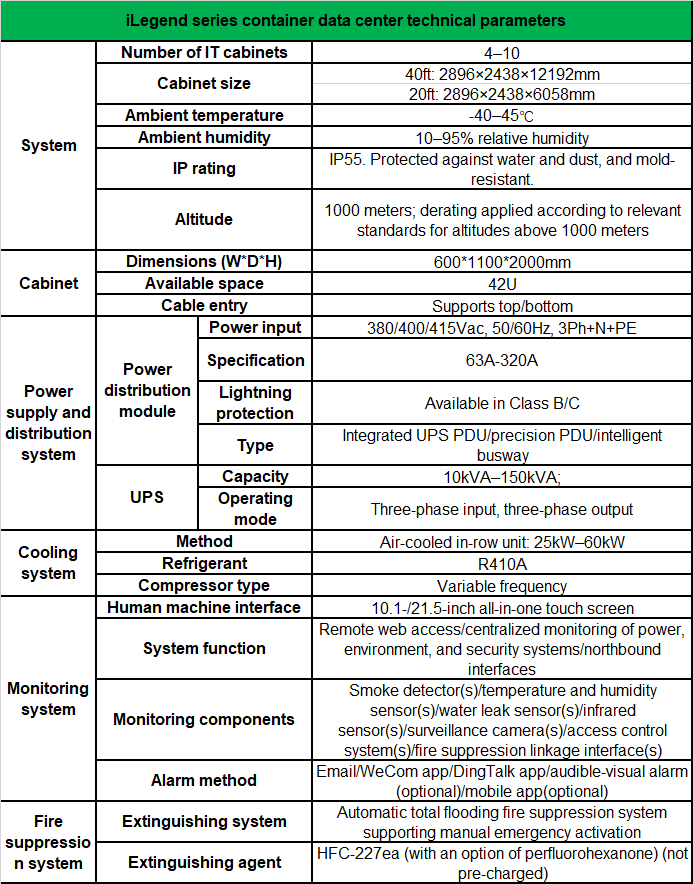

| iLegend series container data center technical parameters | |||
| System | Number of IT cabinets | 4–10 | |
| Cabinet size | 40ft: 2896×2438×12192mm 20ft: 2896×2438×6058mm | ||
| Ambient temperature | -40–45℃ | ||
| Ambient humidity | 10–95% relative humidity | ||
| IP rating | IP55. Protected against water and dust, and mold-resistant. | ||
| Altitude | 1000 meters; derating applied according to relevant standards for altitudes above 1000 meters | ||
| Cabinet | Dimensions (W*D*H) | 600*1100*2000mm | |
| Available space | 42U | ||
| Cable entry | Supports top/bottom | ||
| Power supply and distribution system | Power distribution module-Power input | 380/400/415Vac, 50/60Hz, 3Ph+N+PE | |
| Power distribution module-Specification | 63A-320A | ||
| Power distribution module-Lightning protection | Available in Class B/C | ||
| Power distribution module-Type | Integrated UPS PDU/precision PDU/intelligent busway | ||
| UPS-Capacity | 10kVA–150kVA | ||
| UPS-Operating mode | Three-phase input, three-phase output | ||
| Cooling system | Method | Air-cooled in-row unit: 25kW–60kW Air-cooled in-row unit: 25kW–60kW | |
| Refrigerant | R410A | ||
| Compressor type | Variable frequency | ||
| Monitoring system | Human machine interface (HMI) | 10.1-/21.5-inch all-in-one touch screen | |
| System function | Remote web access/centralized monitoring of power, environment, and security systems/northbound interfaces | ||
| Monitoring components | Smoke detector(s)/temperature and humidity sensor(s)/water leak sensor(s)/infrared sensor(s)/surveillance camera(s)/access control system(s)/fire suppression linkage interface(s) | ||
| Alarm method | Email/WeCom app/DingTalk app/audible-visual alarm (optional)/mobile app(optional) | ||
| Fire suppression system | Extinguishing system | Automatic total flooding fire suppression system supporting manual emergency activation | |
| Extinguishing agent | HFC-227ea (with an option of perfluorohexanone) (not pre-charged) | ||
Popular Searches:
iLegend Series Container Data Center
INVT iLegend series container data center features an integrated design with factory prefabrication and pre-assembly. It integrates power supply and distribution, cooling, cabinet, enclosed aisle, monitoring, and fire suppression systems into a single container, creating a fully independent operating unit. The eSite cloud map monitoring system enables unified monitoring and management, meeting requirements for rapid deployment and fast delivery of outdoor data centers.
·Container,380Vac, 50/60Hz
·10–150kVA
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Safe and reliable
Ensures safe and reliable operation through strict control at every stage: factory prefabrication, pre-assembly, and pre-commissioning.
Features excellent waterproof performance, making it suitable for various complex scenarios.Incorporates redundant design of key components to improve system reliability.Integrates video monitoring, access control, and intelligent monitoring management systems to ensure secure equipment operation.01
High efficiency and energy saving
Improves cooling capacity utilization and reduces energy consumption through the integrated design with isolated cold and hot aisles and fully enclosed structure.Attains precise cooling via fully inverter-controlled precision air conditioners featuring on-demand output control, effectively minimizing energy consumption.Enhances energy savings with high-efficiency and energy-saving modular UPS with intelligent sleep function.Achieves space savings through the integrated design of power supply and distribution systems with UPS.02
Simple and quick setup
Plug-and-play deployment with factory-pre-integrated systems encompassing power supply and distribution, air conditioning, cabinet, enclosed aisle, monitoring, and fire suppression.Standard container compliant with international maritime and land transport regulations, ensuring worldwide accessibility.Installs directly on building concrete floors or outdoors without the need for a specialized computer room, reducing ancillary works.03
Intelligent management
Comprehensive intelligent monitoring of power and environmental system status.
Real-time alarms via multiple methods, including SMS, phone calls, email, WeCom app, and audible/visual alarms.Multiple HMI options: O&M dashboard, remote app, local LCD, and remote Web.
Northbound interfaces: ModbusTCP, MQTT, etc., for easy system integration.04
