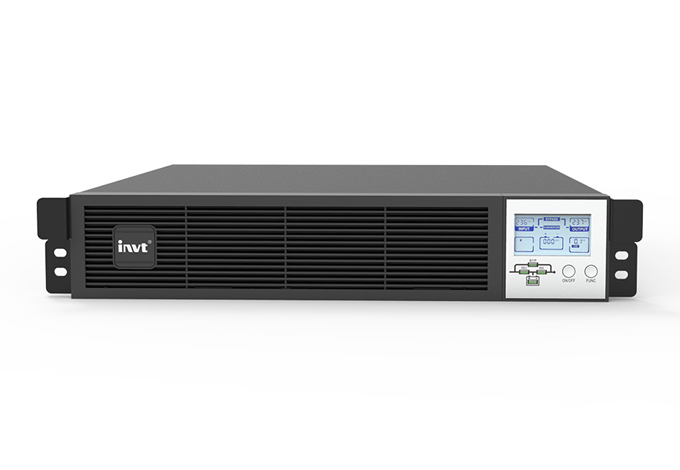

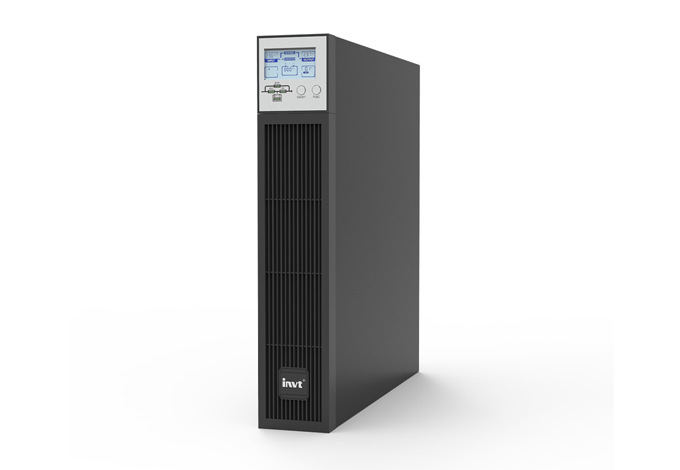

HRC11 Series Tower Online UPS 1-3kVA (220V/230V/240V) - INVT Electric Glboal

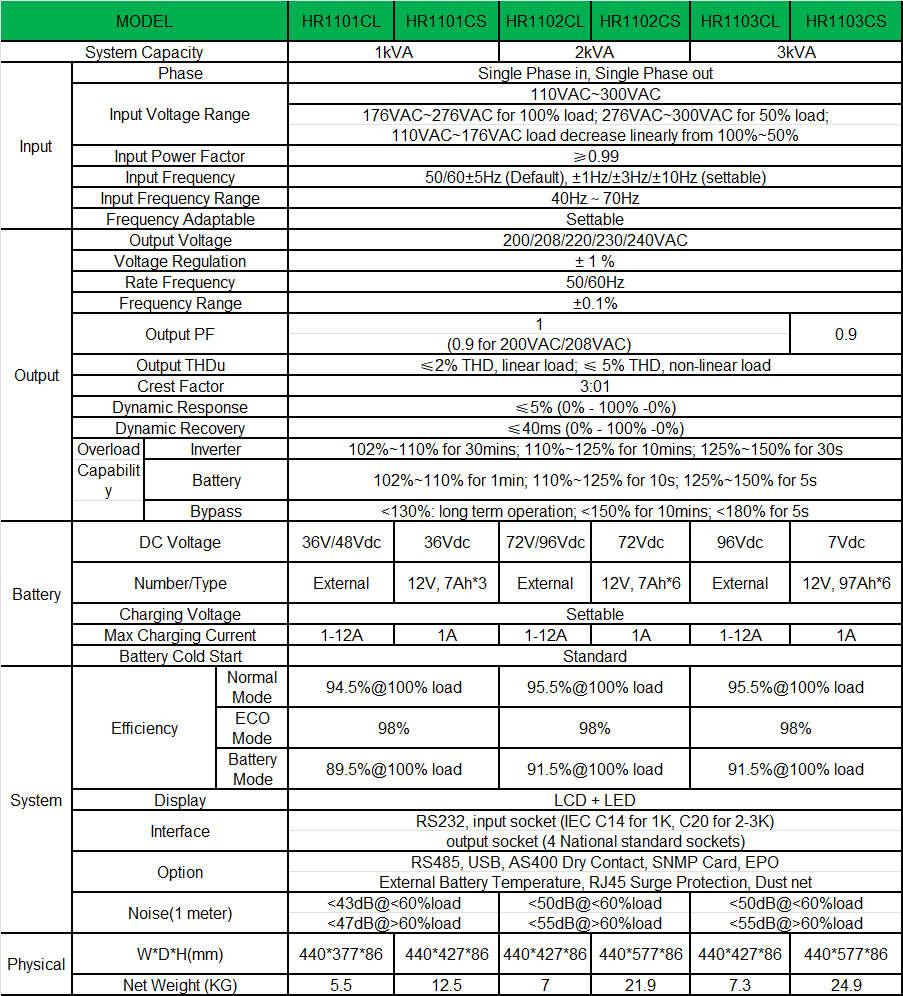

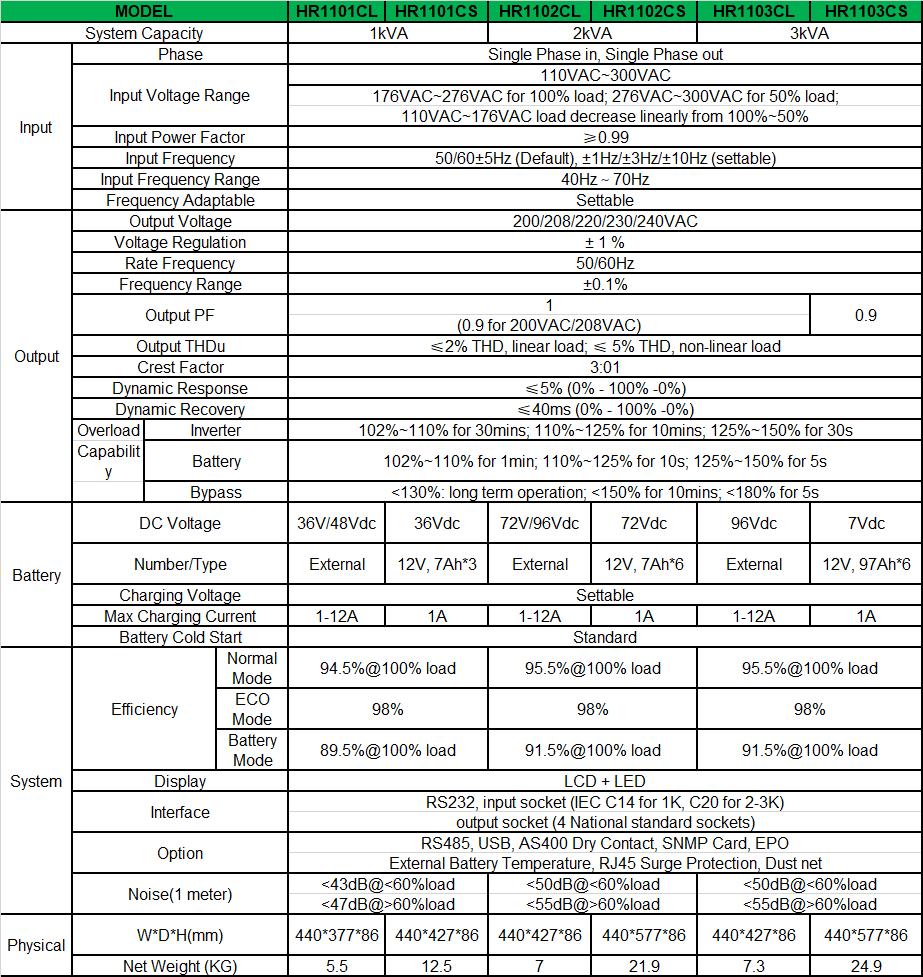

MODEL

HR1101CL

HR1101CS

HR1102CL

HR1102CS

HR1103CL

HR1103CS

System Capacity

1kVA

2kVA

3kVA

Input

Phase

Single Phase in, Single Phase out

Input Voltage Range

110VAC~300VAC

176VAC~276VAC for 100% load; 276VAC~300VAC for 50% load;

110VAC~176VAC load decrease linearly from 100%~50%

Input Power Factor

≥0.99

Input Frequency

50/60±5Hz (Default), ±1Hz/±3Hz/±10Hz (settable)

Input Frequency Range

40Hz～70Hz

Frequency Adaptable

Settable

Output

Output Voltage

200/208/220/230/240VAC

Voltage Regulation

± 1 %

Rate Frequency

50/60Hz

Frequency Range

±0.1%

Output PF

1

(0.9 for 200VAC/208VAC)

0.9

Output THDu

≤2% THD, linear load; ≤ 5% THD, non-linear load

Crest Factor

3:1

Dynamic Response

≤5% (0% - 100% -0%)

Dynamic Recovery

≤40ms (0% - 100% -0%)

Overload

Capability

Inverter

102%~110% for 30mins; 110%~125% for 10mins; 125%~150% for 30s

Battery

102%~110% for 1min; 110%~125% for 10s; 125%~150% for 5s

Bypass

<130%: long term operation; <150% for 10mins; <180% for 5s

Battery

DC Voltage

36V/48Vdc

36Vdc

72V/96Vdc

72Vdc

96Vdc

7Vdc

Number/Type

External

12V, 7Ah*3

External

12V, 7Ah*6

External

12V, 97Ah*6

Charging Voltage

Settable

Max Charging Current

1-12A

1A

1-12A

1A

1-12A

1A

Battery Cold Start

Standard

System

Efficiency

Normal Mode

94.5%@100% load

95.5%@100% load

95.5%@100% load

ECO Mode

98%

98%

98%

Battery Mode

89.5%@100% load

91.5%@100% load

91.5%@100% load

Display

LCD + LED

Interface

RS232, input socket (IEC C14 for 1K, C20 for 2-3K)

output socket (4 National standard sockets)

Option

RS485, USB, AS400 Dry Contact, SNMP Card, EPO

External Battery Temperature, RJ45 Surge Protection, Dust net

Noise(1 meter)

<43dB@<60%load

<47dB@>60%load

<50dB@<60%load

<55dB@>60%load

<50dB@<60%load

<55dB@>60%load

Physical

W*D*H(mm)

440*377*86

440*427*86

440*427*86

440*577*86

440*427*86

440*577*86

Net Weight (KG)

5.5

12.5

7

21.9

7.3

24.9
