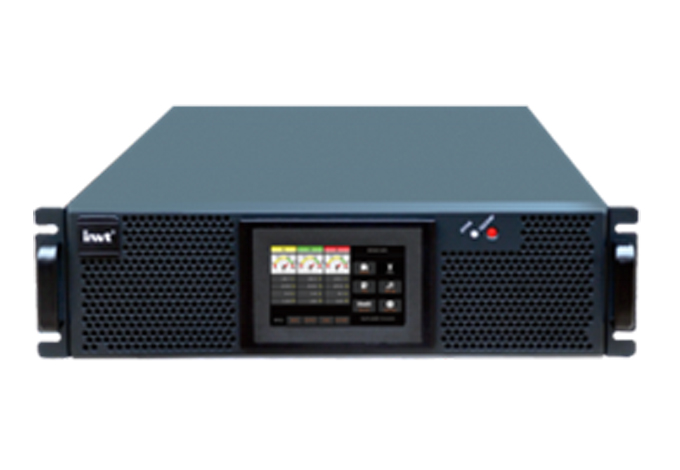

HR33 Series Rack Online UPS 10-40kVA (380V/400V/415V) - INVT Electric Glboal

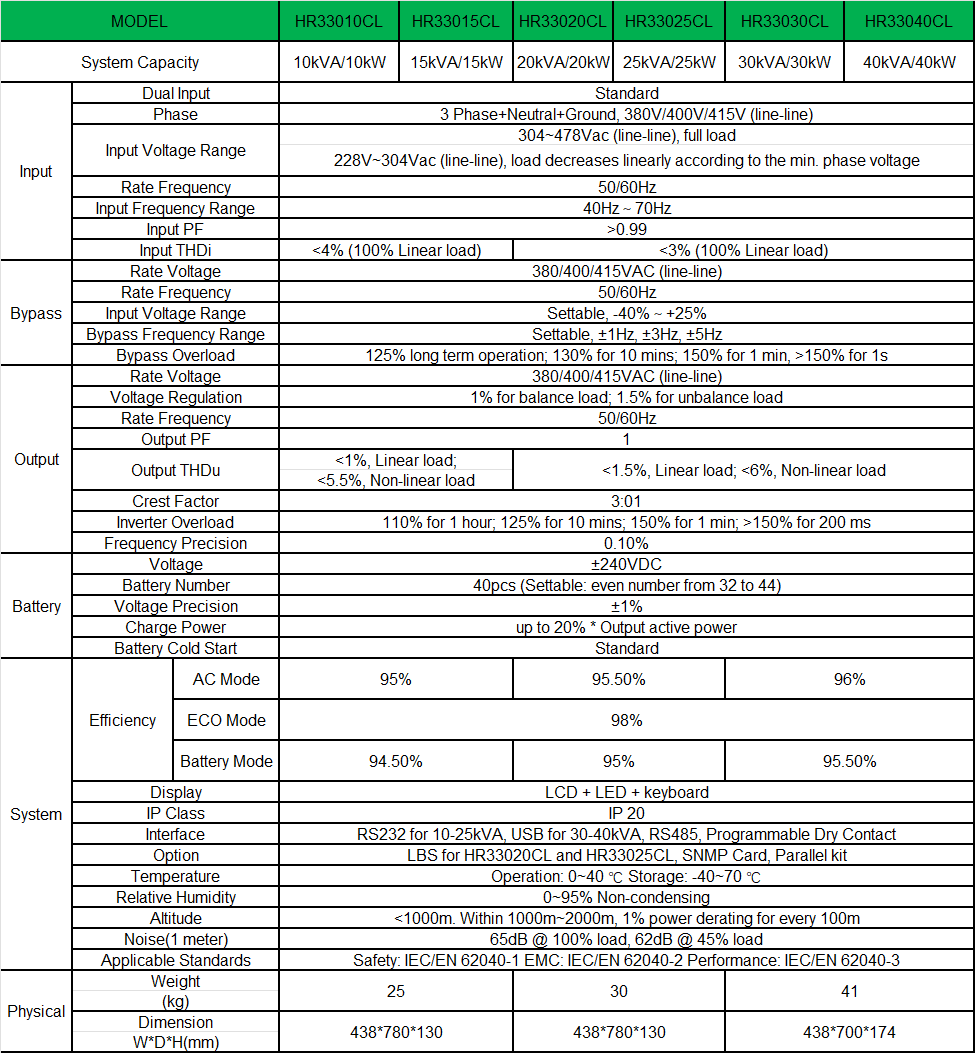

MODEL

HR33010CL

HR33015CL

HR33020CL

HR33025CL

HR33030CL

HR33040CL

System Capacity

10kVA/10kW

15kVA/15kW

20kVA/20kW

25kVA/25kW

30kVA/30kW

40kVA/40kW

Input

Dual Input

Standard

Phase

3 Phase+Neutral+Ground, 380V/400V/415V (line-line)

Input Voltage Range

304~478Vac (line-line), full load

228V~304Vac (line-line), load decreases linearly according to the min. phase voltage

Rate Frequency

50/60Hz

Input Frequency Range

40Hz～70Hz

Input PF

>0.99

Input THDi

<4% (100% Linear load)

<3% (100% Linear load)

Bypass

Rate Voltage

380/400/415VAC (line-line)

Rate Frequency

50/60Hz

Input Voltage Range

Settable, -40%～+25%

Bypass Frequency Range

Settable, ±1Hz, ±3Hz, ±5Hz

Bypass Overload

125% long term operation; 130% for 10 mins; 150% for 1 min, >150% for 1s

Output

Rate Voltage

380/400/415VAC (line-line)

Voltage Regulation

1% for balance load; 1.5% for unbalance load

Rate Frequency

50/60Hz

Output PF

1

Output THDu

<1%, Linear load;

<5.5%, Non-linear load

<1.5%, Linear load; <6%, Non-linear load

Crest Factor

3:1

Inverter Overload

110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms

Frequency Precision

0.1%

Battery

Voltage

±240VDC

Battery Number

40pcs (Settable: even number from 32 to 44)

Voltage Precision

±1%

Charge Power

up to 20% * Output active power

Battery Cold Start

Standard

System

Efficiency

AC Mode

95%

95.5%

96%

ECO Mode

98%

Battery Mode

94.5%

95%

95.5%

Display

LCD + LED + keyboard

IP Class

IP 20

Interface

RS232 for 10-25kVA, USB for 30-40kVA, RS485, Programmable Dry Contact

Option

LBS for HR33020CL and HR33025CL, SNMP Card, Parallel kit

Temperature

Operation: 0~40 ℃ Storage: -40~70 ℃

Relative Humidity

0~95% Non-condensing

Altitude

<1000m. Within 1000m~2000m, 1% power derating for every 100m

Noise(1 meter)

65dB @ 100% load, 62dB @ 45% load

Applicable Standards

Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3

Physical

Weight

(kg)

25

30

41

Dimension

W*D*H(mm)

438*780*130

438*780*130

438*700*174
