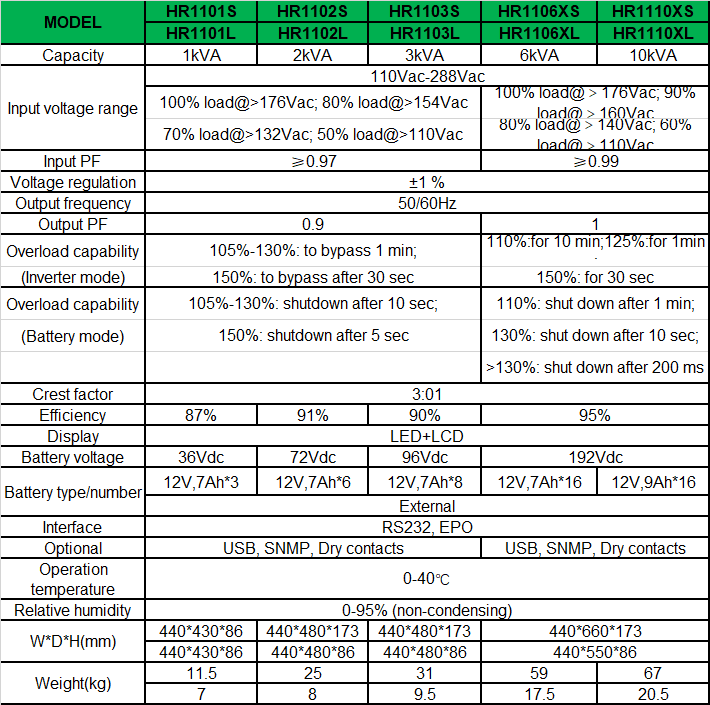

MODEL | HR1101S | HR1102S | HR1103S | HR1106XS | HR1110XS |
HR1101L | HR1102L | HR1103L | HR1106XL | HR1110XL | |
Capacity | 1kVA | 2kVA | 3kVA | 6kVA | 10kVA |
Input voltage range | 110Vac-288Vac | ||||
100% load@>176Vac; 80% load@>154Vac 70% load@>132Vac; 50% load@>110Vac | 100% load@＞176Vac; 90% load@＞160Vac 80% load@＞140Vac; 60% load@＞110Vac | ||||
Input PF | ≥0.97 | ≥0.99 | |||
Voltage regulation | ±1 % | ||||
Output frequency | 50/60Hz | ||||
Output PF | 0.9 | 1 | |||
Overload capability (Inverter mode) | 105%-130%: to bypass 1 min; 150%: to bypass after 30 sec | 110%:for 10 min;125%:for 1min ; 150%: for 30 sec | |||
Overload capability (Battery mode) | 105%-130%: shutdown after 10 sec; 150%: shutdown after 5 sec | 110%: shut down after 1 min; 130%: shut down after 10 sec; >130%: shut down after 200 ms | |||
Crest factor | 3:1 | ||||
Efficiency | 87% | 91% | 90% | 95% | |
Display | LED+LCD | ||||
Battery voltage | 36Vdc | 72Vdc | 96Vdc | 192Vdc | |
Battery type/number | 12V,7Ah*3 | 12V,7Ah*6 | 12V,7Ah*8 | 12V,7Ah*16 | 12V,9Ah*16 |
External | |||||
Interface | RS232, EPO | ||||
Optional | USB, SNMP, Dry contacts | USB, SNMP, Dry contacts | |||
Operation temperature | 0-40℃ | ||||
Relative humidity | 0-95% (non-condensing) | ||||
W*D*H(mm) | 440*430*86 | 440*480*173 | 440*480*173 | 440*660*173 | |
440*430*86 | 440*480*86 | 440*480*86 | 440*550*86 | ||
Weight(kg) | 11.5 | 25 | 31 | 59 | 67 |
7 | 8 | 9.5 | 17.5 | 20.5 | |
