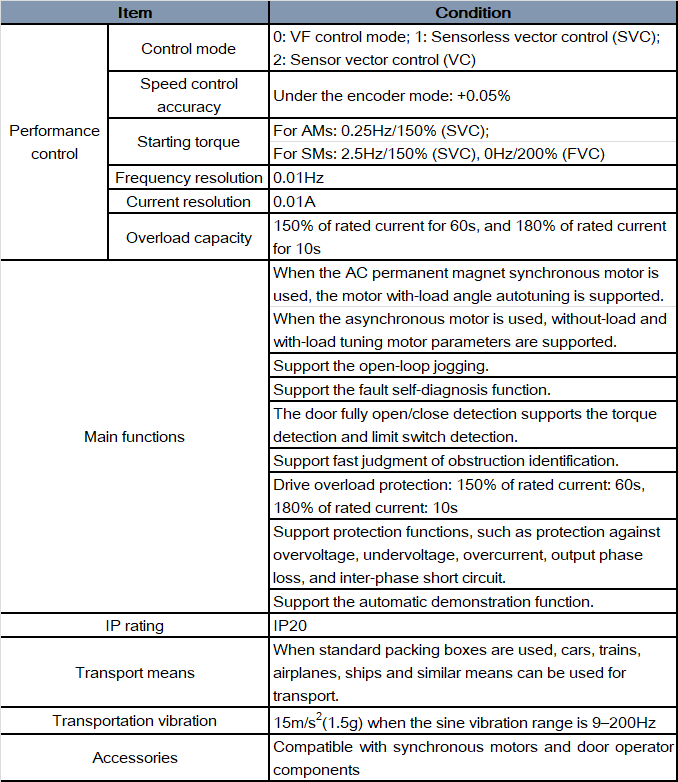

Item | Specifications | |
Performance control | Control mode | 0: VF control mode; 1: Sensorless vector control (SVC); 2: Sensor vector control (VC) |
Speed control accuracy | Under the encoder mode: ±0.05% | |
Starting torque | For AMs: 0.25Hz/150% (SVC) For SMs: 2.5Hz/150% (SVC) 0Hz/200% (VC) | |
Frequency resolution | 0.01Hz | |
Current resolution | 0.01A | |
Overload capacity | 150% of the rated current for 60s 180% of the rated current for 10s | |
Main functions | When the AC permanent magnet synchronous motor is used, the motor with-load angle autotuning is supported. When the asynchronous motor is used, without-load and with-load tuning motor parameters are supported. | |
| Support the open-loop jogging. | ||
| Support the fault self-diagnosis function. | ||
| The door fully open/close detection supports the torque detection and limit switch detection. | ||
| Support fast judgment of obstruction identification. | ||
| Drive overload protection: 150% of rated current: 60s, 180% of rated current: 10s | ||
| Support protection functions, such as protection against overvoltage, undervoltage, overcurrent, output phase loss, and inter-phase short circuit. | ||
| Support the automatic demonstration function. | ||
IP rating | IP20 | |
Transport means | When standard packing boxes are used, cars, trains, airplanes, ships and similar means can be used for transport. | |
Transportation vibration | 15m/s2(1.5g) when the sine vibration range is 9–200Hz | |
Accessories | Compatible with synchronous motors and door operator components | |
Popular Searches:
EC30 Series Elevator Door Controller

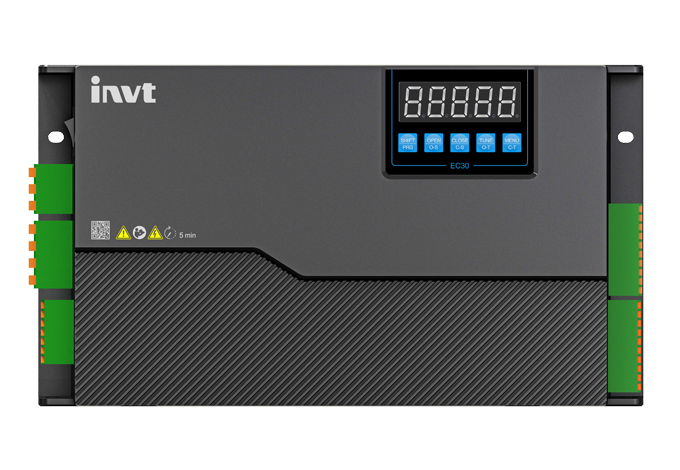

The EC30 elevator door controller is a professional drive controller specifically designed for elevator door systems. It supports both synchronous and asynchronous motor control, featuring a lightweight and compact design with an ultra-thin plastic housing that enables flexible installation in any mechanical configuration. This universal elevator door controller integrates communication control, network control, and drive control into a single unit, offering broad applicability for various elevator door systems.
·0.2kW
·
Speed control accuracy: ±0.05%
·
IP20
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Ease of use
App-based program burning and function debuggingIntelligent handling in full-pulse mode and pulse loss scenariosOne-touch commissioning, obstacle auto-detection, demo mode, and adaptive operation.Automatic generation of door opening and closing curves without the need to modify parameters01
Safe and reliable
Anti-pinching protection during power failureObstruction protection during door opening/closingOvercurrent/overvoltage protection during acceleration, deceleration, and constant speedPhase loss and short-circuit protection02
Functional highlights
Door motor noise controlCarrier frequency reduction on overtemperatureOpen protocol support03
Testing and certification
Multiple reliability validationsCompliant with CE self-declaration certification04
