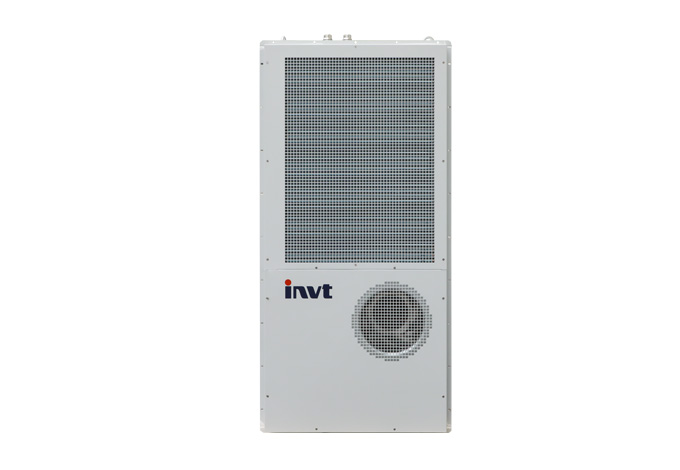

VCEW Series Embedded Liquid Cooling Unit for Energy Storage Systems

INVT VCEW series embedded liquid cooling unit is a thermal management system developed for energy storage applications such as battery thermal management. It provides temperature control for energy storage batteries and temperature-sensitive equipment. The unit offers comprehensive functionality, supporting RS485 or CAN communication with a host controller for status monitoring, alarm viewing, and operational control. It features high energy efficiency, strong reliability, simple and convenient installation, and excellent adaptability to diverse environments.

Inquiry

Facebook Twitter Google+ LinkedIn

Features
Specification
Application
Download

Features:
1. Ultra-wide operating range, covering -30℃ to 55℃.
2. Safe and reliable PTC heating with stable heat output.
3. Variable-frequency compressor control for precise temperature regulation and high energy efficiency.
4. High-performance controller with support for an external display.
5. Standard RS485/CAN communication interface; optional SNMP card.
6. Closed-loop system to ensure stable coolant performance.
7. Multiple sensor applications and monitoring functions for superior reliability.
8. Integrated structure with modular design for easy installation and maintenance.
9. Precise adjustment enables a minimal supply/return water temperature difference.
10. Comprehensive system accessories, such as automatic make-up and piping.

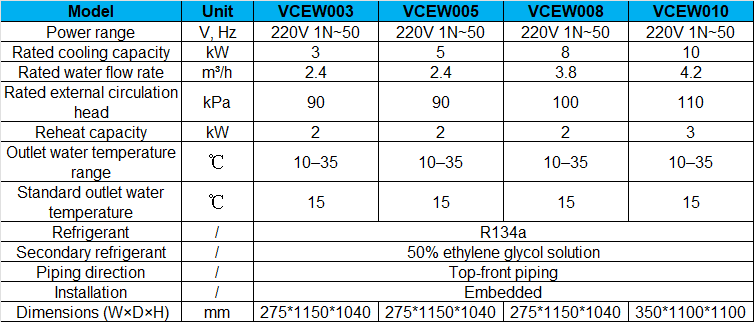

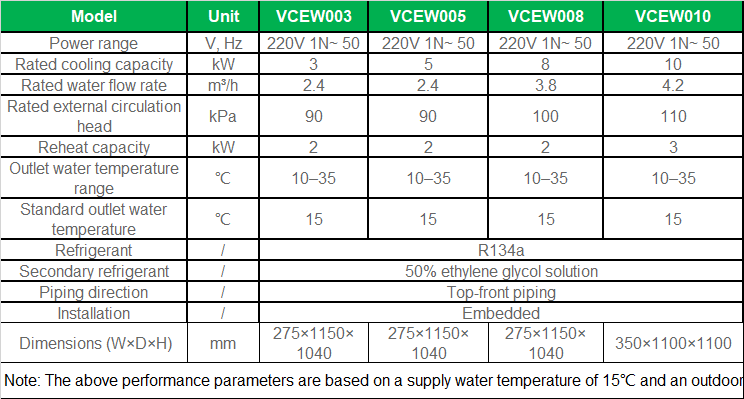

Specifications:

Note: The above performance parameters are based on a supply water temperature of 15℃ and an outdoor temperature of 35℃.
