VCE Series Variable-frequency Packaged Air Conditioner for Energy Storage Systems (Indoor Type)

INVT VCE series variable-frequency packaged air conditioner is a professional thermal management solution designed for energy storage containers, power control cabinets, and prefabricated IDC. Equipped with high-efficiency EC fan(s), DC variable-frequency compressor(s), and electronic expansion valve(s), the unit provides high energy efficiency, large airflow, and high static pressure for longer throw. In addition, it offers a range of alarm and control functions designed for energy storage and power equipment, providing highly reliable temperature and humidity control solutions for energy storage systems and power control systems.

Inquiry

Facebook Twitter Google+ LinkedIn

Features
Specification
Application
Download

Features:
1. Integrated design for easy installation.
2. Variable-frequency compressor, electronic expansion valve, and EC fan for high-efficiency, energy-saving operation.
3. Standard PTC heater; the unit supports air supply, cooling, heating, and flexible on-site configuration.
4. Dehumidification function for efficient humidity control.
5. Standard 7-inch smart touchscreen for user-friendly operation.
6. RS485 communication interface, optional SNMP card.
7. High-speed, reliable CAN communication networking for group control.
8. Versatile alarm outputs and multi-level protection.

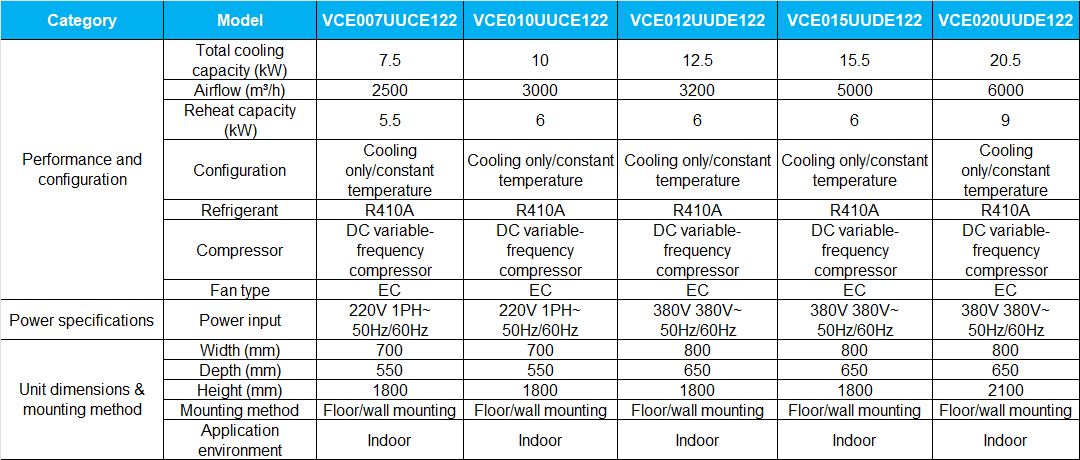

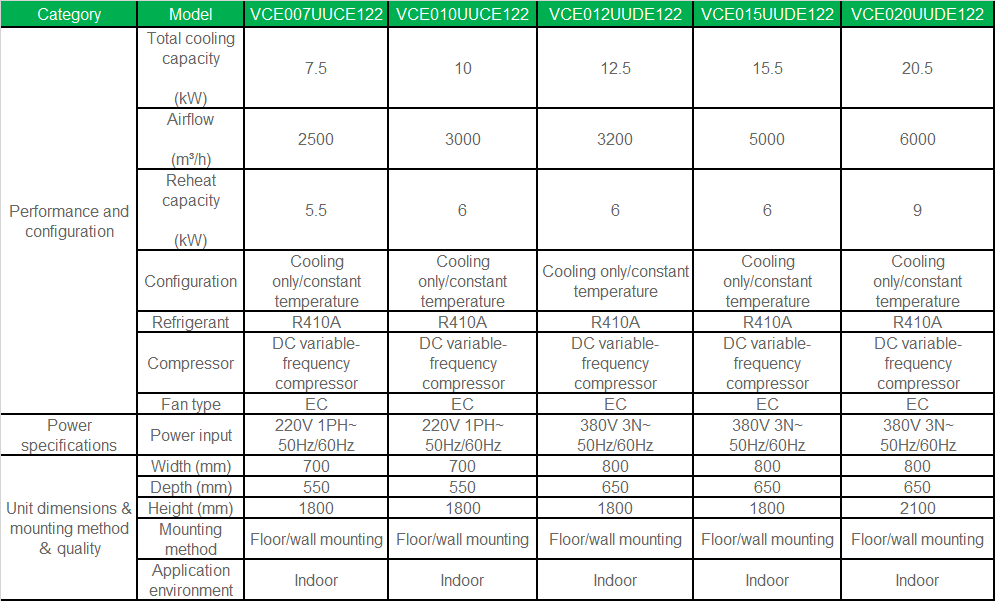

Specifications:
