VCEW Series Liquid Cooling Unit for Energy Storage Systems

INVT VCEW series liquid cooling unit is a thermal management system developed for energy storage applications such as battery thermal management. It is designed to provide precise temperature control for energy storage batteries as well as other equipment sensitive to temperature fluctuations. The unit offers comprehensive functionality, supporting RS485 or CAN communication with a host controller for status monitoring, alarm viewing, and operational control. It features high energy efficiency, strong reliability, simple and convenient installation, and excellent adaptability to diverse environments.

Inquiry

Facebook Twitter Google+ LinkedIn

Features
Specification
Application
Download

Features:
1. Ultra-wide operating range, covering -30℃ to 55℃.
2. Safe and reliable PTC heating with stable heat output.
3. Variable-frequency compressor control for precise temperature regulation and high energy efficiency.
4. Standard 7-inch smart touchscreen for easier operation, providing access to 30-day historical curves and over 5,000 historical records.
5. Standard RS485/CAN communication interface; optional SNMP card.
6. Closed-loop system to ensure stable coolant performance.
7. Multiple sensor applications and monitoring functions for superior reliability.
8. Multiple mounting options are available, such as external mounting and floor mounting.
9. Precise adjustment enables a minimal supply/return water temperature difference.
10. Comprehensive system accessories, such as automatic make-up and piping.

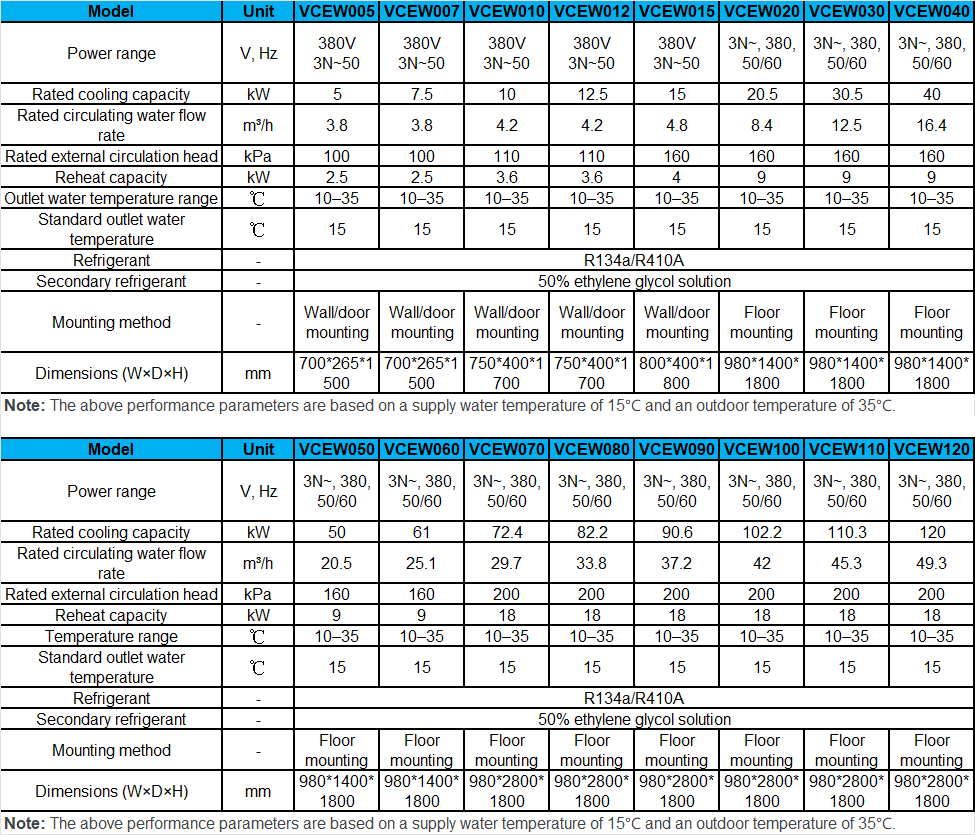

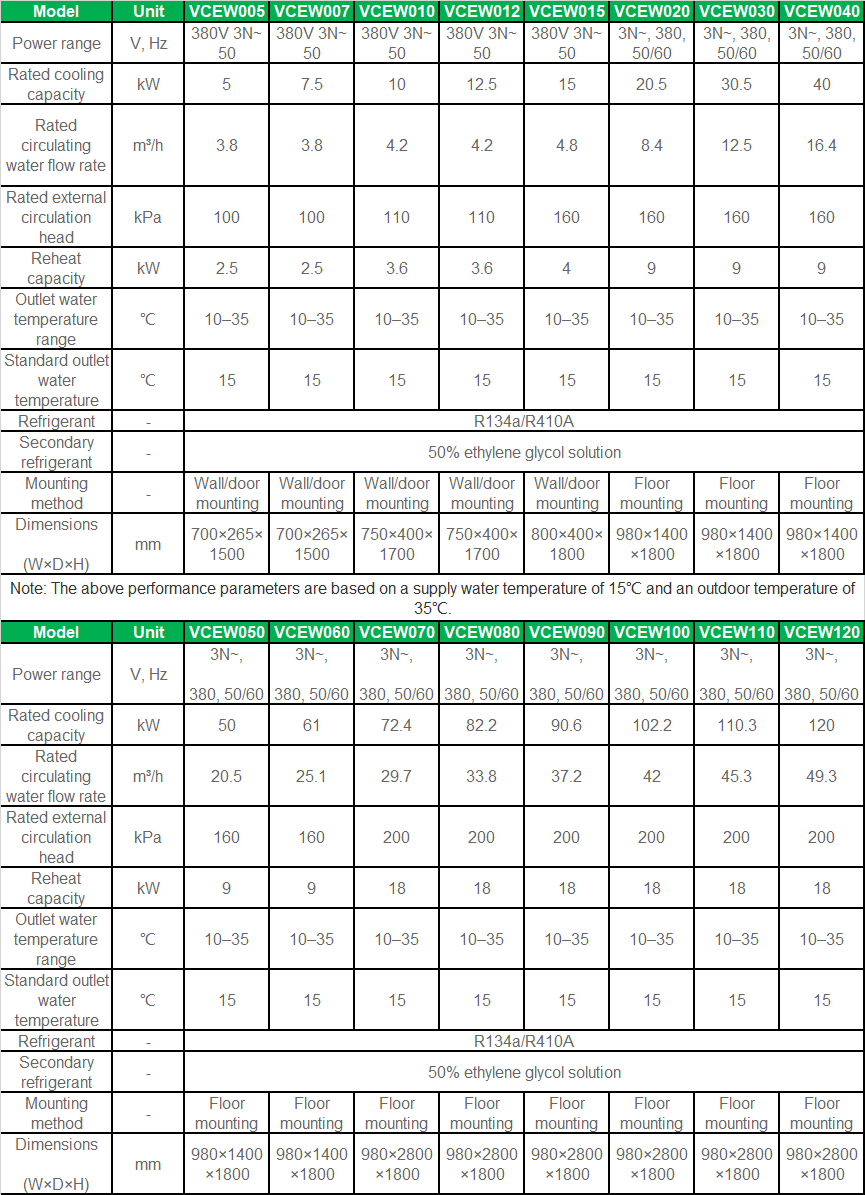

Specifications:
