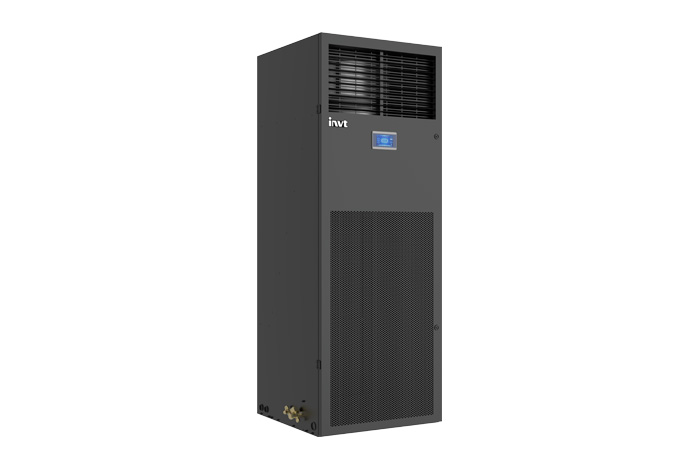

VCA Series Small Server Room Precision Air Conditioner

The INVT VCA series small server room precision air conditioner is specially designed for small and medium server rooms, power distribution rooms, battery rooms, and telecommunication base stations, providing precise control of temperature, humidity, and air cleanliness. It ensures an optimal operating environment for in-rack equipment, servers, industrial process equipment, telecommunication equipment, UPS, power distribution equipment, batteries, and more.

·Cooling type: Air cooling
·Cooling capacity: 5.5–32kW
·Airflow: 2000–9000m³/h
  • VCA Series Small Server Room Precision Air Conditioner
  • VCA Series Small Server Room Precision Air Conditioner
ImagesImages
  • VCA Series Small Server Room Precision Air Conditioner
  • VCA Series Small Server Room Precision Air Conditioner
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More

Features

High efficiency and energy saving
High airflow, low enthalpy difference, and high sensible heat ratio to meet the temperature control requirements of the server room.
High-efficiency compressor that comes standard with an electronic expansion valve for faster response and more precise flow regulation.
High-efficiency backward-curved centrifugal fan with low energy consumption and large airflow, ensuring uniform temperature and humidity within the server room.
High-efficiency evaporator featuring internally grooved copper tubes and hydrophilic-coated, louvered aluminum fins for superior heat exchange efficiency.
The outdoor fan features stepless speed control, operating in accordance with condensing pressure to achieve energy savings and noise reduction.
Standard evaporative humidifier for energy-efficient operation and longer service life.
01
High safety and reliability
Uses certified high-quality components for enhanced reliability from the ground up.
Undergoes rigorous and repeated testing and validation to meet high standards and ensure high-quality delivery.
Designed for 24/7 continuous operation throughout the year, with a long service life and low maintenance costs.
Ultra-wide power grid adaptability, preventing frequent startup and shutdown of the air conditioner.
Standard high-efficiency and eco-friendly refrigerant R410A.
The threaded quick-connect design eliminates the need for on-site hot work or welding.
02
Intelligent control
4.3-inch/7-inch premium full-color capacitive touchscreen, multi-level password protection, and expert system self-check with diagnostics for enhanced intelligent operation.
Comprehensive monitoring and display of key information such as power supply voltage, frequency, phase sequence, cooling capacity, airflow, and temperature/humidity curves ensure real-time visibility of system health.
Supports networking of up to 64 air conditioners, enabling scheduled rotation, fault-based rotation, cascade control, and prevention of conflicting operations.
Functions such as automatic restart after power recovery and scheduled on/off provide convenient air conditioner management.
Local storage of no fewer than 1,000 historical records facilitates easy review and traceability.
Standard RS485 interface with optional SNMP interface.
03
Flexible configuration
Standard evaporative humidifier; optional electrode humidifier.
100% front access for easier installation and maintenance.
Optional top piping and top drain to accommodate different installation scenarios.
Optional AC or EC fan to meet actual requirements.
Optional dual power input; multiple power supply modes available to meet various application requirements.
Optional phase sequence fault-tolerance function for higher power supply reliability.
04

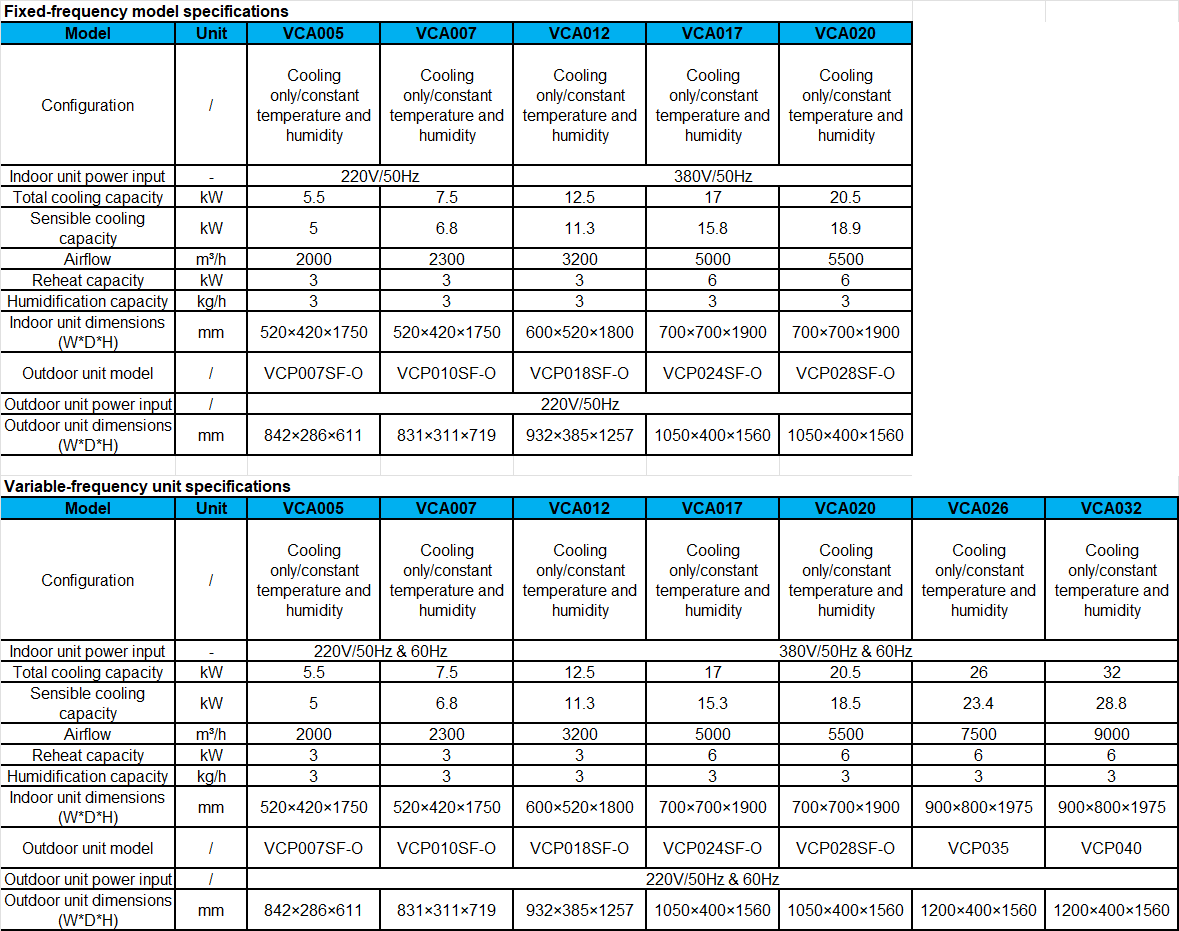

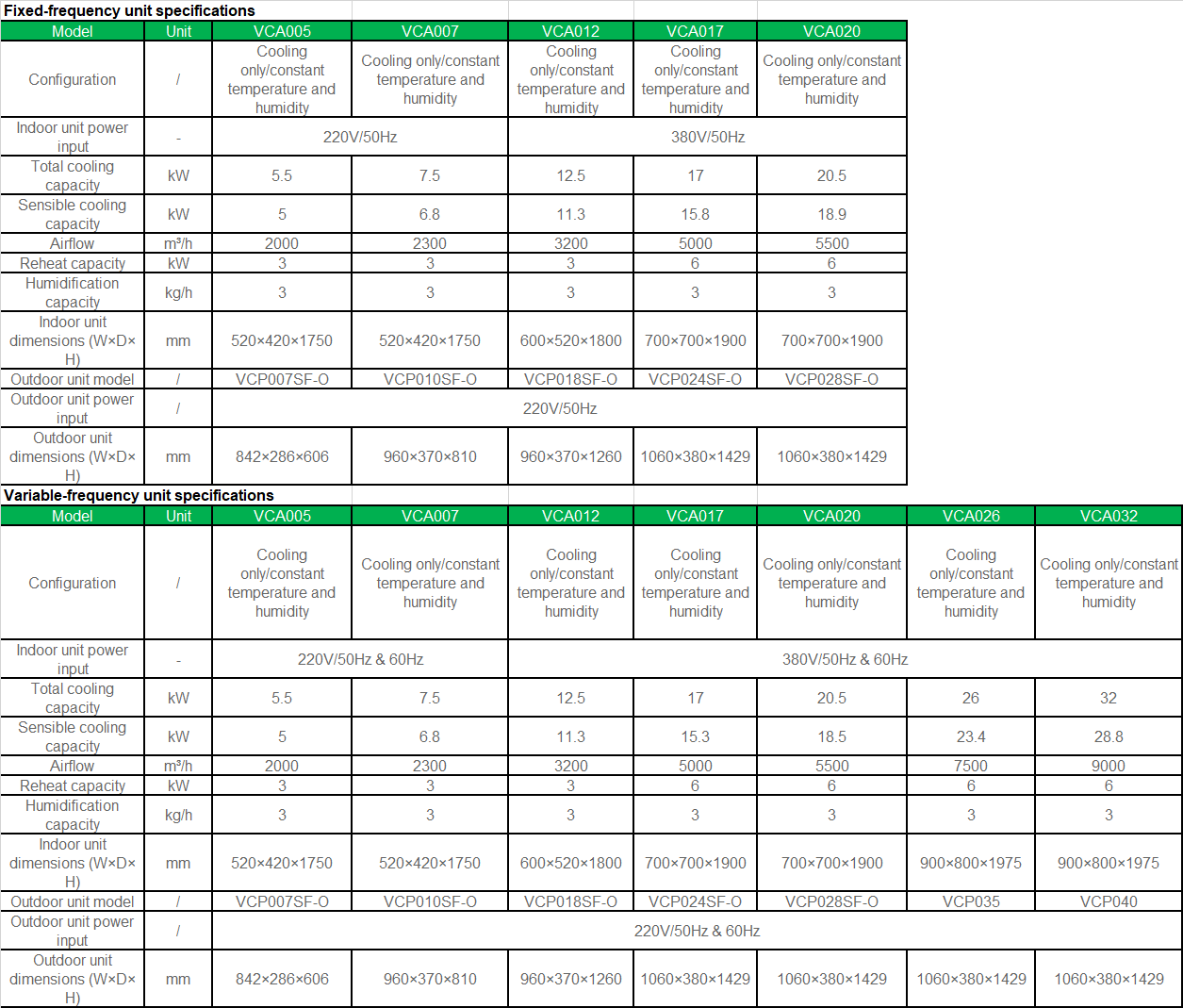

Specifications

Fixed-frequency unit specifications

Model

Unit

VCA005

VCA007

VCA012

VCA017

VCA020

Configuration

/

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Indoor unit power input

-

220V/50Hz

380V/50Hz

Total cooling capacity

kW

5.5

7.5

12.5

17.0

20.5

Sensible cooling capacity

kW

5.0

6.8

11.3

15.8

18.9

Airflow

m³/h

2000

2300

3200

5000

5500

Reheat capacity

kW

3

3

3

6

6

Humidification capacity

kg/h

3

3

3

3

3

Indoor unit dimensions (W×D×H)

mm

520×420×1750

520×420×1750

600×520×1800

700×700×1900

700×700×1900

Outdoor unit model

/

VCP007SF-O

VCP010SF-O

VCP018SF-O

VCP024SF-O

VCP028SF-O

Outdoor unit power input

/

220V/50Hz

Outdoor unit dimensions (W×D×H)

mm

842×286×606

960×370×810

960×370×1260

1060×380×1429

1060×380×1429



Variable-frequency unit specifications

Model

Unit

VCA005

VCA007

VCA012

VCA017

VCA020

VCA026

VCA032

Configuration

/

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Cooling only/constant temperature and humidity

Indoor unit power input

-

220V/50Hz & 60Hz

380V/50Hz & 60Hz

Total cooling capacity

kW

5.5

7.5

12.5

17.0

20.5

26.0

32.0

Sensible cooling capacity

kW

5.0

6.8

11.3

15.3

18.5

23.4

28.8

Airflow

m³/h

2000

2300

3200

5000

5500

7500

9000

Reheat capacity

kW

3

3

3

6

6

6

6

Humidification capacity

kg/h

3

3

3

3

3

3

3

Indoor unit dimensions (W×D×H)

mm

520×420×1750

520×420×1750

600×520×1800

700×700×1900

700×700×1900

900×800×1975

900×800×1975

Outdoor unit model

/

VCP007SF-O

VCP010SF-O

VCP018SF-O

VCP024SF-O

VCP028SF-O

VCP035

VCP040

Outdoor unit power input

/

220V/50Hz & 60Hz

Outdoor unit dimensions (W×D×H)

mm

842×286×606

960×370×810

960×370×1260

1060×380×1429

1060×380×1429

1060×380×1429

1060×380×1429
