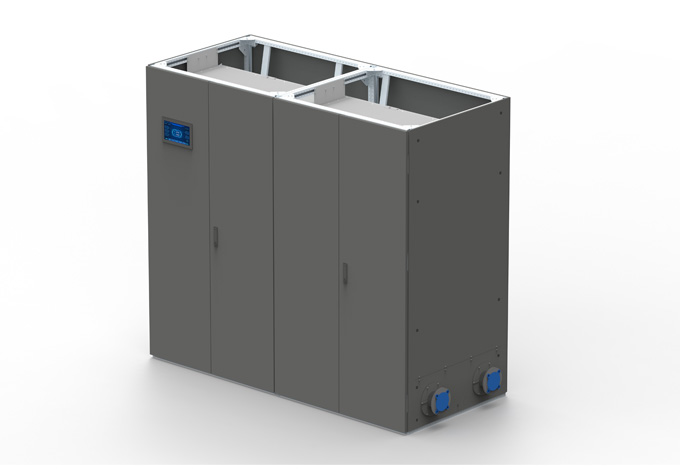

VCA Series Large Server Room Chilled-Water Precision Air Conditioner

The INVT VCA series large server room chilled-water precision air conditioner is a terminal temperature control product designed for large and medium-sized IDC, telecommunication rooms, and equipment rooms. It provides precise control of temperature, humidity, and air cleanliness. Typically, it forms a complete cooling system together with cooling towers, chillers, water pumps, and chilled-water piping, ensuring an optimal operating environment for in-rack equipment, servers, industrial process equipment, telecommunication equipment, UPS, power distribution equipment, and batteries.

·Cooling type: Chilled water
·Total cooling capacity: 36.6–255kW
·Airflow: 8000–51000m³/h
  • VCA Series Large Server Room Chilled-Water Precision Air Conditioner
  • VCA Series Large Server Room Chilled-Water Precision Air Conditioner
VideoVideo
ImagesImages
  • VCA Series Large Server Room Chilled-Water Precision Air Conditioner
    VCA Series Large Server Room Chilled-Water Precision Air Conditioner
  • VCA Series Large Server Room Chilled-Water Precision Air Conditioner
  • VCA Series Large Server Room Chilled-Water Precision Air Conditioner
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More

Features

High efficiency and energy saving
High airflow, low enthalpy difference, and high sensible heat ratio to meet the temperature control requirements of the server room.
High-efficiency backward-curved EC centrifugal fan with dynamic speed adjustment based on heat load.
In the downflow configuration, the unit achieves more than 20% energy savings compared with conventional installations.
Large-surface-area A- or V- cooling coil for optimized airflow distribution and enhanced heat exchange efficiency.
Motorized proportional two-way water valve from a world-class brand, providing dynamic, continuously variable output according to load demand.
Eco-friendly, energy-saving evaporative humidifier.
01
High safety and reliability
High-quality components to enhance reliability from the ground up.
Intelligent power monitoring, with alarms for phase loss, phase reversal, overvoltage, undervoltage, overfrequency, underfrequency, and other power anomalies.
Uninterrupted 24/7/365 operation.
Fault self-diagnosis and multiple protection mechanisms for comprehensive safeguarding of the unit.
02
Intelligent control
10-inch premium true-color touchscreen, providing real-time display of key parameters and temperature/humidity trend curves.
Multi-level password protection with hierarchical access control.
RS485 and SNMP interfaces, supporting web-based access and alarm email notifications.
Supports networking and group control of up to 64 units, enabling functions such as scheduled rotation and fault-based rotation.
Capable of recording various data with historical data query, supporting storage of over 2,000 records.
Features automatic restart after power recovery, remote on/off control, and scheduled on/off functions.
03
Flexible configuration
Multiple air supply options are available, such as downflow supply, ducted upflow supply, and top front supply with plenum.
Optional dual power supply modules, surge protectors, and other components to enhance equipment reliability.
Optional differential pressure sensor for airflow regulation based on pressure difference, ensuring precise air delivery and energy efficiency.
Multiple humidification types, such as electrode humidification.
Custom design to meet special requirements.
04

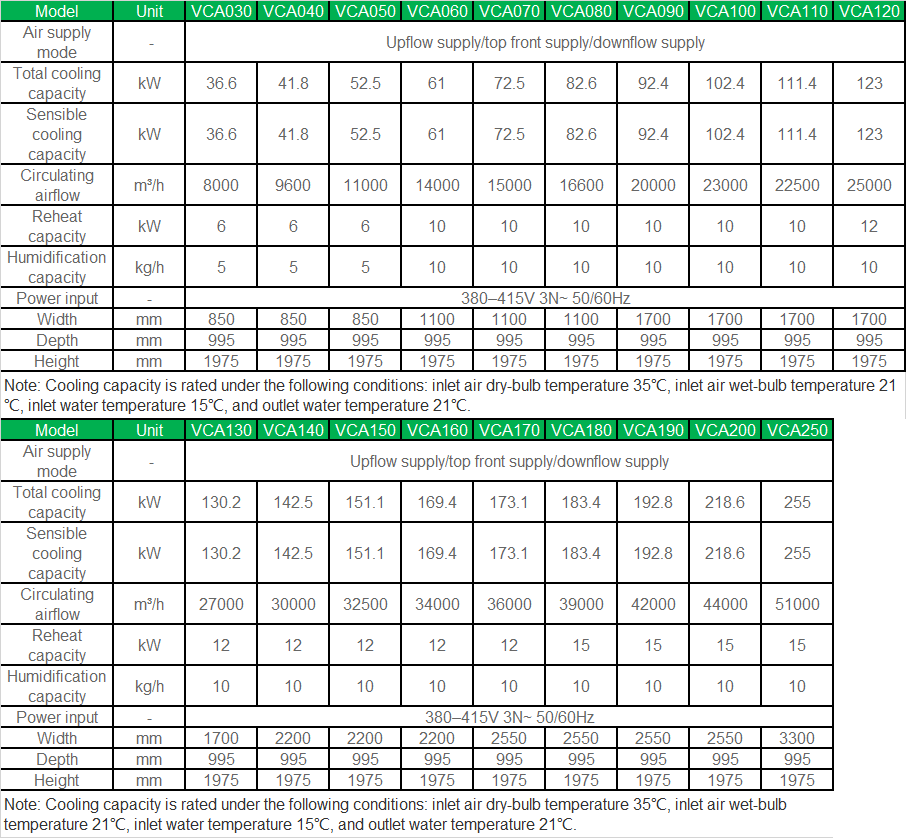

Specifications

Model

Unit

VCA030

VCA040

VCA050

VCA060

VCA070

VCA080

VCA090

VCA100

VCA110

VCA120

Air supply mode

 -

Upflow supply/top front supply/downflow supply

Total cooling capacity

kW

36.6

41.8

52.5

61.0

72.5

82.6

92.4

102.4

111.4

123.0

Sensible cooling capacity

kW

36.6

41.8

52.5

61.0

72.5

82.6

92.4

102.4

111.4

123.0

Circulating airflow

m³/h

8000

9600

11000

14000

15000

16600

20000

23000

22500

25000

Reheat capacity

kW

6.0

6.0

6.0

10.0

10.0

10.0

10.0

10.0

10.0

12.0

Humidification capacity

kg/h

5.0

5.0

5.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

Power input

-

380–415V 3N~ 50/60Hz

Width

mm

850

850

850

1100

1100

1100

1700

1700

1700

1700

Depth

mm

995

995

995

995

995

995

995

995

995

995

Height

mm

1975

1975

1975

1975

1975

1975

1975

1975

1975

1975

Note: Cooling capacity is rated under the following conditions: inlet air dry-bulb temperature 35℃, inlet air wet-bulb temperature 21℃, inlet water temperature 15℃, and outlet water temperature 21℃.



Model

Unit

VCA130

VCA140

VCA150

VCA160

VCA170

VCA180

VCA190

VCA200

VCA250

Air supply mode

 -

Upflow supply/top front supply/downflow supply

Total cooling capacity

kW

130.2

142.5

151.1

169.4

173.1

183.4

192.8

218.6

255.0

Sensible cooling capacity

kW

130.2

142.5

151.1

169.4

173.1

183.4

192.8

218.6

255.0

Circulating airflow

m³/h

27000

30000

32500

34000

36000

39000

42000

44000

51000

Reheat capacity

kW

12.0

12.0

12.0

12.0

12.0

15.0

15.0

15.0

15.0

Humidification capacity

kg/h

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

Power input

-

380–415V 3N~ 50/60Hz

Width

mm

1700

2200

2200

2200

2550

2550

2550

2550

3300

Depth

mm

995

995

995

995

995

995

995

995

995

Height

mm

1975

1975

1975

1975

1975

1975

1975

1975

1975

Note: Cooling capacity is rated under the following conditions: inlet air dry-bulb temperature 35℃, inlet air wet-bulb temperature 21℃, inlet water temperature 15℃, and outlet water temperature 21℃.
