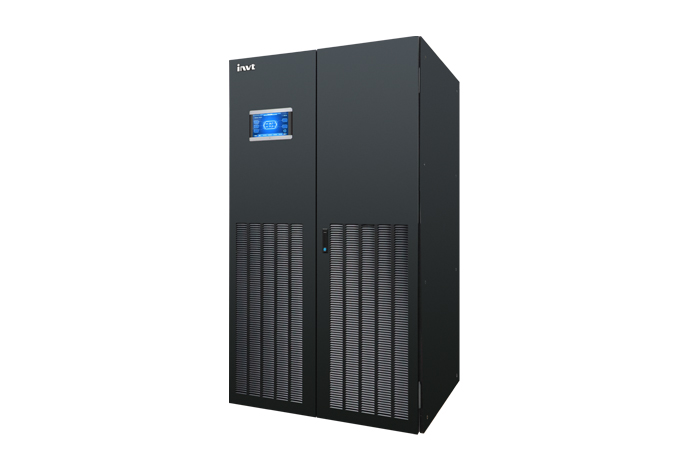

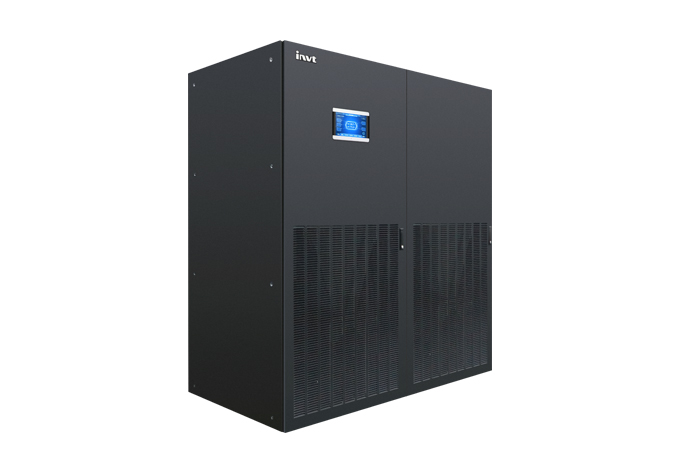

VCA Series Large Server Room Precision Air Conditioner

The INVT VCA series precision air conditioner is designed for medium- to large-scale IDC, telecommunication rooms, and other equipment rooms, providing precise control of temperature, humidity, and air cleanliness. It ensures an optimal operating environment for in-rack equipment, servers, industrial process equipment, telecommunication equipment, UPS, power distribution equipment, batteries, and more.

·Cooling type: Air cooling
·Cooling capacity: 27–120kW
·Airflow: 8000–30000m³/h
  • VCA Series Large Server Room Precision Air Conditioner
  • VCA Series Large Server Room Precision Air Conditioner
  • VCA Series Large Server Room Precision Air Conditioner
ImagesImages
  • VCA Series Large Server Room Precision Air Conditioner
  • VCA Series Large Server Room Precision Air Conditioner
  • VCA Series Large Server Room Precision Air Conditioner
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More

Features

High efficiency and energy saving
High airflow, low enthalpy difference, and high sensible heat ratio to meet the temperature control requirements of the server room.
Compliant scroll compressor from a leading industry brand for higher efficiency and smoother operation.
High-efficiency backward-curved EC centrifugal fan with speed adjustment based on real-time heat load to maximize energy savings.
The entire series features electronic expansion valves for fast response and precise flow regulation.
Large-surface-area V-/A-shaped evaporators for optimized air distribution and higher heat exchange efficiency.
Variable-frequency outdoor fan with speed control according to system pressure changes for higher operational efficiency.
01
High safety and reliability
Uses certified high-quality components for enhanced reliability from the ground up.
Undergoes rigorous and repeated testing and validation to meet high standards and ensure high-quality delivery.
Designed for 24/7 continuous operation throughout the year, with a long service life and low maintenance costs.
Intelligent monitoring of power supply voltage, power frequency, and three-phase imbalance of the air conditioner.
Dual electrical control box design with separation of power and control circuits to prevent signal interference.
02
Intelligent control
10-inch premium full-color capacitive touchscreen, multi-level password protection, and expert system self-check with diagnostics for enhanced intelligent operation.
Comprehensive monitoring and display of airflow and cooling capacity, with multiple display modes including graphical status and temperature/humidity curves.
Supports networking of up to 64 air conditioners, enabling scheduled rotation, fault-based rotation, cascade control, and prevention of conflicting operations.
Features automatic restart after power recovery, scheduled on/off control, and other functions for easier air conditioner management.
Large local storage capacity, supporting over 2,000 historical records for convenient access and traceability.
Standard RS485 interface with optional SNMP interface.
03
Flexible configuration
Multiple air supply options are available, such as downflow supply, ducted upflow supply, and top front supply with plenum.
Pull-out electrical control box design for easy and efficient on-site maintenance.
The modular frame structure allows disassembly and assembly without cutting copper pipes, facilitating on-site handling.
Optional condensate drain pump, elevation difference kit, refrigerant pump kit, and water-cooled heat exchange module.
Optional built-in low-temperature kit to eliminate the need for on-site piping, simplifying installation.
Optional multiple remote temperature and humidity sensors, water leak sensor, and more.
04

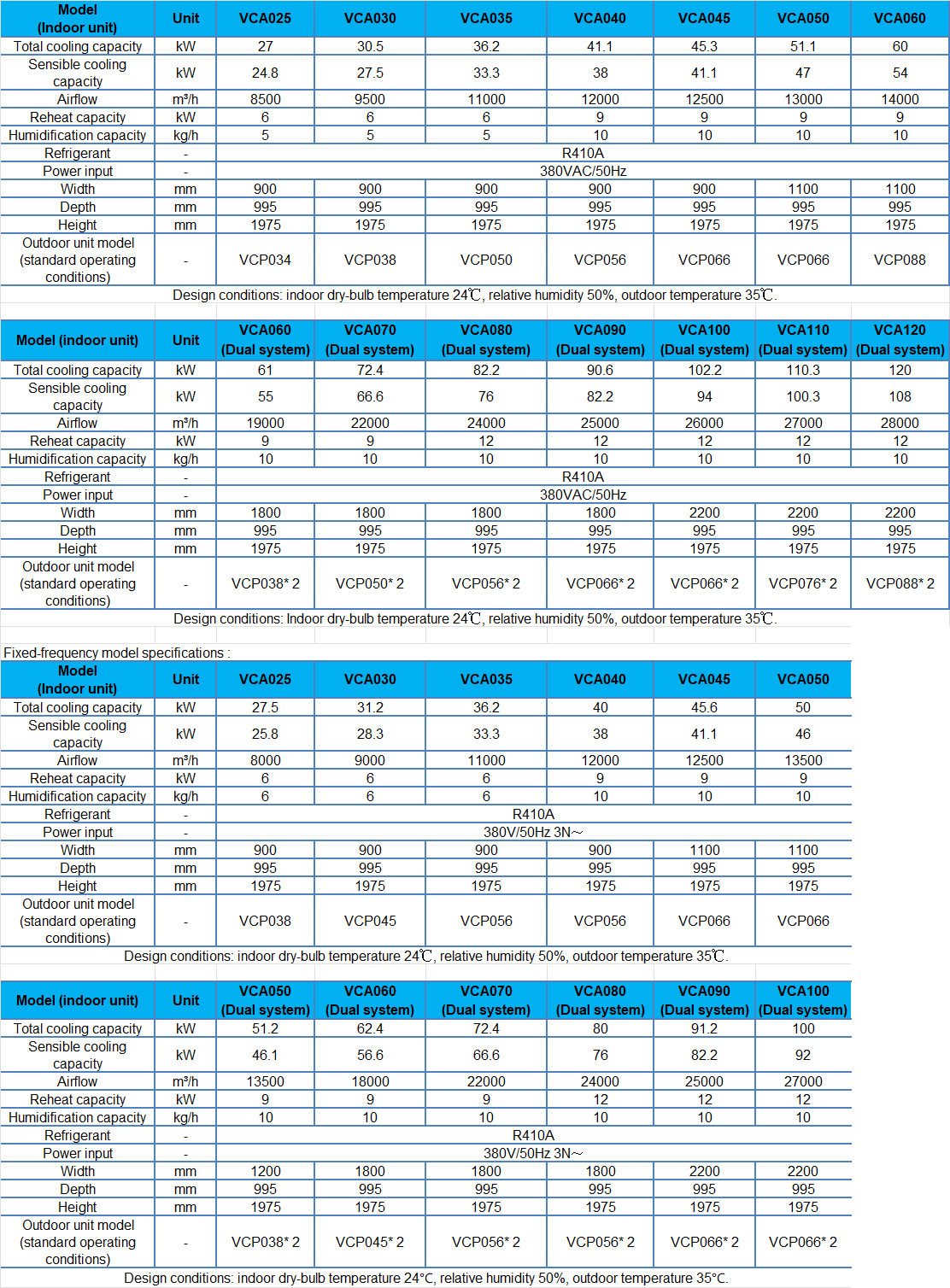

Specifications

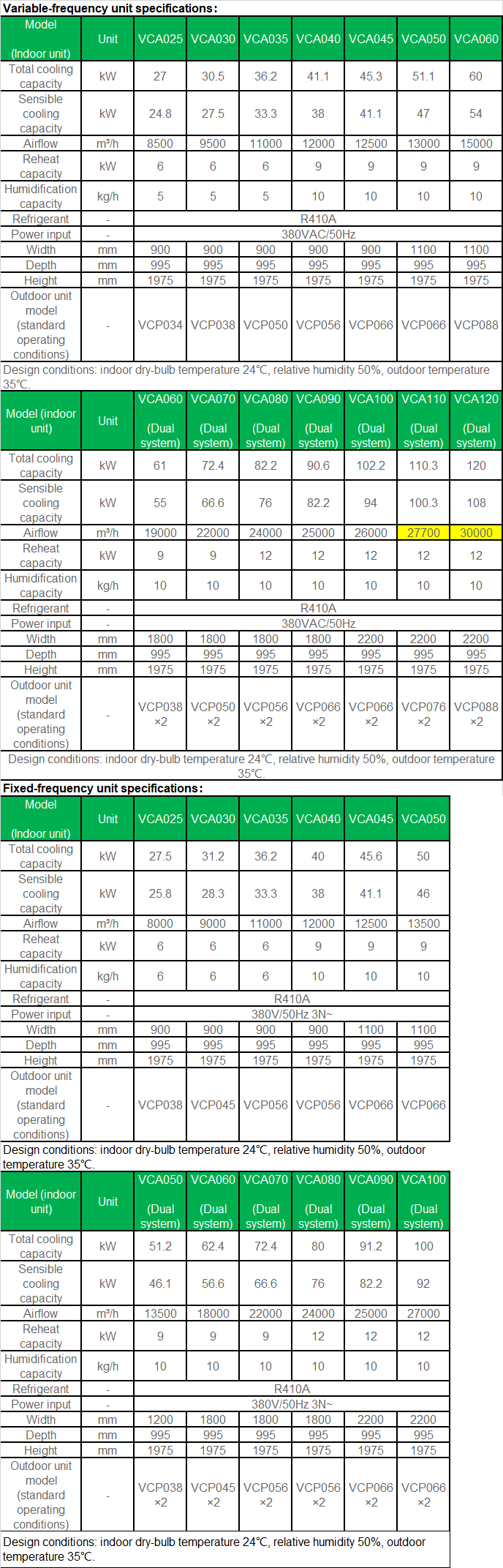

Variable-frequency unit specifications:



Model

(Indoor unit)

Unit

VCA025

VCA030

VCA035

VCA040

VCA045

VCA050

VCA060

Total cooling capacity

kW

27

30.5

36.2

41.1

45.3

51.1

60

Sensible cooling capacity

kW

24.8

27.5

33.3

38

41.1

47

54

Airflow

m³/h

8500

9500

11000

12000

12500

13000

15000

Reheat capacity

kW

6

6

6

9

9

9

9

Humidification capacity

kg/h

5

5

5

10

10

10

10

Refrigerant

-

R410A

Power input

-

380VAC/50Hz

Width

mm

900

900

900

900

900

1100

1100

Depth

mm

995

995

995

995

995

995

995

Height

mm

1975

1975

1975

1975

1975

1975

1975

Outdoor unit model (standard operating conditions)

-

VCP034

VCP038

VCP050

VCP056

VCP066

VCP066

VCP088

Design conditions: indoor dry-bulb temperature 24℃, relative humidity 50%, outdoor temperature 35℃.

Model (indoor unit)

Unit

VCA060

(Dual system)

VCA070

(Dual system)

VCA080

(Dual system)

VCA090

(Dual system)

VCA100

(Dual system)

VCA110

(Dual system)

VCA120

(Dual system)

Total cooling capacity

kW

61

72.4

82.2

90.6

102.2

110.3

120

Sensible cooling capacity

kW

55

66.6

76

82.2

94

100.3

108

Airflow

m³/h

19000

22000

24000

25000

26000

27700

30000

Reheat capacity

kW

9

9

12

12

12

12

12

Humidification capacity

kg/h

10

10

10

10

10

10

10

Refrigerant

-

R410A

Power input

-

380VAC/50Hz

Width

mm

1800

1800

1800

1800

2200

2200

2200

Depth

mm

995

995

995

995

995

995

995

Height

mm

1975

1975

1975

1975

1975

1975

1975

Outdoor unit model (standard operating conditions)

-

VCP038×2

VCP050×2

VCP056×2

VCP066×2

VCP066×2

VCP076×2

VCP088×2

Design conditions: indoor dry-bulb temperature 24℃, relative humidity 50%, outdoor temperature 35℃.



Fixed-frequency unit specifications



Model

(Indoor unit)

Unit

VCA025

VCA030

VCA035

VCA040

VCA045

VCA050

Total cooling capacity

kW

27.5

31.2

36.2

40.0

45.6

50.0

Sensible cooling capacity

kW

25.8

28.3

33.3

38.0

41.1

46.0

Airflow

m³/h

8000

9000

11000

12000

12500

13500

Reheat capacity

kW

6

6

6

9

9

9

Humidification capacity

kg/h

6

6

6

10

10

10

Refrigerant

-

R410A

Power input

-

380V/50Hz 3N~

Width

mm

900

900

900

900

1100

1100

Depth

mm

995

995

995

995

995

995

Height

mm

1975

1975

1975

1975

1975

1975

Outdoor unit model (standard operating conditions)

-

VCP038

VCP045

VCP056

VCP056

VCP066

VCP066

Design conditions: indoor dry-bulb temperature 24℃, relative humidity 50%, outdoor temperature 35℃.



Model (indoor unit)

Unit

VCA050

(Dual system)

VCA060

(Dual system)

VCA070

(Dual system)

VCA080

(Dual system)

VCA090

(Dual system)

VCA100

(Dual system)

Total cooling capacity

kW

51.2

62.4

72.4

80.0

91.2

100.0

Sensible cooling capacity

kW

46.1

56.6

66.6

76.0

82.2

92.0

Airflow

m³/h

13500

18000

22000

24000

25000

27000

Reheat capacity

kW

9

9

9

12

12

12

Humidification capacity

kg/h

10

10

10

10

10

10

Refrigerant

-

R410A

Power input

-

380V/50Hz 3N~

Width

mm

1200

1800

1800

1800

2200

2200

Depth

mm

995

995

995

995

995

995

Height

mm

1975

1975

1975

1975

1975

1975

Outdoor unit model (standard operating conditions)

-

VCP038×2

VCP045×2

VCP056×2

VCP056×2

VCP066×2

VCP066×2

Design conditions: indoor dry-bulb temperature 24℃, relative humidity 50%, outdoor temperature 35℃.
