ICA417 Series 4G Data Terminal

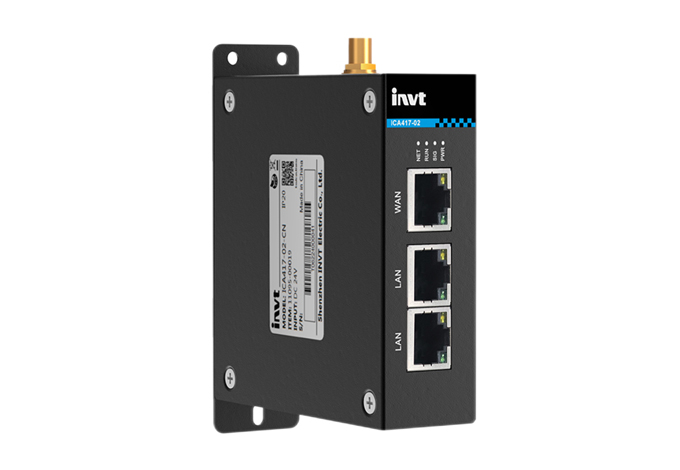

ICA417 Series 4G Data Terminal

The ICA Series communication adapters are highspeed, universal 4G IoT wireless data terminals that use public carrier networks to provide users with longrange wireless data transmission. The product features a highperformance industrialgrade communication processor and an industrialgrade wireless module, with an embedded realtime operating system as the software foundation. It offers one industrial serial port (RS232/RS485) and three standard Ethernet ports (one WAN port, two LAN ports with switch and routing capabilities). It can connect directly to serial or Ethernet devices, supports VPN tunneling, and provides remote data monitoring and remote firmware upgrade functions.

·Highspeed 4G
·Three network ports: switch / routing
·Attractive design / comprehensive international versions
Submit an Inquiry
  • ICA417 Series 4G Data Terminal
  • ICA417 Series 4G Data Terminal
ImagesImages
  • ICA417 Series 4G Data Terminal
  • ICA417 Series 4G Data Terminal
Overview
Features
Specifications
Downloads
More Resources
更多支持
Enquire

Features

Standard and Easy to Use
Provides standard RS485/RS232 interfaces, supports local serial software upgrades
Intelligent data terminal – enters datatransfer state immediately after poweron
Powerful central management software for convenient device management (optional)
Supports remote wireless upgrades, remote policy configuration, easy system configuration and maintenance interface
01
Powerful Functionality
Provides a standard TTL interface for local serial software upgrades
Supports OTA (OverTheAir) remote upgrades and remote policy configuration
Supports a device cloud management platform, enabling remote management and ensuring device intelligence
Builtin standard TCP/IP protocol stack, supports VPN transparent data transmission
Direct connection to serial devices; supports collection of up to 40 groups of Modbus registers per terminal device
Convenient system configuration and maintenance interface – flexible configuration of parameters such as remote server IP and port number
Modbus query addresses and collection intervals can be customised, enabling datasaving upload mechanisms
Supports basestation positioning / GNSS global satellite positioning for realtime, accurate device location (optional)
02
Stable and Reliable
WDT watchdog design with comprehensive antidisconnection mechanisms to ensure system stability
RS232/RS485 interfaces and SIM/UIM card slot internally protected with 15kV ESD protection
Power input with builtin reversepolarity and overvoltage protection
03

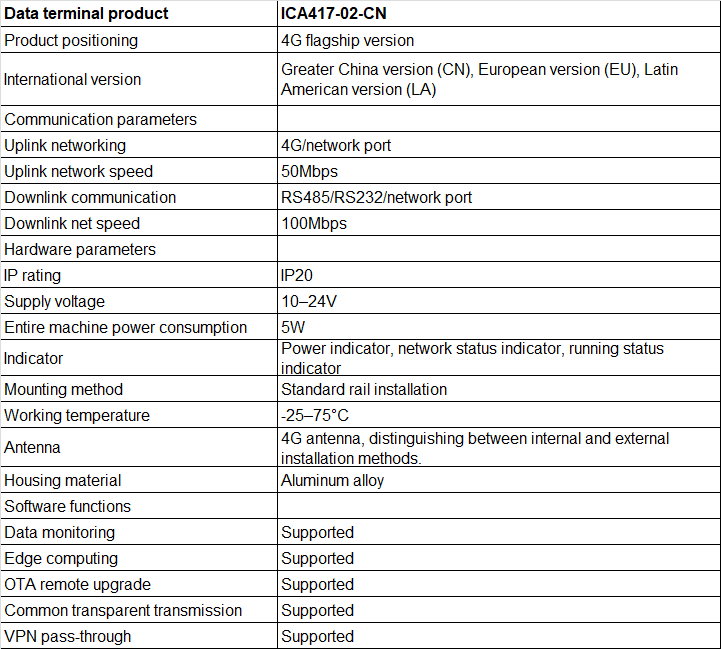

Specifications

Data Terminal Model

ICA41702CN

Product Positioning

4G flagship version

International Version

Greater China (CN), Europe (EU), Latin America (LA)

Communication Parameters

Uplink Network

4G / Ethernet

Uplink Speed

50 Mbps

Downlink Interface

RS485 / RS232 / Ethernet

Downlink Speed

100 Mbps

Hardware Parameters

Protection Rating

IP20

Supply Voltage

10 – 24 V

Total Power Consumption

5 W

Indicator LEDs

Power, Network, and Status LEDs

Mounting Method

DINrail mounting

Operating Temperature

25 to +75 °C

Antenna

4G antenna, either internal or external mounting

Housing Material

Aluminium alloy

Software Functions

Data Monitoring

Supported

Edge Computing

Supported

OTA Remote Upgrade

Supported

Normal Transparent Transmission

Supported

VPN Tunnel

Supported
