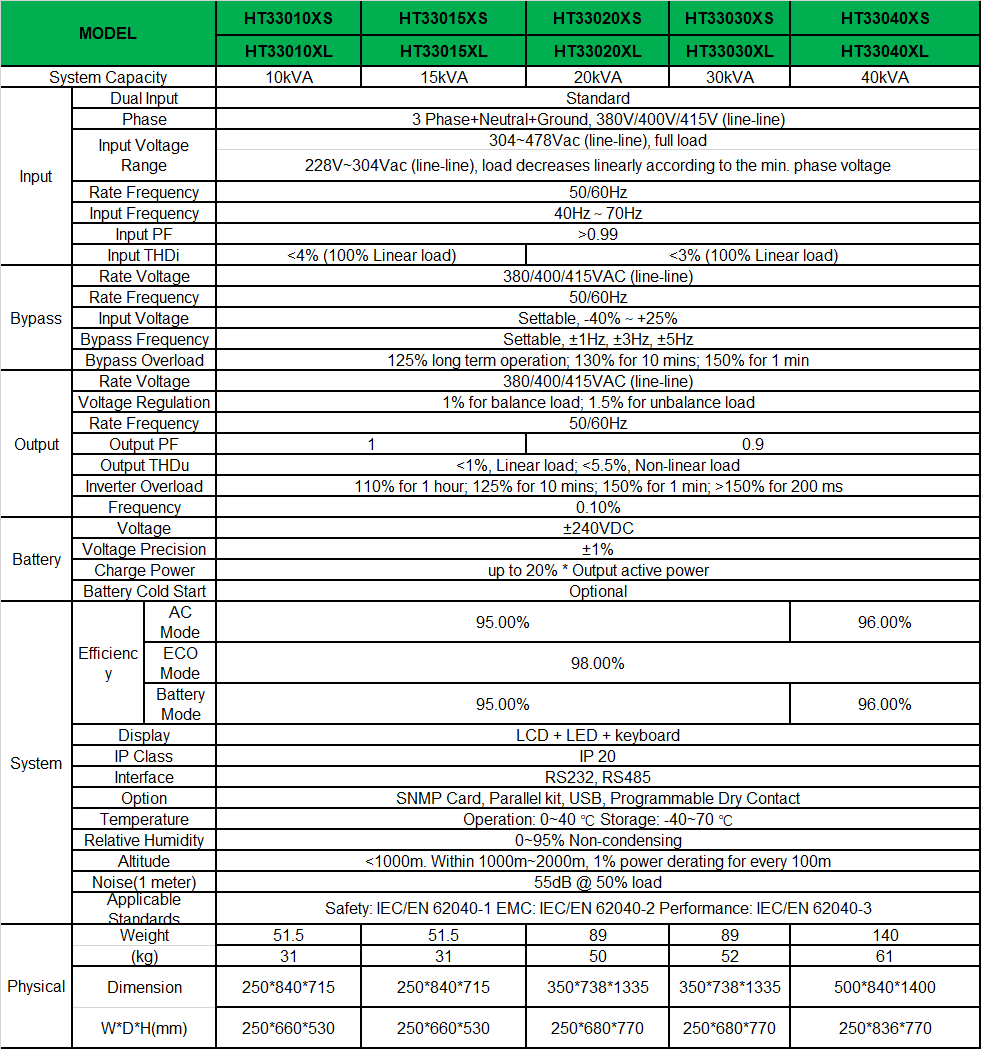

MODEL | HT33010XS | HT33015XS | HT33020XS | HT33030XS | HT33040XS | ||
HT33010XL | HT33015XL | HT33020XL | HT33030XL | HT33040XL | |||
System Capacity | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | ||
Input | Dual Input | Standard | |||||
Phase | 3 Phase+Neutral+Ground, 380V/400V/415V (line-line) | ||||||
Input Voltage Range | 304~478Vac (line-line), full load 228V~304Vac (line-line), load decreases linearly according to the min. phase voltage | ||||||
Rate Frequency | 50/60Hz | ||||||
Input Frequency Range | 40Hz～70Hz | ||||||
Input PF | >0.99 | ||||||
Input THDi | <4% (100% Linear load) | <3% (100% Linear load) | |||||
Bypass | Rate Voltage | 380/400/415VAC (line-line) | |||||
Rate Frequency | 50/60Hz | ||||||
Input Voltage Range | Settable, -40%～+25% | ||||||
Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||||
Bypass Overload | 125% long term operation; 130% for 10 mins; 150% for 1 min | ||||||
Output | Rate Voltage | 380/400/415VAC (line-line) | |||||
Voltage Regulation | 1% for balance load; 1.5% for unbalance load | ||||||
Rate Frequency | 50/60Hz | ||||||
Output PF | 1 | 0.9 | |||||
Output THDu | <1%, Linear load; <5.5%, Non-linear load | ||||||
Inverter Overload | 110% for 1 hour; 125% for 10 mins; 150% for 1 min; >150% for 200 ms | ||||||
Frequency Precision | 0.1% | ||||||
Battery | Voltage | ±240VDC | |||||
Voltage Precision | ±1% | ||||||
Charge Power | up to 20% * Output active power | ||||||
Battery Cold Start | Optional | ||||||
System | Efficiency | AC Mode | 95.0% | 96.0% | |||
ECO Mode | 98.0% | ||||||
Battery Mode | 95.0% | 96.0% | |||||
Display | LCD + LED + keyboard | ||||||
IP Class | IP 20 | ||||||
Interface | RS232, RS485 | ||||||
Option | SNMP Card, Parallel kit, USB, Programmable Dry Contact | ||||||
Temperature | Operation: 0~40 ℃ Storage: -40~70 ℃ | ||||||
Relative Humidity | 0~95% Non-condensing | ||||||
Altitude | <1000m. Within 1000m~2000m, 1% power derating for every 100m | ||||||
Noise(1 meter) | 55dB @ 50% load | ||||||
Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||||
Physical | Weight (kg) | 51.5 | 51.5 | 89 | 89 | 140 | |
31 | 31 | 50 | 52 | 61 | |||
Dimension W*D*H(mm) | 250*840*715 | 250*840*715 | 350*738*1335 | 350*738*1335 | 500*840*1400 | ||
250*660*530 | 250*660*530 | 250*680*770 | 250*680*770 | 250*836*770 | |||
Popular Searches:
HT33 Series Tower Online UPS 10-40kVA (380V/400V/415V)
HT33 series UPS applies advanced technology that increases performance and reliability: two high speed DSPs with completed digital control to ensure high quality of power supply, high input power factor and low input current distortion.
·Tower UPS
·10~40kVA
·Three Phase in, Three Phase
ImagesOverview
Features
Specifications
Downloads
More Resources
客户案例
相关视频
更多支持
Features
High efficiency, up to 96%.
01
High input PF＞0.99; Input current THDi＜4%.
02
Multi-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuit.
03
Four circuit breakers, providing full protection when fault happens.
04
Battery cold start.
05
Battery management with smart charging control, greatly extend the battery life.
06
