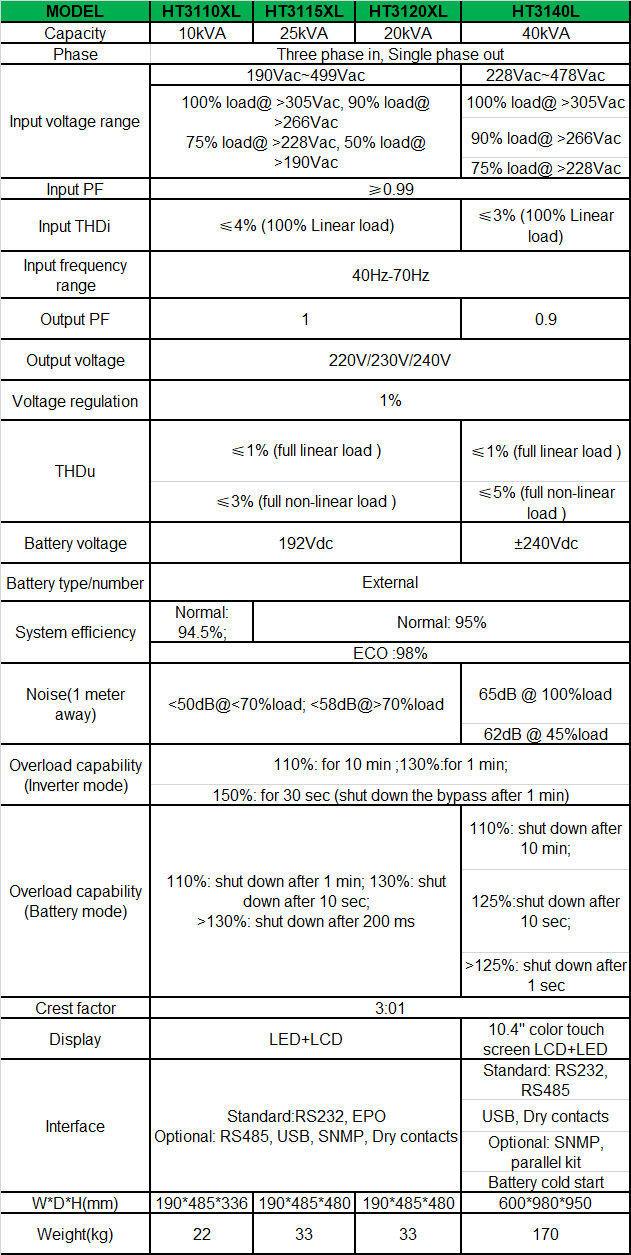

10-40kVA HT31 Series Tower Online UPS - INVT UPS

MODEL

HT3110XL

HT3115XL

HT3120XL

HT3140L

Capacity

10kVA

25kVA

20kVA

40kVA

Phase

Three phase in, Single phase out

Input voltage range

190Vac~499Vac

228Vac~478Vac

100% load@ >305Vac, 90% load@ >266Vac

75% load@ >228Vac, 50% load@ >190Vac

100% load@ >305Vac

90% load@ >266Vac

75% load@ >228Vac

Input PF

≥0.99

Input THDi

≤4% (100% Linear load)

≤3% (100% Linear load)

Input frequency range

40Hz-70Hz

Output PF

1

0.9

Output voltage

220V/230V/240V

Voltage regulation

1%

THDu

≤1% (full linear load )

≤3% (full non-linear load )

≤1% (full linear load )

≤5% (full non-linear load )

Battery voltage

192Vdc

±240Vdc

Battery type/number

External

System efficiency

Normal: 94.5%;

Normal: 95%

ECO :98%

Noise(1 meter away)

<50dB@<70%load; <58dB@>70%load

65dB @ 100%load

62dB @ 45%load

Overload capability

(Inverter mode)

110%: for 10 min ;130%:for 1 min;

150%: for 30 sec (shut down the bypass after 1 min)

Overload capability

(Battery mode)

110%: shut down after 1 min; 130%: shut down after 10 sec;

>130%: shut down after 200 ms

110%: shut down after 10 min;

125%:shut down after 10 sec;

>125%: shut down after 1 sec

Crest factor

3:1

Display

LED+LCD

10.4" color touch screen LCD+LED

Interface

Standard:RS232, EPO

Optional: RS485, USB, SNMP, Dry contacts

Standard: RS232, RS485

USB, Dry contacts

Optional: SNMP, parallel kit

Battery cold start

W*D*H(mm)

190*485*336

190*485*480

190*485*480

600*980*950

Weight(kg)

22

33

33

170
