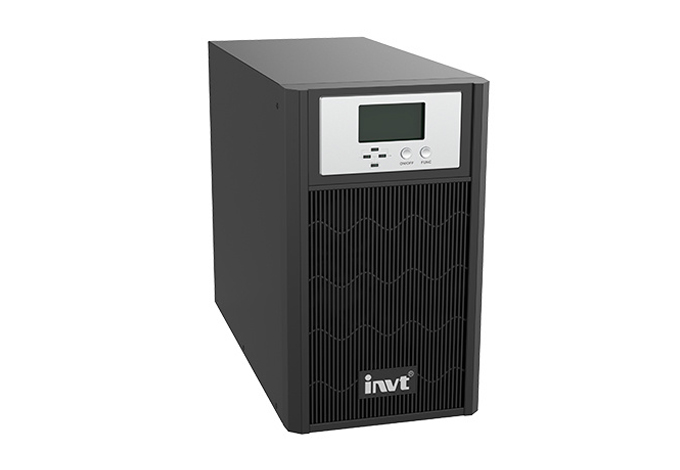

HTC11 Series Tower Online UPS 1-3kVA (220V/230V/240V) - INVT Electric Global

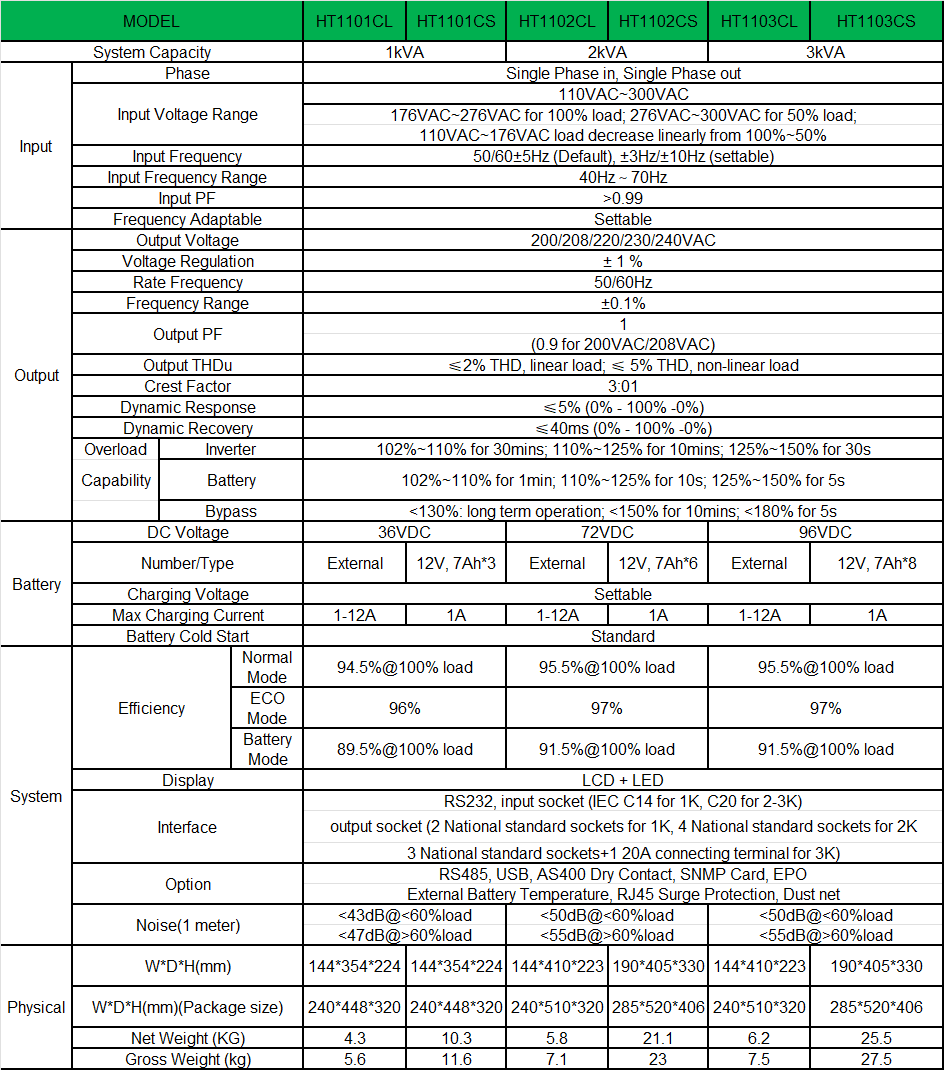

MODEL

HT1101CL

HT1101CS

HT1102CL

HT1102CS

HT1103CL

HT1103CS

System Capacity

1kVA

2kVA

3kVA

Input

Phase

Single Phase in, Single Phase out

Input Voltage Range

110VAC~300VAC

176VAC~276VAC for 100% load; 276VAC~300VAC for 50% load;

110VAC~176VAC load decrease linearly from 100%~50%

Input Frequency

50/60±5Hz (Default), ±3Hz/±10Hz (settable)

Input Frequency Range

40Hz～70Hz

Input PF

>0.99

Frequency Adaptable

Settable

Output

Output Voltage

200/208/220/230/240VAC

Voltage Regulation

± 1 %

Rate Frequency

50/60Hz

Frequency Range

±0.1%

Output PF

1

(0.9 for 200VAC/208VAC)

Output THDu

≤2% THD, linear load; ≤ 5% THD, non-linear load

Crest Factor

3:1

Dynamic Response

≤5% (0% - 100% -0%)

Dynamic Recovery

≤40ms (0% - 100% -0%)

Overload

Capability

Inverter

102%~110% for 30mins; 110%~125% for 10mins; 125%~150% for 30s

Battery

102%~110% for 1min; 110%~125% for 10s; 125%~150% for 5s

Bypass

<130%: long term operation; <150% for 10mins; <180% for 5s

Battery

DC Voltage

36VDC

72VDC

96VDC

Number/Type

External

12V, 7Ah*3

External

12V, 7Ah*6

External

12V, 7Ah*8

Charging Voltage

Settable

Max Charging Current

1-12A

1A

1-12A

1A

1-12A

1A

Battery Cold Start

Standard

System

Efficiency

Normal Mode

94.5%@100% load

95.5%@100% load

95.5%@100% load

ECO Mode

96%

97%

97%

Battery Mode

89.5%@100% load

91.5%@100% load

91.5%@100% load

Display

LCD + LED

Interface

RS232, input socket (IEC C14 for 1K, C20 for 2-3K)

output socket (2 National standard sockets for 1K, 4 National standard sockets for 2K

3 National standard sockets+1 20A connecting terminal for 3K)

Option

RS485, USB, AS400 Dry Contact, SNMP Card, EPO

External Battery Temperature, RJ45 Surge Protection, Dust net

Noise(1 meter)

<43dB@<60%load

<47dB@>60%load

<50dB@<60%load

<55dB@>60%load

<50dB@<60%load

<55dB@>60%load

Physical

W*D*H(mm)

144*354*224

144*354*224

144*410*223

190*405*330

144*410*223

190*405*330

W*D*H(mm)(Package size)

240*448*320

240*448*320

240*510*320

285*520*406

240*510*320

285*520*406

Net Weight (KG)

4.3

10.3

5.8

21.1

6.2

25.5

Gross Weight (kg)

5.6

11.6

7.1

23

7.5

27.5
