GD5000 Series General Medium Voltage Drive

GD5000 Series Medium Voltage VFD

GD5000 series vector medium voltage VFD is a second-generation medium voltage variable-frequency speed regulation device independently developed, designed, and produced by INVT. The system adopts mainstream power unit series connection technology, with a triple-core processor (DSP + ARM + FPGA) as the control core, and integrates motor vector control algorithms. Featuring high control accuracy, fast response, and high torque at low frequencies, it is highly suitable for energy-saving speed regulation and process improvement of medium-voltage asynchronous and synchronous motors, and has been widely applied to loads such as fans, pumps, compressors, belt conveyors, and hoists.

·250KVA–17500KVA
·3~11KV
·IP30 (Customizable for other IP rating)
  • GD5000 Series Medium Voltage VFD
  • GD5000 Series Medium Voltage VFD
ImagesImages
  • GD5000 Series Medium Voltage VFD
  • GD5000 Series Medium Voltage VFD
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More

Features

Strong grid adaptability
Served as a drafting participant for the Power Industry Standard of the People's Republic of China DL/T1648-2016 (High/Low Voltage Ride-Through).
In the event of a grid transient outage (e.g., switching, lightning), the "retention at transient voltage drop" technology enables the VFD to maintain operation without stopping within a specified time period.
After recovery from transient faults like voltage dips, the VFD automatically starts and outputs the set frequency within 0.1–1 seconds, driving the motor to the preset operating state.
01
Speed-tracking restart for all frequency bands
Regardless of the motor operating state, the VFD can accurately track and achieve “flying start". After a stop, it captures the motor back-EMF to analyze the current operating frequency of the motor. For synchronous motors, it also analyzes the rotor angle, using this data as the initial value to restart the VFD, achieving a smooth, impact-free flying start.
02
Excellent low-frequency control performance
GD5000 medium voltage VFD utilizes deadzone compensation and VF oscillation suppression algorithms to achieve:
Stable operation at low frequencies
High torque output at low frequencies

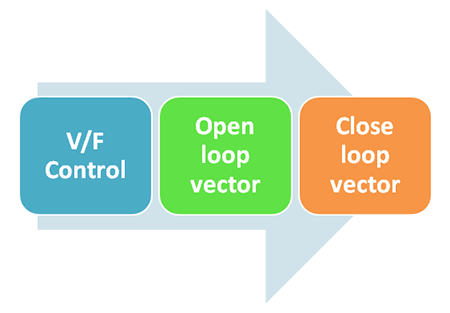

Whether operating in VF control or vector control mode, the VFD can output maximum torque at approximately 1Hz.
03
Dual power supply, stable and reliable
The control system power employs dual-redundant technology:
One source is the user-supplied AC380V power.
The other is derived internally by the VFD from the transformer secondary side.
These two external supplies form a dual-power system with automatic switchover.
An optional UPS can ensure 30 minutes of backup power in the event of a simultaneous loss of both supplies.
04
Unit bypass
In the event of a fault, the power unit can be electronically bypassed via internal IGBT modules. An optional external contactor for mechanical bypass is also supported.
05
Neutral point drifting technology
GD5000 integrates unit bypass technology with AVR technology. It supports neutral point shift bypass, which allows the VFD to maintain full-load operation within the speed range corresponding to the maximum output voltage capability even after a bypass event. It also supports symmetrical bypass mode.
06
Master-slave control
The multi-motor drive solution enables coordinated control of multiple motors, achieving power balance.
Fiber-optic loop connection supports master-slave control for up to 16 motors. The master can be flexibly configured according to on-site requirements.
07
Synchronous switching
Using “phase-lock following” control technology, it achieves smooth and impact-free switching of the motor between variable frequency and power frequency. It is suitable for one-driving-more motor control systems and soft startup of high-capacity motors.
08

Specifications

Item

Two-quadrant

Four-quadrant

Input

Voltage class

AC 3PH

AC 3PH

3kV

3.3kV

4.16kV

6kV

6.6kV

10kV

11kV

6kV

10kV

Voltage fluctuation range

-15%–+10%

Voltage frequency

50/60Hz; ±5%

Power factor

≥0.97 (when fully loaded)

Efficiency

≧ 96% (when fully loaded)

Current harmonic

≦4%

≦2%

≦4%

Output

Voltage range

0–Rated input voltage

Frequency range

0–120Hz (The product needs to be customized when the frequency exceeds 120Hz)

Current harmonic

≦4%

≦2%

≦4%

Control performance

Control mode

V/F control, open-loop vector control, and closed-loop vector control.

Speed ratio

1:50 (V/F); 1:100 (open-loop vector control); 1:200 (closed-loop vector control)

Speed control accuracy

±1% of max. speed (VF); ±0.4% of max. speed (open-loop vector control); ±0.2% of max. speed (closed-loop vector control)

Torque response time

< 200ms (open-loop vector control); < 100ms (closed-loop vector control)

Starting torque

150% of rated torque at 0.5Hz (SVC); 180% of rated torque at 0Hz (VC)

Overload capacity

120%: 60s (every 10 minutes)


180%: immediate protection is carried out.

ACC/DEC time

0–3600s (customizable)

Regenerative control mode

None

Synchronous rectification control technology

Regeneration ability

None

100%, the maximum regenerative power of the VFD is the same as the maximum output power

User terminal

Digital input

12 digital inputs

8 digital inputs (expandable and programmable)

Digital output

10 relay outputs (5 NO, 5 NO/NC). It can be extended to 12 outputs.

8 relay outputs (expandable and programmable)

Analog input

4 inputs: AI1, AI2, AI3 (0–10V/4–20mA); AI4 (-10V–10V)

3 inputs: AI1, AI2: 0–10V/0–20mA; AI3: -10V–10V

Analog output

3 outputs: AO1, AO2, AO3 (0–10V/4–20mA); 3 outputs: AO4, AO5, AO6* (4–20mA)

Four analog outputs: AO1, AO2, AO3, AO4: 0–10V/0–20mA

Protection functions

System protection

Including protection against overcurrent, overvoltage, undervoltage, motor overload, VFD overload, phase loss, overheat, temperature controller fault, access fault, and communication fault.

Unit protection

Including protection against undervoltage, overvoltage, power supply fault, overheat, input phase loss, VCE fault, power supply fault, communication fault, and bypass fault.

HMI

Touch screen

Communication mode

Supports the Modbus protocol, provides the standard RS485 interface, PROFIBUS, PROFINET and Ethernet.

Mounting method

Cabinet installation

IP rating

IP30 (The product needs to be customized for other IP rating)

Noise level

≤80dB

Incoming/outgoing method

Bottom in and bottom out (Customizable for other wiring methods)

Cooling method

Forced air cooling

Control power supply

AC 380V±10%

MTBF

100000h

Ambient temperature

-10°C–+40°C. Derating is needed when the temperature exceeds 40°C. The max. running temperature is 50°C.

 Note: Preheating is needed before starting when the temperature is below 0°C.

Ambient humidity

5%–95%, no condensation

Altitude

Below 1000m. Derating is needed when the altitude exceeds 1000m. Derate by 1% for every increase of 100m.

Storage environment

Store the product in a place free of dust, direct sunshine, flammable or corrosive gas, oil pollution, steam and vibration, and strong magnetic fields (Customized solutions are available for special environments).

Vibration amplitude

≤0.59g
