Item | Specifications | |
Input | Input voltage | AC 3PH 380V (-15%)–440V (+10%); Rated voltage: 400V AC 3PH 220V (-15%)–240V (+10%); Rated voltage: 230V AC 1PH 220V (-15%)–240V (+10%); Rated voltage: 230V |
| Input frequency | 50Hz or 60Hz; Allowed range: 47–63Hz, with a maximum change rate of 20%/s | |
| Short-circuit capacity | According to the definition in IEC 61439-1, the maximum allowable short-circuit current at the incoming end is 100 kA. Therefore, the VFD is applicable to scenarios where the transmitted current in the circuit is no larger than 100kA when the VFD runs at the maximum rated voltage. | |
Output | Output voltage (V) | 0–Input voltage (V) |
| Output frequency (Hz) | 0–200Hz | |
Control performance | Control mode | Sensorless vector control (SVC) mode, and feedback vector control (FVC) mode |
| Motor type | Asynchronous motor (AM) and permanent magnet synchronous motor (SM) | |
| Speed ratio | For AMs: 1:200 (SVC) For SMs: 1:20 (SVC); 1:1000 (FVC) | |
| Speed control accuracy | ±0.5% (SVC); ±0.05% (FVC) | |
| Speed fluctuation | ±0.3% (SVC) | |
| Torque response | <20ms (SVC); <10ms (FVC) | |
| Torque control accuracy | 10% (SVC); 5% (FVC) | |
| Starting torque | For AMs: 0.3Hz/150% (SVC) For SMs: 2.5Hz/150% (SVC); 0Hz/200% (FVC) | |
| Overload capacity | 150% of the rated current for 60s; 200% of the rated current for 10s | |
Optional parts and functions | Dynamic braking | Already built in the entire series |
| EMC filter | The C3 filter circuit has been built in the VFD as a standard part. C2 filters are optional parts and can be built into the VFD. | |
| SM star shorting function | Supports the electronic star shorting function | |
| OTA software upgrade | External IoT 4G module (not standard part) to achieve software upgrade through cloud | |
| Operator (keypad) | The VFD supports LED and LCD film keypads, and supports optional external LED keypad. | |
| Running time protection | A protection date can be set to issue a warning and disable the VFD when the time is reached (this function is only supported when the local film LCD keypad is configured). | |
Peripheral interface | Terminal analog input resolution | No more than 20mV |
| Terminal digital input resolution | No more than 2ms | |
| Analog input | Two inputs. AI1/AI2: 0–10V or 0–20mA | |
| Digital input | Ten regular inputs. Max. frequency: 1KHz; internal impedance 3.3kΩ | |
| Digital output | One Y terminal open collector output | |
| Relay output | Three programmable relay outputs. RO1A: NO; RO1B: NC; RO1C: common; Two groups of NO output: RO2A, RO2C; RO3A, RO3C NO; Contact capacity: 3A/AC250V, 1A/DC30V | |
| Communication interface | One CANopen and one RS485 | |
| STO input | Two redundant inputs, SIL3 level | |
| PT100/PTC input | One input. The function can be selected through a jumper. PT100 is by default. | |
| Encoder input | Supports 5V/12V incremental encoder (Select power supply through the jumper. Default: 12V) | |
| PG card expansion | Supports incremental, sin/cos, Endat, and SSI PG cards | |
Environment requirements and certification | Mounting method | Wall mounting |
| Cooling method | Forced air cooling | |
| Temperature of running environment | -10°C – +50°C. Derating is required when the ambient temperature exceeds 40°C. | |
| Storage temperature | -30–+60℃ | |
| Ingress protection (IP) rating | IP20 | |
| Pollution degree | PD2 | |
| Applicable grid type | TN or TT type | |
| Overvoltage category | OVC Ⅲ | |
| Protective class | Class I | |
| Certification | CE (with STO) | |
Popular Searches:
GD390L Series Lift-Dedicated VFD
GD390L is a new-generation high-performance VFD specifically designed for the elevator industry. It integrates drive technology, control technology, and network communication technology into a unified design concept. The product incorporates advanced features such as STO, electronic motor sealing (electronic star sealing), C2 filter, LCD keypad, and OTA technology. It is suitable for a wide range of market applications and offers superior performance in terms of safety, reliability, drive performance, and product customization and expandability.
·2.2-37kW
·
STO SIL3, C2 EMC filter, 10s for 200% overload
·
EU CE, IEC, EN, etc.
Video
ImagesOverview

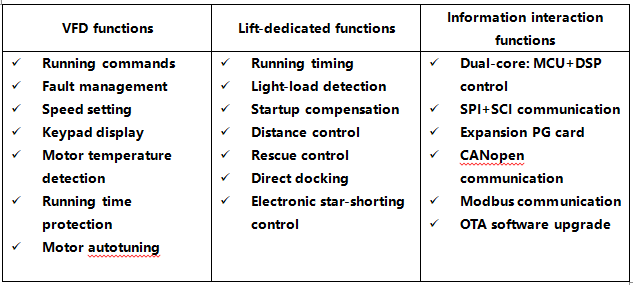

Features
Specifications
Downloads
More Resources
Case
Videos
More
Specifications
Rich Configuration
The built-in C2 filter version perfectly meets
European market requirements, saving cabinet space and reducing costs. Supports various operator types, including optional LCD and LED keypads, and can also be equipped with externally mounted LED or LCD keypads for operation.01
Safe and Reliable
Standard STO function meets SIL3
safety integrity level certification, preventing unintended motor startup when the elevator is stopped, ensuring safer operation. The electronic star sealing function is implemented through the VFD’s internal circuitry, enabling fast response and reducing elevator failure rates. A wide voltage range with strong grid adaptability helps prevent faults caused by power fluctuations.02
Powerful Functions
10s for 200% overload capacity exceeds that
of many competitors, reducing the likelihood of overload faults. Two additional S-terminals support inspection and emergency operation modes. Two emergency power input channels eliminate the need for external switching circuits. Secondary development capability is supported, helping customers enhance after-sales and maintenance value.03
Flexible and User-Friendly
By connecting to INVT Workshop software,
users can collect real-time elevator waveform data, perform analysis, and access various commissioning and diagnostic functions, making troubleshooting easier. Local USB program upgrades enable faster and more convenient updates.04
