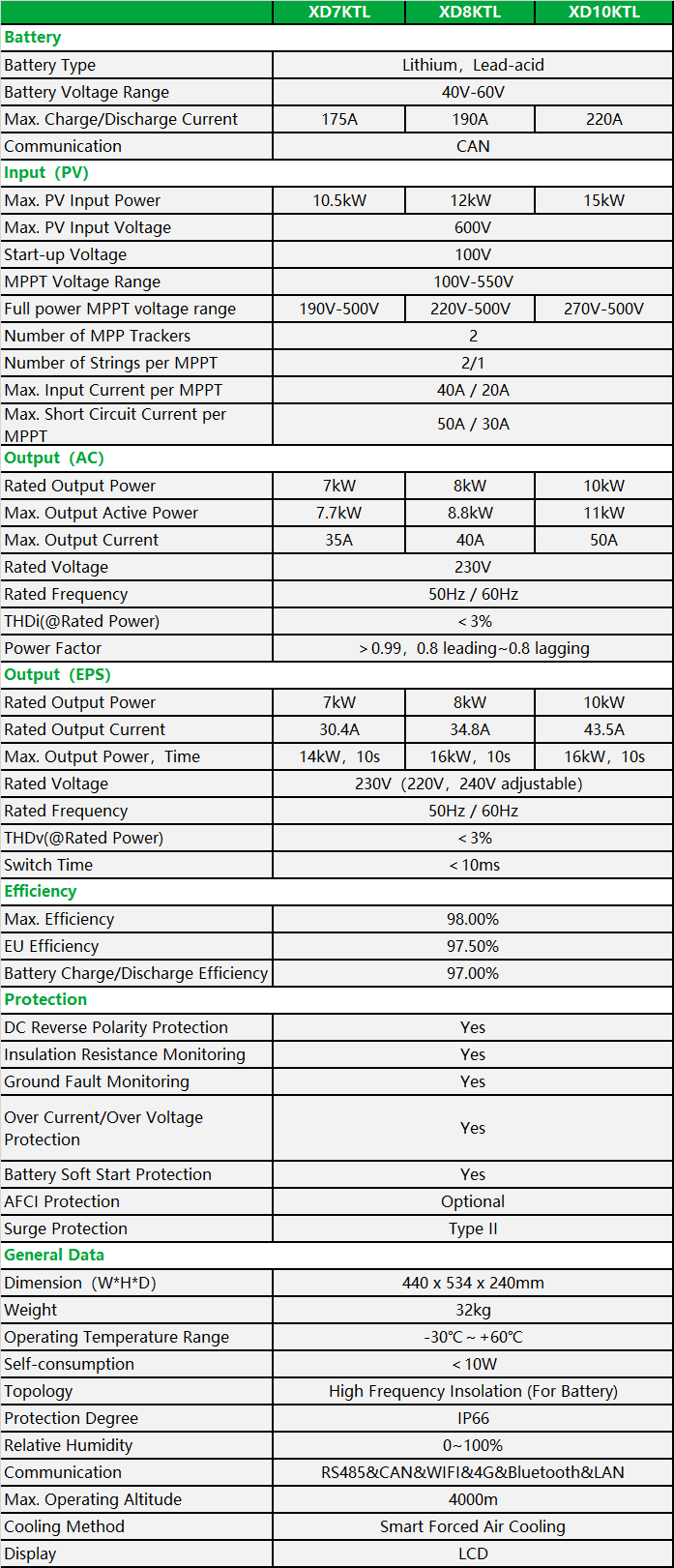

| XD7KTL | XD8KTL | XD10KTL |
| Battery | |||
| Battery Type | Lithium，Lead-acid | ||
| Battery Voltage Range | 40V-60V | ||
| Max. Charge/Discharge Current | 175A | 190A | 220A |
| Communication | CAN | ||
| Input（PV） | |||
| Max. PV Input Power | 10.5kW | 12kW | 15kW |
| Max. PV Input Voltage | 600V | ||
| Start-up Voltage | 100V | ||
| MPPT Voltage Range | 100V-550V | ||
| Full power MPPT voltage range | 190V-500V | 220V-500V | 270V-500V |
| Number of MPP Trackers | 2 | ||
| Number of Strings per MPPT | 2 / 1 | ||
| Max. Input Current per MPPT | 40A / 20A | ||
| Max. Short Circuit Current per MPPT | 50A / 30A | ||
| Output（AC） | |||
| Rated Output Power | 7kW | 8kW | 10kW |
| Max. Output Active Power | 7.7kW | 8.8kW | 11kW |
| Max. Output Current | 35A | 40A | 50A |
| Rated Voltage | 230V | ||
| Rated Frequency | 50Hz / 60Hz | ||
| THDi(@Rated Power) | ＜3% | ||
| Power Factor | ＞0.99，0.8 leading~0.8 lagging | ||
| Output（EPS） | |||
| Rated Output Power | 7kW | 8kW | 10kW |
| Rated Output Current | 30.4A | 34.8A | 43.5A |
| Max. Output Power，Time | 14kW，10s | 16kW，10s | 16kW，10s |
| Rated Voltage | 230V（220V，240V adjustable） | ||
| Rated Frequency | 50Hz / 60Hz | ||
| THDv(@Rated Power) | ＜3% | ||
| Switch Time | ＜10ms | ||
| Efficiency | |||
| Max. Efficiency | 98.00% | ||
| EU Efficiency | 97.50% | ||
| Battery Charge/Discharge Efficiency | 97.00% | ||
| Protection | |||
| DC Reverse Polarity Protection | Yes | ||
| Insulation Resistance Monitoring | Yes | ||
| Ground Fault Monitoring | Yes | ||
| Over Current/Over Voltage Protection | Yes | ||
| Battery Soft Start Protection | Yes | ||
| AFCI Protection | Optional | ||
| Surge Protection | Type II | ||
| General Data | |||
| Dimension（W*H*D） | 440 x 534 x 240mm | ||
| Weight | 32kg | ||
| Operating Temperature Range | -30℃～+60℃ | ||
| Self-consumption | ＜10W | ||
| Topology | High Frequency Insolation (For Battery) | ||
| Protection Degree | IP66 | ||
| Relative Humidity | 0~100% | ||
| Communication | RS485&CAN&WIFI&4G&Bluetooth | ||
| Max. Operating Altitude | 4000m | ||
| Cooling Method | Smart Forced Air Cooling | ||
| Display | LCD | ||
Popular Searches:
XD7-10KTL Single-phase Hybrid Inverter
The XD7-10KTL single-phase hybrid inverter features a compact, lightweight design, making installation simple and versatile across various setups. With a maximum string current of 20A, it supports high-power modules, and its EPS switching time is under 10ms. It is compatible with both lithium and lead-acid batteries. Additionally, it comes with a standard diesel generator interface, supporting generator and Smart load connections, making it ideal for diverse home energy storage applications.
·Rated Power: 7-10 kW
·
Single-phase, Low Voltage
·
Dual MPPT
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Efficient & Higher revenue
Max. Efficiency 98%2 MPP Trackers, 160% DC Input OversizingMax. PV Current 20A,Compatible with High Power Modules200% Peak Output Power at EPS Mode01
Intelligent, Simple O&M
IP66 Protection DegreeSPD Type II:DC & ACSupport AFCI Function(Optional)Support Smart I-V Curve Diagnosis Function02
Flexible & Abundant configuration
EPS Switching Time < 10msCompatible with Lithium & Lead-acid BatteriesSupport Work in Parallel ModeSupport Diesel generator & Smart Load Connection03
