| XD30KTR | XD40KTR | XD50KTR | XD60KTR | |
| Input（PV） | |||||
| Max. Input Power | 45000Wp | 60000Wp | 75000Wp | 90000Wp | |
| Max. Input Voltage | 1100V | ||||
| Start-up Voltage | 200V | ||||
| Rated Voltage | 620V | ||||
| MPPT Voltage Range | 180V-1000V | ||||
| Number of MPP Trackers | 3 | 4 | |||
| Number of Strings per MPPT | 2 | ||||
| Max. Current per MPPT | 40A | ||||
| Max. Short Circuit Current per MPPT | 60A | ||||
| Output（On-Grid） | |||||
| Rated Output Power | 30kW | 40 kW | 50 kW | 60 kW | |
| Max. Output Active Power | 33kVA | 44 kVA | 55 kVA | 66 kVA | |
| Max. Output Current | 50A | 66.7 A | 83.4 A | 100 A | |
| Max. Input Power from Grid | 45kW | 60 kW | 75 kW | 90 kW | |
| Max. Input Current from Grid | 68.4A | 91 A | 114A | 137A | |
| Rated Voltage | 3 / N / PE, 230 V / 400 Vac | ||||
| Rated Frequency | 50Hz / 60Hz | ||||
| THDi(@Rated Power) | ＜3% | ||||
| Power Factor | 0.8 leading ~ 0.8 lagging | ||||
| Battery | |||||
| Battery Type | Lithium | ||||
| Battery Voltage Range | 160V - 800V | ||||
| Full-power Voltage Range | 300V - 800V | ||||
| Max. Charge / Discharge Power | 33kW | 44kW | 55kW | 66kW | |
| Max. Charge / Discharge Current | 2*100A | ||||
| Communication | CAN | ||||
| Output（EPS） | |||||
| Rated Output Power | 30kW | 40 kW | 50 kW | 60 kW | |
| Rated Output Current | 45.6A | 60.7 A | 75.8 A | 91 A | |
| Max. Output Power，Time | 1.5 times / 10s | ||||
| Switch Time | ＜10ms | ||||
| Rated Voltage | 3 / N / PE，230V / 400Vac | ||||
| Rated Frequency | 50Hz / 60Hz | ||||
| Max. AC passthrough current | 150A | ||||
| Output (Generator) | |||||
| Max. Output Power | 30kW | 40 kW | 50 kW | 60 kW | |
| Max. Output Current | 45.6A | 60.7 A | 75.8 A | 91 A | |
| Rated Voltage | 3 / N / PE，230V / 400Vac | ||||
| Rated Frequency | 50Hz / 60Hz | ||||
| Efficiency | |||||
| Max. Efficiency | 98.40% | ||||
| European Efficiency | 97.50% | ||||
| Battery Charge/Discharge Efficiency | 97.50% | ||||
| Protection | |||||
| Protection | DC Switch, DC Reverse Polarity Protection, Anti-islanding Protection, AC Short Circuit Protection, Residual Current Monitoring, | ||||
| Surge Protection | Type II | ||||
| AFCI Protection | Optional | ||||
| General Data | |||||
| Display | LCD / LED | ||||
| Weight | 92kg | ||||
| Dimension（W*H*D） | 620 x 900 x 300 mm | ||||
| Operating Temperature Range | -30℃～+60℃ | ||||
| Cooling Method | Smart Cooling | ||||
| Protection Degree | IP66 | ||||
| Max. Operating Altitude | 4000m | ||||
| Relative Humidity | 0~100% | ||||
| Self-consumption | ＜15W | ||||
| Topology | Transfomerless | ||||
Popular Searches:

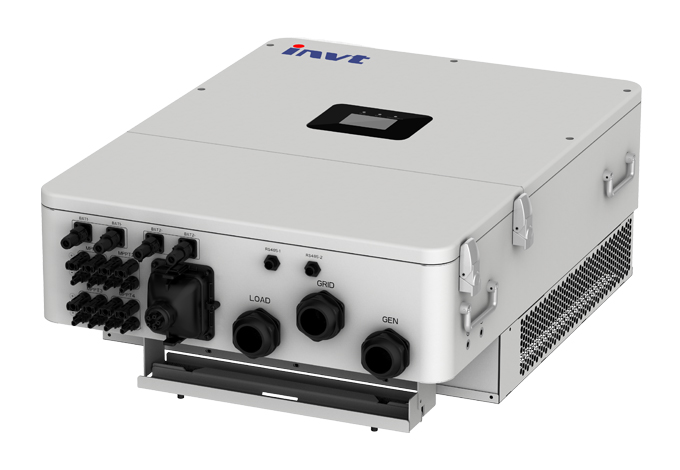

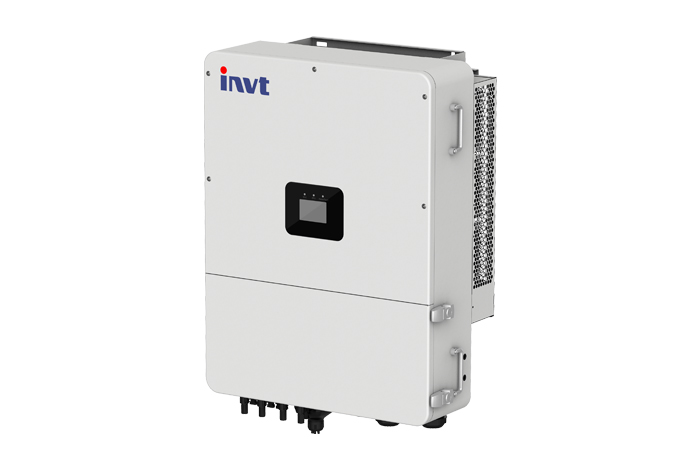

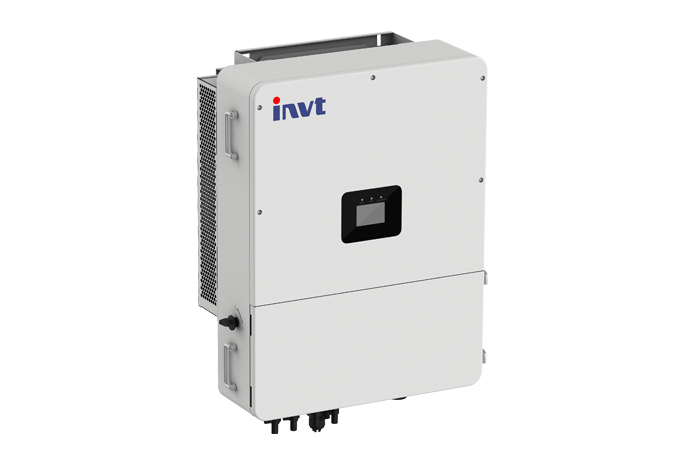

XD30-60KTR Three-phase Hybrid Inverter
The XD30-60KTR three-phase high-voltage hybrid inverter adopts a dual-channel MPPT design and is compatible with 6000W+ high-power components, realizing efficient high-power output. It supports real-time online operation and maintenance, one-key worry-free, intelligent charging and discharging control, and green power life. It suits high-end villas, communication base stations, residential electricity, and other scenarios.
·Rated Power: 30-60 kW
·
Three-phase, High Voltage
·
3/4 MPPT
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Efficient Higher Revenue
4 MPP Trackers, 150% DC input oversizingMax. PV input current 20A, compatible with high power PV modulesMax. charge/discharge current 200A, 150% EPS peak output power01
Intelligent Simple O&M
IP66 protectionDC&AC Type ll SPD: prevent lightning damageSmart I-V curve diagnosis function: locate PV string faults accurately and automatically detect faults02
Flexible Abundant Configuration
Support optional AFCI functionEPS switching under 10ms ˙ Support multi-inverters in parallelSupport 100% unbalanced output Standard generator interface, support for generator and smart load access03
