VCR Series In-Row Air-Cooled Precision Air Conditioner

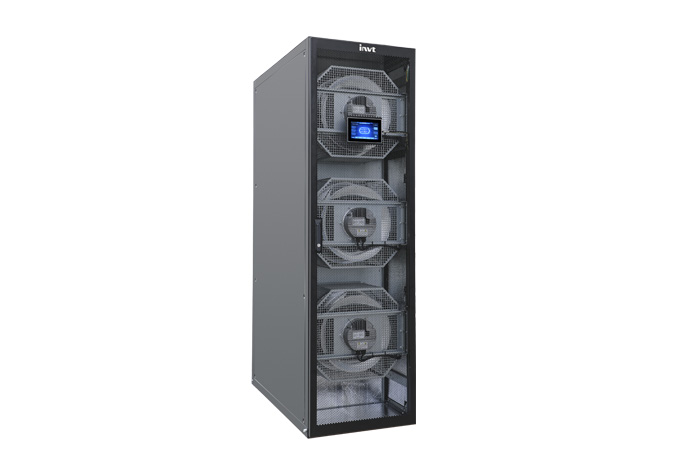

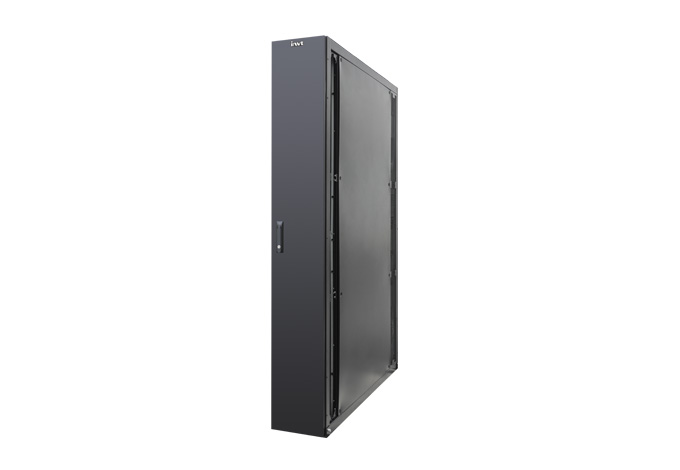

VCR Series In-Row Air-Cooled Precision Air Conditioner

The INVT VCR series in-row air-cooled precision air conditioner is an intelligent temperature control product designed for modular data centers. It is typically deployed within server cabinet rows, installed in-row with these cabinets. With enclosed hot/cold aisles, it provides efficient cooling close to heat sources, creating an ideal temperature and humidity operating environment for critical data center infrastructure.

·Cooling type: Air cooling
·Cooling capacity: 12.5–62.7kW
·Airflow: 2800–12600m³/h
Submit an Inquiry
  • VCR Series In-Row Air-Cooled Precision Air Conditioner
  • VCR Series In-Row Air-Cooled Precision Air Conditioner
  • VCR Series In-Row Air-Cooled Precision Air Conditioner
ImagesImages
  • VCR Series In-Row Air-Cooled Precision Air Conditioner
  • VCR Series In-Row Air-Cooled Precision Air Conditioner
  • VCR Series In-Row Air-Cooled Precision Air Conditioner
Overview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Enquire

Features

High efficiency and energy saving
DC variable-frequency compressor with dynamic cooling capacity adjustment from 20% to 100%, delivering cooling on demand.
High-efficiency, low-noise backward-curved EC centrifugal fan with speed adjustment based on real-time heat load to maximize energy savings.
Electronic expansion valve with faster response and more precise flow regulation, working in coordination with the variable-frequency compressor for enhanced energy efficiency.
Variable-frequency outdoor fan that adjusts smoothly and rapidly based on system pressure changes, ensuring high-efficiency operation.
High-efficiency evaporator featuring internally grooved copper tubes and hydrophilic-coated, louvered aluminum fins for superior heat exchange efficiency.
01
High safety and reliability
DC variable-frequency technology with low starting current to reduce impact on the power grid.
At low loads, the unit precisely controls supply and return air temperature and humidity.
Intelligent monitoring of power supply voltage, frequency, and three-phase imbalance.
Standard oil separator to prevent compressor damage due to oil shortage.
Standard sight glass for intuitive and effective inspection of refrigerant status in system piping.
02
Intelligent control
An advanced control system for intelligent management of the compressor, expansion valve, fan, and other components, adjusting cooling capacity and airflow on demand.
7-inch premium true-color capacitive touchscreen, offering multiple display options such as graphical status and temperature/humidity curves.
High-speed, flexible CAN communication protocol supporting group control of at least 64 units.
External connection for at least 10 temperature sensors to accurately detect temperature field variations. Standard RS485 interface with optional SNMP interface.
Multi-level password protection with hierarchical access control.
03
Flexible configuration
Standard evaporative humidifier; optional electrode humidifier.
Standard humidification circulating water pump for greater energy and water savings.
Optional centralized outdoor unit with V-shaped heat exchanger for a smaller footprint and larger heat exchange capacity.
Optional top piping and top drain to accommodate different installation scenarios.
Optional supply air grille to provide left and right air discharge.
Optional refrigerant pump free cooling module, water-cooled heat exchange module, and dual power inputs.
04

Specifications

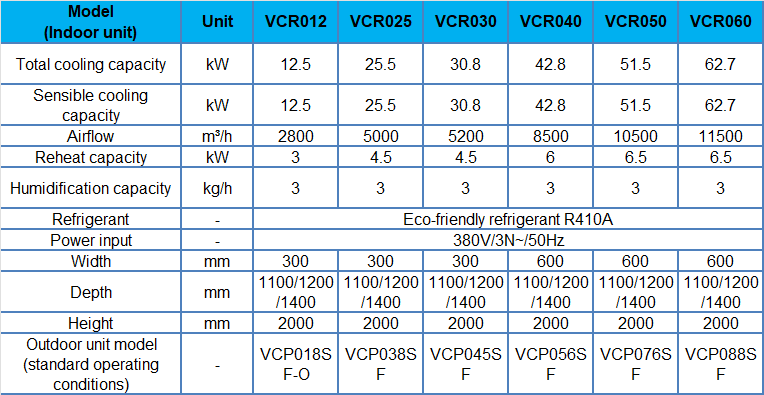

Variable-frequency unit specifications

Model (indoor unit)

Unit

VCR012

VCR025

VCR030

VCR040

VCR050

VCR060

Total cooling capacity

kW

12.5

25.5

30.8

42.8

51.5

62.7

Sensible cooling capacity

kW

12.5

25.5

30.8

42.8

51.5

62.7

Airflow

m³/h

2800

5200

6200

8600

10500

12600

Reheat capacity

kW

3

4.5

4.5

6

6.5

6.5

Humidification capacity

kg/h

3

3

3

3

3

3

Refrigerant

-

Eco-friendly refrigerant R410A

Power input

-

380V/3N~/50Hz

Width

mm

300

300

300

600

600

600

Depth

mm

1100/1200/1400

1100/1200/1400

1100/1200/1400

1100/1200/1400

1100/1200/1400

1100/1200/1400

Height

mm

2000

2000

2000

2000

2000

2000

Outdoor unit model (standard operating conditions)

-

VCP018SF-O

VCP038SF

VCP045SF

VCP056SF

VCP076SF

VCP088SF

Design conditions: indoor dry-bulb temperature 37℃, relative humidity 24%, outdoor temperature 35℃.
