SC Series In-row CDU

1. High efficiency and energy saving:
* Compatible with ASHRAE W4 water temperature standards, enabling year-round free cooling across all regions. This design offers higher energy efficiency while reducing capital investment.

2. Comprehensive and reliable:
* Standard dual power supply and 1+1 redundant circulating pump design ensure system redundancy. Critical component redundancy minimizes the risk of single points of failure, significantly improving the operational reliability of the liquid cooling system.
* Built-in constant-pressure make-up system automatically activates based on secondary-side loop pressure changes, ensuring safe and reliable operation of the secondary-side loop.
* Anti-condensation control technology intelligently adjusts the secondary-side supply fluid temperature to prevent condensation, ensuring a safe and reliable operating environment for both the secondary-side loop and server cold plates.

3. Intelligent control:
* 7-inch high-end true-color capacitive touchscreen provides comprehensive monitoring of primary and secondary side temperatures and pressures, supporting intuitive graphical status displays and temperature/pressure trend curves.
* The motorized proportional control valve regulates flow in coordination with the variable-speed circulating pump, enabling dynamic adjustment of the secondary-side supply fluid temperature according to the thermal load, with a steady-state control accuracy of up to ±0.3°C.
* Supports group control mode with both cold and hot standby, enabling scheduled rotation, fault-based rotation, and cascade control to ensure redundancy and reliability.

4. High adaptability:
* The in-rack modular design enables easy installation at any position within the server cabinet, improving cabinet space utilization.
* The in-rack installation close to IT heat sources significantly reduces the secondary-side loop piping, enabling faster and more convenient on-site deployment.
* Quick disconnect coupling as the standard interface, with multiple interface options available.

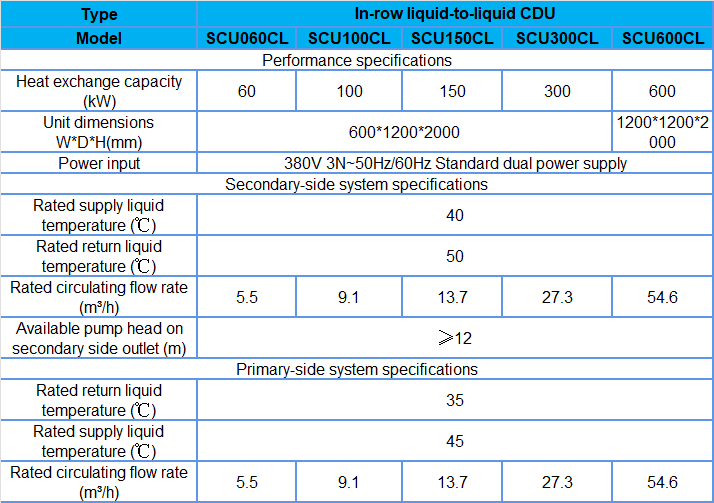

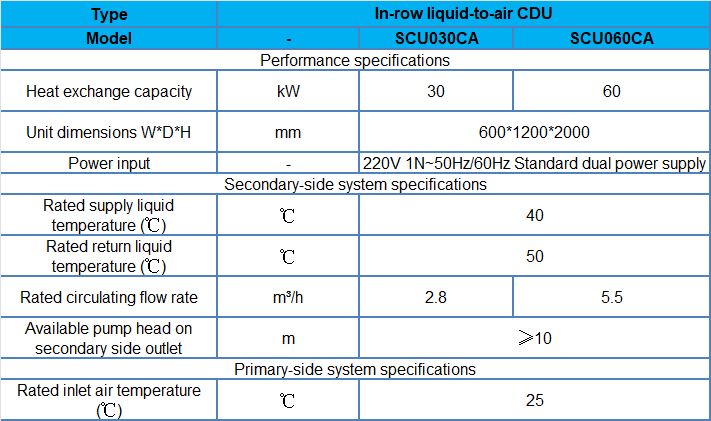

Specifications:
