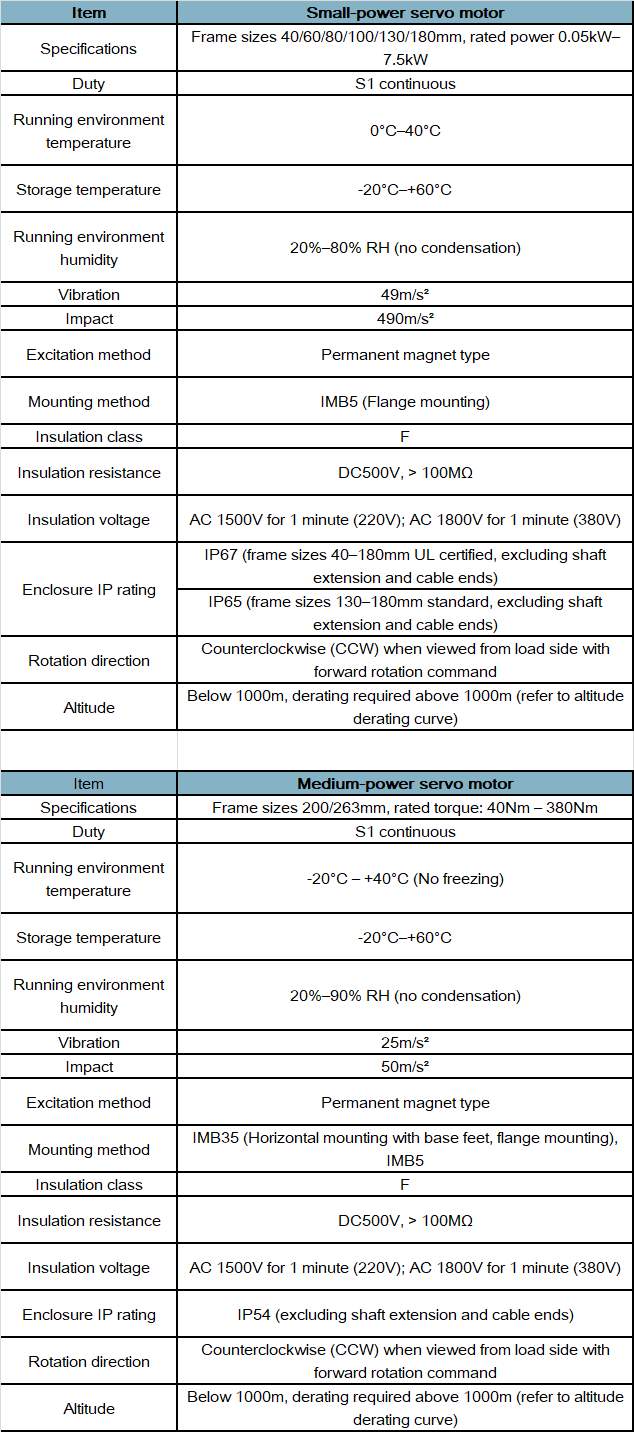

Item | Small-power servo motor |
Specifications | Frame sizes 40/60/80/100/130/180mm, rated power 0.05kW–7.5kW |
Duty | S1 continuous |
Running environment temperature | 0°C–40°C |
Storage temperature | -20°C–+60°C |
Running environment humidity | 20%–80% RH (no condensation) |
Vibration | 49m/s² |
Impact | 490m/s² |
Excitation method | Permanent magnet type |
Mounting method | IMB5 (Flange mounting) |
Insulation class | F |
Insulation resistance | DC500V, > 100MΩ |
Insulation voltage | AC 1500V for 1 minute (220V); AC 1800V for 1 minute (380V) |
Enclosure IP rating | IP67 (frame sizes 40–180mm UL certified, excluding shaft extension and cable ends) |
IP65 (frame sizes 130–180mm standard, excluding shaft extension and cable ends) | |
Rotation direction | Counterclockwise (CCW) when viewed from load side with forward rotation command |
Altitude | Below 1000m, derating required above 1000m (refer to altitude derating curve) |
Item | Medium-power servo motor |
Specifications | Frame sizes 200/263mm, rated torque: 40Nm – 495Nm |
Duty | S1 continuous |
Running environment temperature | -20°C – +40°C (No freezing) |
Storage temperature | -20°C–+60°C |
Running environment humidity | 20%–90% RH (no condensation) |
Vibration | 25m/s² |
Impact | 50m/s² |
Excitation method | Permanent magnet type |
Mounting method | IMB35 (Horizontal mounting with base feet, flange mounting), IMB5 |
Insulation class | F |
Insulation resistance | DC500V, > 100MΩ |
Insulation voltage | AC 1500V for 1 minute (220V); AC 1800V for 1 minute (380V) |
Enclosure IP rating | IP54 (excluding shaft extension and cable ends) |
Rotation direction | Counterclockwise (CCW) when viewed from load side with forward rotation command |
Altitude | Below 1000m, derating required above 1000m (refer to altitude derating curve) |
