INVT EC30 Elevator Door Drive & Motor Retrofit for Schindler Elevator Doors in Inida

Release time：2025-12-18

Click amount： 404

Abstract: INVT EC30 elevator door controller, paired with the DM30 motor, offers a smart, compact retrofit solution addressing compatibility, maintenance, and commissioning issues in legacy elevator systems. It proved especially effective in resolving persistent AMC failures in Schindler elevator installations.

Keywords: EC30 DOOR DRIVE & DM30 MOTOR

Introduction

EC30 elevator door controller is a dedicated for elevator door systems. It's designed with smaller appearance structure, lightweight and compact size, ultra-thin plastic shell to be easier to install. It also has a wide range of applications and meets the needs of various elevator door control.

Features:
* Support induction and PM motors, incremental and absolute encoders
* Fully pulse running mode without limit switches, intelligent processing while pulse loss
* Auto speed curve generation without parameter adjustment
* Fully Comply with CE certification
* Advanced functions such as One-button debugging, obstacles detection, auto demonstration, and self-adaptation to working conditions.

Customer Requirements

The client, a provider or integrator working with Schindler elevator systems, required a modern and compact elevator door control system that could replace or integrate with existing Schindler door headers due to AMC fail. The aim was to enhance door control performance, reduce commissioning time, and ensure high compatibility with contemporary elevator standards.

* Challenges:
• Need to integrate EC30 controller with Schindler’s proprietary door mechanism.
• Ensure compatibility with both synchronous (PM) and asynchronous motors.
• Require precise control via encoder feedback without limit switches.
• Simplify commissioning and maintenance processes.
• Maintain compliance with CE certification and safety regulations.

INVT Solutions

• Deployment of INVT EC30 Door Drive paired with DM30 Motor.
• Implementation of closed-loop vector control using encoder feedback for precision.
• Use of auto speed curve generation, self-learning, and one-button debugging to simplify setup.
• Integration of intelligent features such as obstacle detection, auto demonstration, and self-adaptive parameters to optimize operation under varying load conditions.

* EC30 Model & Motor Configuration list:

Product name	Model	Power rate	Input current	Output current
Door controller	EC30-0R2-S2	200W	2A	1.3A
Door motor	DM30-1.1A-01	-	1.1A

* Door drive terminals details:

Door Drive Terminals Details
PE, N, L	Single phase supply to door Drive
PE, U, V, W	Door Motor Supply
+24V, GND, CS/A, MI/B, MO/Z,	Encoder connection
CN1.1- COM	Door drive COM
DI1	Door Open signal
DI2	Door close signal
DI3	Door sensor signal
TA12	Door limit com signal
TC1	Door Open Limit (NO)
TB1	Door Open Limit (NC)
TC2	Door Close Limit (NO)
TB2	Door Close Limit (NC)
TA34	Output com Relay-2
TB3(NC)/TC3(NO)	Door closing obstruction signal
TB4(NC)/TC4(NO)	Fault output

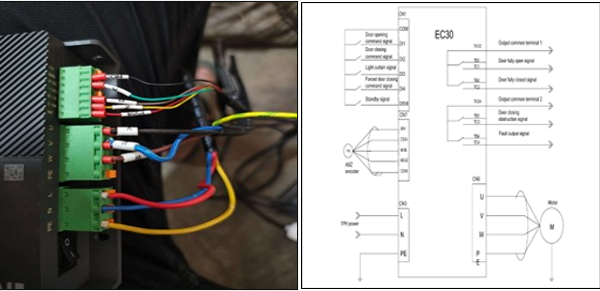

* Application wiring diagram:

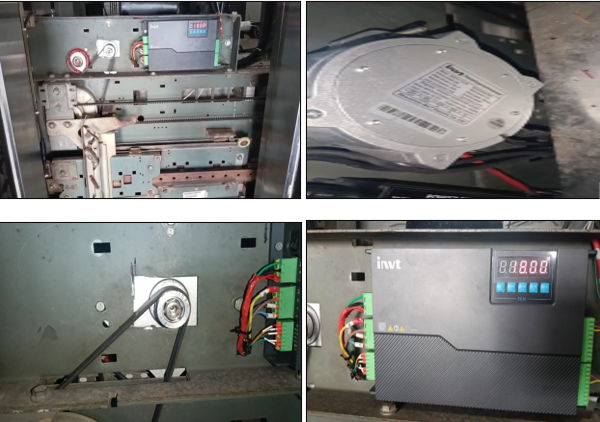

* System commissioning:

Fig. Door Drive and Motor

* Result:
• Smooth and accurate door movement with minimal manual tuning.
• Improved installation efficiency due to plug-and-play functionality and auto-learning features.
• Reduced commissioning time by over 50% compared to legacy systems.
• Seamless integration with Schindler door mechanisms.
• Achieved stable performance under various operating conditions with low fault occurrence.

Customer Benefits

The implemented INVT solution brought substantial improvements across multiple fronts:
• Installation Efficiency: Reduced commissioning time by over 50% due to auto-learning and one-button tuning functions.
• System Stability: Maintained smooth and accurate door operations under varying load conditions with low fault rates.
• Energy Efficiency: Optimized motor performance contributed to reduced energy consumption.
• User Satisfaction: The client reported significant improvements in door alignment, operational smoothness, and responsiveness. They praised the reduction in skilled labour required for setup.

Conclusion

The EC30 door controller system, when integrated with the DM30 motor and Schindler door mechanism, represents a forward-looking solution in elevator modernization. Its intelligent control capabilities, flexible configuration, and user-friendly features position it as an ideal upgrade path for aging infrastructure. Looking ahead, solutions like EC30 are likely to set a new benchmark in elevator door automation, supporting broader industry trends such as smart building integration, energy efficiency, and predictive maintenance. INVT’s technology continues to enhance its brand reputation by delivering scalable, high-performance systems tailored to real-world retrofit challenges.
