INVT GD390L Inverter Enables Smooth Operation of 2000KG Gearless PM Elevator Motor for Montanari Lifts in India

Abstract: One of our key partners used a gearless PM motor for goods lift, need to smoothly start this motor with 2000kg load. This article gives detailed solution of INVT GD390L inverter on this application. Engineering practices, market survey and feedback shows that GD390L has good control performance and stability on this application.

Keywords: INVT GD390L, Gearless Machine.

I. Background (fulfil customer background)
 The customer is in the north region, mainly focus on goods lift, annually 100 lifts. Previously mainly used the geared motor, this time gearless PM motor with SinCos encoder was used.

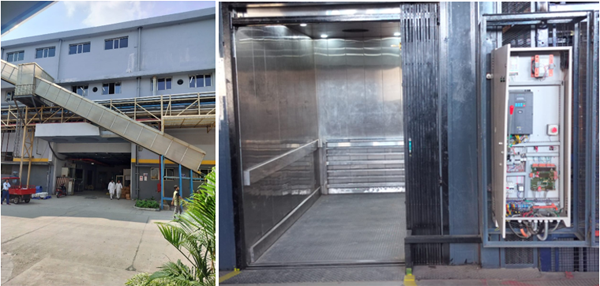

Fig: Site Photo and Elevator photo

II. Challenges
 1. The motor controller should be compatible with gearless PM motor
 2. The motor controller should support SinCos encoder
 3. Need strong overload capability
 4. Smooth start and stop the motor with heavy load
 5. Simplify commissioning and maintenance processes.

III. INVT solutions
 1. The site lift has below detail:

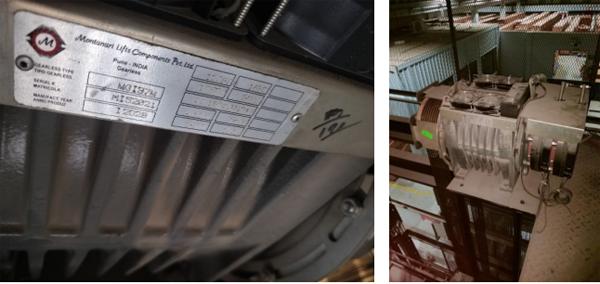

Fig:  Motor with nameplate

GD390L electrical configuration
 According to the lift configuration and the demanding functions, we provide the electrical solution as follow. Considering higher ambient temperature, one grade higher of machine rating is selected.

Tab 2 Configuration list:

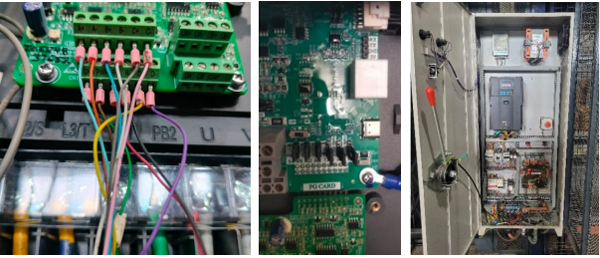

Fig: GD390L Control Panel, Encoder connection and Jumper settings

Advantage of this Solution:
* Ability to drive asynchronous (Geared) and synchronous (Gearless) motors;
* Support open loop control mode without encoder and closed loop control mode with encoder;
* Static tuning for the initial pole angle of PM motor;
* Support multiple type of encoder: incremental, sine-cosine, absolute encoders and built in incremental PG card;
* ACC/DEC S-Curve Algorithm: Improve comfort during ACC, DEC and stop.

IV. Customer benefits:
* Smooth running: S curve, improve the comfort
* Safe running: Standard STO (SIL3), electronic star shorting for PM motor
* Easy commissioning: Static tune the motor
* Strong Overloading capacity 150% rated current for 60s; 200% rated current for 10s
* After installation of GD390L, the elevator runs perfectly. The customer is very satisfied.
