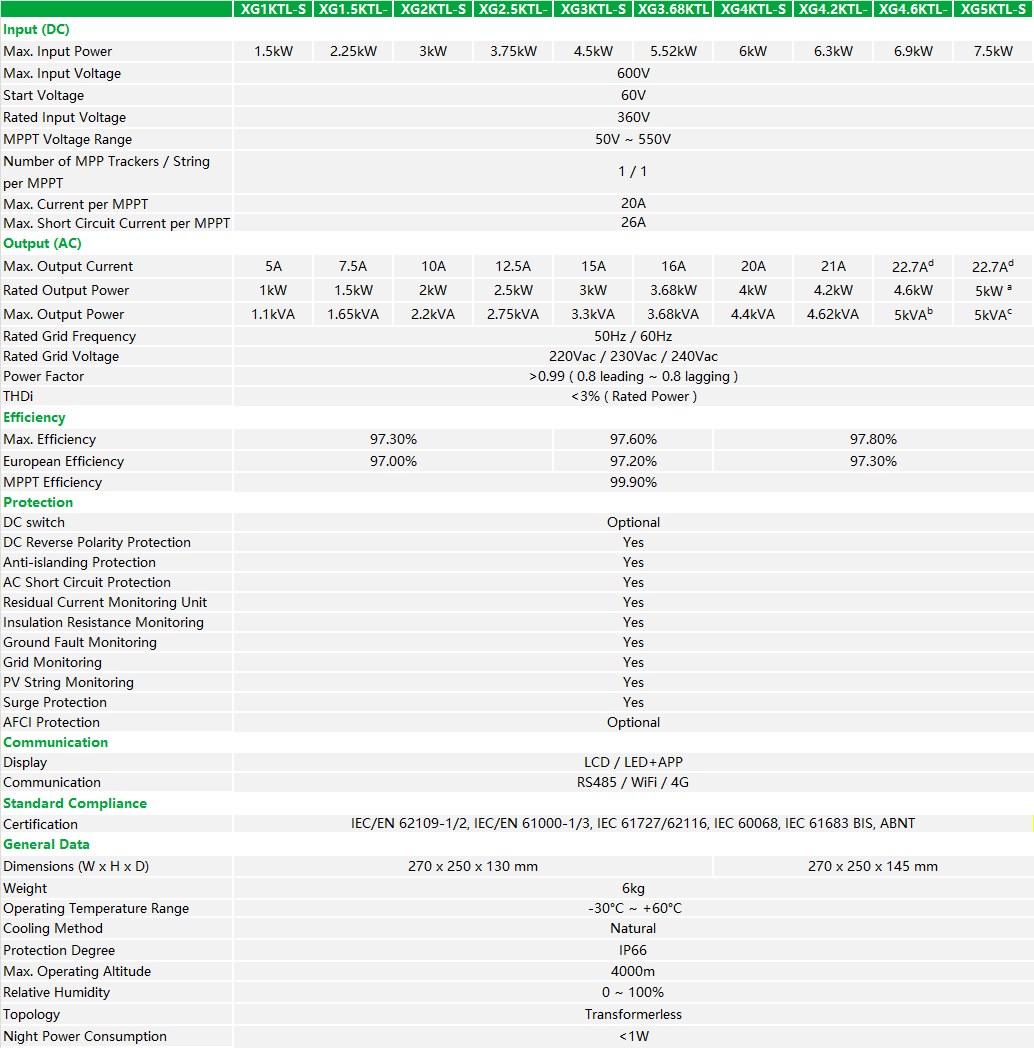

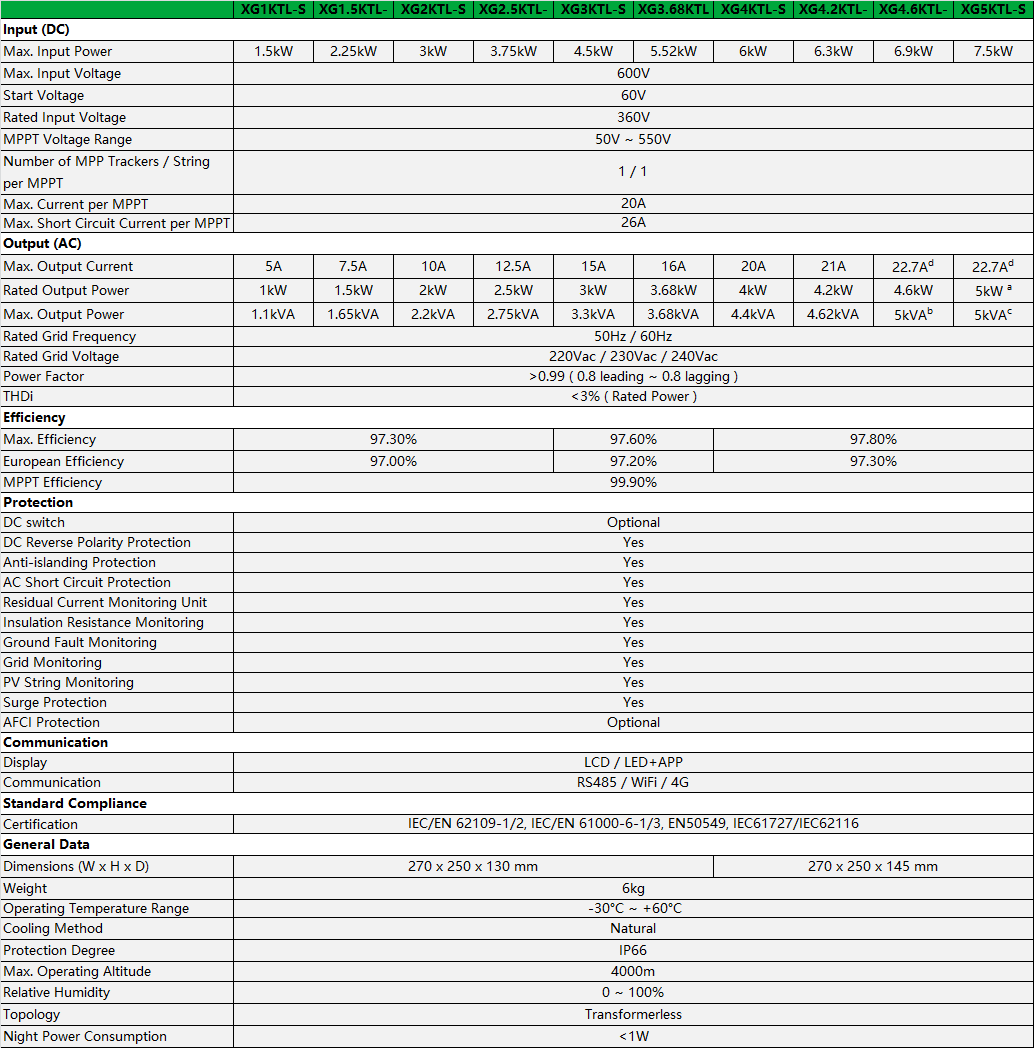

| XG1KTL-S | XG1.5KTL-S | XG2KTL-S | XG2.5KTL-S | XG3KTL-S | XG3.68KTL-S | XG4KTL-S | XG4.2KTL-S | XG4.6KTL-S | XG5KTL-S | ||||||||
| Input (DC) | ||||||||||||||||||
| Max. Input Power | 1.5kW | 2.25kW | 3kW | 3.75kW | 4.5kW | 5.52kW | 6kW | 6.3kW | 6.9kW | 7.5kW | ||||||||
| Max. Input Voltage | 600V | |||||||||||||||||
| Start Voltage | 80V | |||||||||||||||||
| Rated Input Voltage | 360V | |||||||||||||||||
| MPPT Voltage Range | 50V ~ 550V | |||||||||||||||||
| Full power MPPT Voltage range | 90-480 V | 115-480 V | 140-480 V | 165-480 V | 190-480 V | 230-480 V | 240-480 V | 250-480 V | 280-480 V | 300-480 V | ||||||||
| Number of MPP Trackers/String per MPPT | 1/1 | |||||||||||||||||
| Max. Current per MPPT | 20A | |||||||||||||||||
| Max. Short Circuit Current per MPPT | 26A | |||||||||||||||||
| Output (AC) | ||||||||||||||||||
| Max. Output Current | 5A | 7.5A | 10A | 12.5A | 15A | 16A | 20A | 21A | 22.7A | 22.7A | ||||||||
| Rated Output Power | 1kW | 1.5kW | 2kW | 2.5kW | 3kW | 3.68kW | 5kW | 4.2kW | 4.6kW | 5kW | ||||||||
| Max. Output Power | 1.1kVA | 1.65kVA | 2.2kVA | 2.75kVA | 3.3kVA | 3.68kVA | 5.5kVA | 4.62kVA | 5kVA | 5kVA | ||||||||
| Rated Grid Frequency | 50Hz / 60Hz | |||||||||||||||||
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac | |||||||||||||||||
| Power Factor | >0.99 (0.8 leading~0.8 lagging) | |||||||||||||||||
| THDi | <3% (Rated Power) | |||||||||||||||||
| Efficiency | ||||||||||||||||||
| Max. Efficiency | 97.30% | 97.60% | 97.80% | |||||||||||||||
| European Efficiency | 97.00% | 97.20% | 97.30% | |||||||||||||||
| MPPT Efficiency | 99.90% | |||||||||||||||||
| Protection | ||||||||||||||||||
| DC reverse polarity protection | Yes | |||||||||||||||||
| Anti-islanding protection | Yes | |||||||||||||||||
| AC short circuit protection | Yes | |||||||||||||||||
| Residual current monitoring unit | Yes | |||||||||||||||||
| Insulation resistance monitoring | Yes | |||||||||||||||||
| Ground fault monitoring | Yes | |||||||||||||||||
| Grid monitoring | Yes | |||||||||||||||||
| Surge protection | Type II | |||||||||||||||||
| AFCI protection | Optional | |||||||||||||||||
| Communication | ||||||||||||||||||
| Display | LCD / LED+APP | |||||||||||||||||
| Communication | RS485 / WiFi / 4G | |||||||||||||||||
| Standard Compliance | ||||||||||||||||||
| Certification | IEC/EN 62109-1/2, IEC/EN 61000-1/3, IEC 61727/62116, IEC 60068, IEC 61683 BIS, ABNT | |||||||||||||||||
| General Data | ||||||||||||||||||
| Dimensions (W x H x D) | 270 x 250 x 130 mm | 270 x 250 x 145 mm | ||||||||||||||||
| Weight | 6kg | |||||||||||||||||
| Operating Temperature Range | -30°C ~ +60°C | |||||||||||||||||
| Cooling Method | Natural | |||||||||||||||||
| Protection Degree | IP66 | |||||||||||||||||
| Max. Operating Altitude | 4000m | |||||||||||||||||
| Relative Humidity | 0 ~ 100% | |||||||||||||||||
| Topology | Transformerless | |||||||||||||||||
| Night Power Consumption | <1W | |||||||||||||||||
Popular Searches:

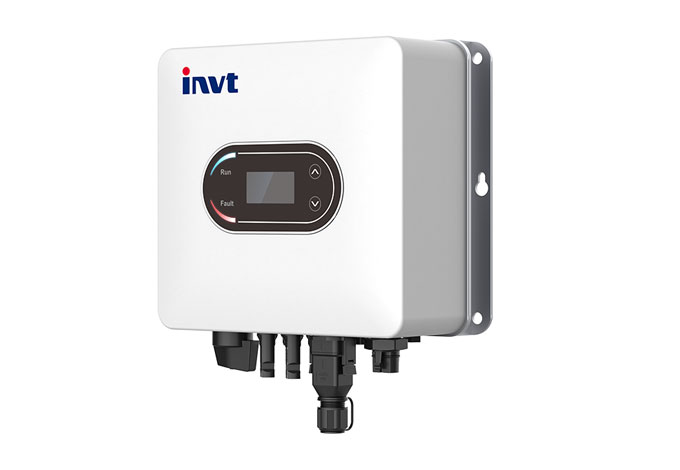

XG1-5KTL-S Single-phase On-grid solar Inverter
The XG1-5KTL-S single-phase grid-tied inverter features a simple and elegant design, with a compact size and lightweight build. It is equipped with a single MPPT and can handle string currents up to 20A, making it compatible with 210 solar modules. This inverter is suitable for residential photovoltaic systems.
·Rated Power: 1-5 kW
·
Single MPPT
·
20A per MPPT
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Efficient Higher Revenue
150% DC Input OversizingWide MPPT voltage range: 50V-550VMax. input current per string: 20A, Compatible with high power modules01
Intelligent Simple O&M
Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faultsIntelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault locationSupport RS485/WiFi/4G: remote monitoring and operation via PC or mobile phones02
Reliable Worry free
IP66 Protection degree: support outdoor installationAFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation03
