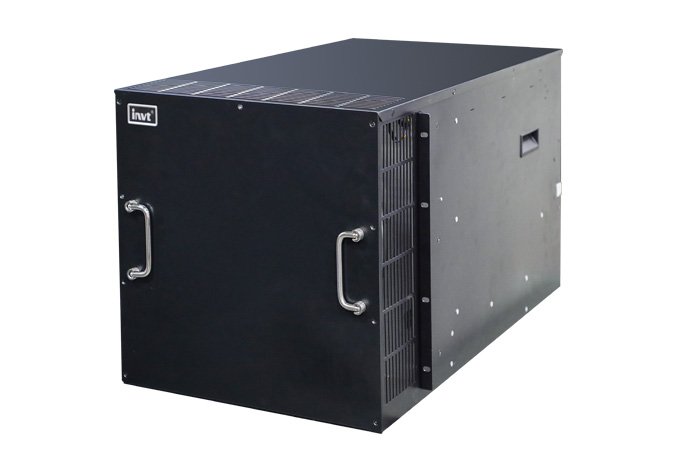

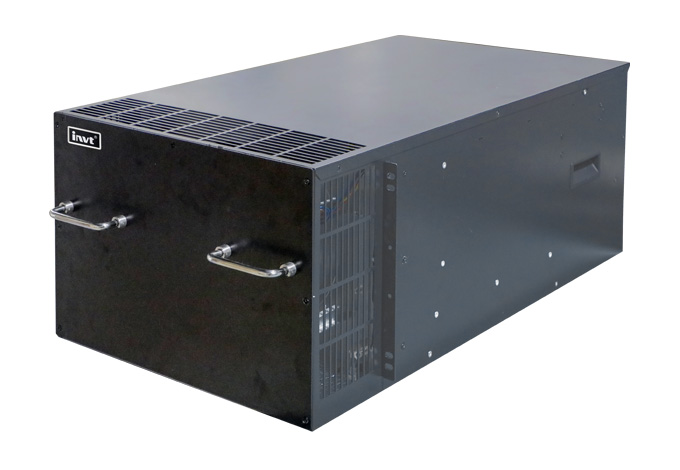

VCS Series In-rack Precision Air Conditioner

INVT VCS series in-rack precision air conditioner is designed specifically for server racks. It provides reliable cooling to maintain cabinet temperature and humidity within the optimal range, ensuring the safe operation of servers, power equipment, and other equipment. The air conditioner offers a wide cooling capacity range from 3.7kW to 12.5kW. It is primarily applied in single-cabinet or multi-cabinet micro modular data centers, delivering efficient cooling close to the heat source.
  • Features
  • Specification
  • Application
  • Download

1. High efficiency and energy saving:
* Standard EC fan with lower noise, optimized airflow distribution, and precise automatic airflow control.
* High-efficiency DC variable-frequency compressor that adapts to cabinet heat load changes in real time, with stepless cooling capacity adjustment.
* Electronic expansion valve with fast and precise refrigerant flow control, providing up to 30% higher energy efficiency compared to traditional valves.
* Features a large-surface-area V-shaped evaporator design for faster and more efficient heat exchange.

2. High adaptability:
* In-rack pull-out design for easy handling and maintenance.
* Supports both single-cabinet and multi-cabinet cooling applications with online cabinet expansion capability without service interruption.
* Compact structural design reduces valuable U-space occupation in cabinets
* Flexible power configuration with support for multiple voltage frequencies (50/60Hz).
* Standard models support outdoor environments from -20℃ to 45℃, with an optional low-temperature kit for temperatures down to -40℃.

3. Safe and reliable:
* Key components are sourced from leading brands to ensure stable and reliable operation.
* Eco-friendly refrigerant R410A, compliant with international green standards.
* Standard RS485 interface supports remote centralized control, auto-restart after power restoration, and scheduled on/off operation.
* Advanced microprocessor controller with multi-level password protection to prevent misoperation.

4. Flexible configuration:
* Covers multiple cooling capacity ranges, suitable for cabinets of different power levels.
* Standard upflow supply with left and right side discharge, with optional front air supply.
* Rich optional accessories: manual operator display, condensate pump, evaporative humidifier, etc.

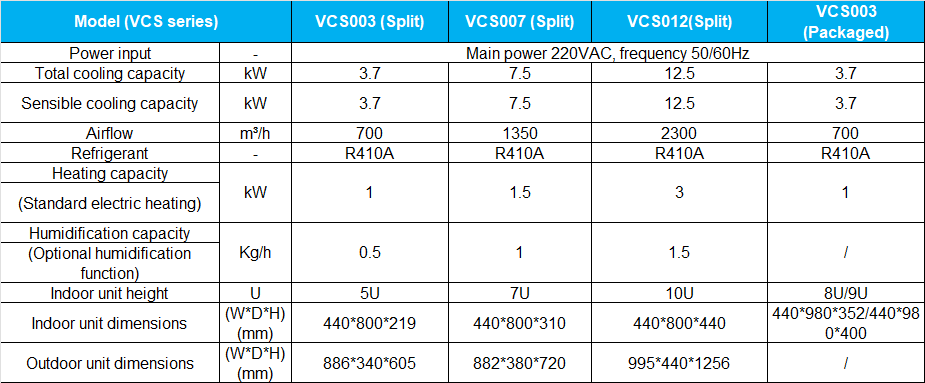

Specifications:


Note: 1. test conditions: indoor return air temperature 37°C, relative humidity 24%, outdoor temperature 35°C.


Note: 1. test conditions: indoor return air temperature 37°C, relative humidity 24%, outdoor temperature 35°C.
