VCB Series Rear-door Precision Air Conditioner

INVT VCB series rear-door precision air conditioner is designed for high-density data centers and similar applications. Typically installed at the rear door of the cabinet, close to the heat source, it cools down the heat generated by the equipment and discharges it to the outside of the cabinet. It covers a cooling capacity range of 5–15 kW. Designed with simplified components and a compact structure, the unit provides high reliability, reduced footprint, simple installation, and hassle-free maintenance.
  • Features
  • Specification
  • Application
  • Download

1.  High efficiency and energy saving:
* Redundant multi-fan design, with each fan operating in its optimal efficiency range, ensuring low power consumption and high reliability.
* Electronic expansion valve for faster response and more precise flow regulation.
* High-efficiency, eco-friendly refrigerant R410A, compliant with international green standards, with high return-air temperatures further improving cooling efficiency.

2. Safe and reliable:
* Uses certified high-quality components for enhanced reliability from the ground up.
* Designed with a 100% sensible heat ratio, ensuring no condensate is generated during operation.
* At low loads, the unit precisely controls supply and return air temperature and humidity.
* Rigorous, repeated testing to meet high standards and ensure high-quality delivery.

3. Intelligent control:
* An advanced control system provides intelligent management, adjusting cooling capacity and airflow output on demand.
* 7-inch premium true-color capacitive touchscreen, offering multiple display options such as graphical status and temperature/humidity curves.
* Standard RS485 interface; optional SNMP interface.
* Multi-level password protection with hierarchical access control.

4. Easy maintenance:
* Threaded piping connections eliminate the need for hot work during installation in the server room.
* The reserved service panel provide access to all internal components.
* The fan panel can be opened independently for maintenance. The rear-door air conditioner can swing open 90°.

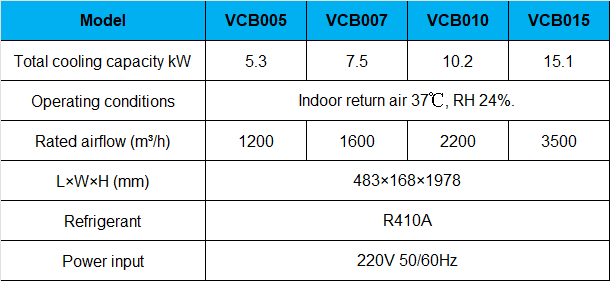

Specifications:
