1. Safe and reliable
• Ensures safe and reliable operation through strict control at every stage: factory prefabrication, pre-assembly, and pre-commissioning.
• Self-contained system, adaptable to challenging environments such as dusty conditions, confined spaces, or areas with limited temperature control.
• Incorporates an intelligent heat-activated door opening system that prevents rapid aisle overheating, providing critical time for data backup.
• Integrates an intelligent monitoring system that ensures secure data center operations.
2. High efficiency and energy saving
• Achieves an average annual PUE of approximately 1.3 per cabinet through close-coupled cooling and efficient power supply design.
• Multi-cabinet solution, combining a power distribution cabinet, UPS cabinet, monitoring cabinet, and cooling cabinet to save space.
• Pre-engineered design, no need for fit-out; enables remote operation and maintenance without requiring on-site personnel, effectively reducing total cost of ownership (TCO).
3. Quick setup
• Fully modular power distribution design for easy installation and maintenance.
• In-rack air conditioner with threaded piping for simpler servicing.
• No special fit-out needed; equipment is ready to use upon arrival, with installation and commissioning taking only 3 hours.
• Self-contained system, ready for immediate deployment.
4. Intelligent management
• Comprehensive intelligent monitoring of power and environmental system status.
• Supports multi-channel alerts including SMS, phone calls, email, and audio-visual alarms.
• Provides multiple access interfaces, including a large O&M display, remote app, local LCD screen, and web interface.
• Offers northbound interfaces such as Modbus TCP and MQTT for system integration.

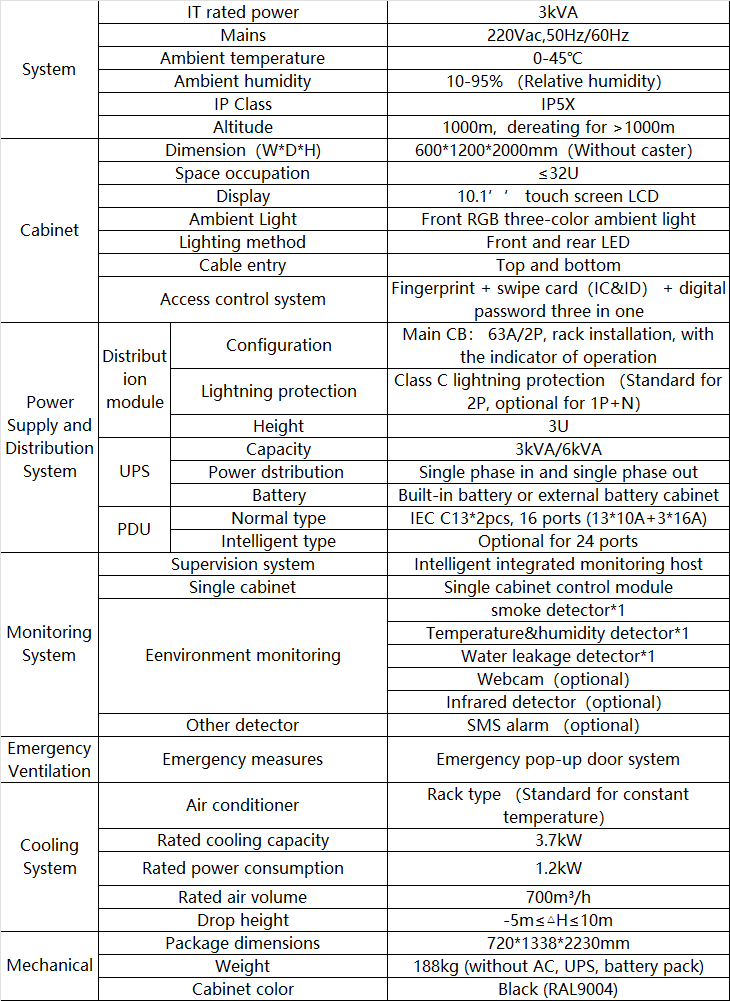

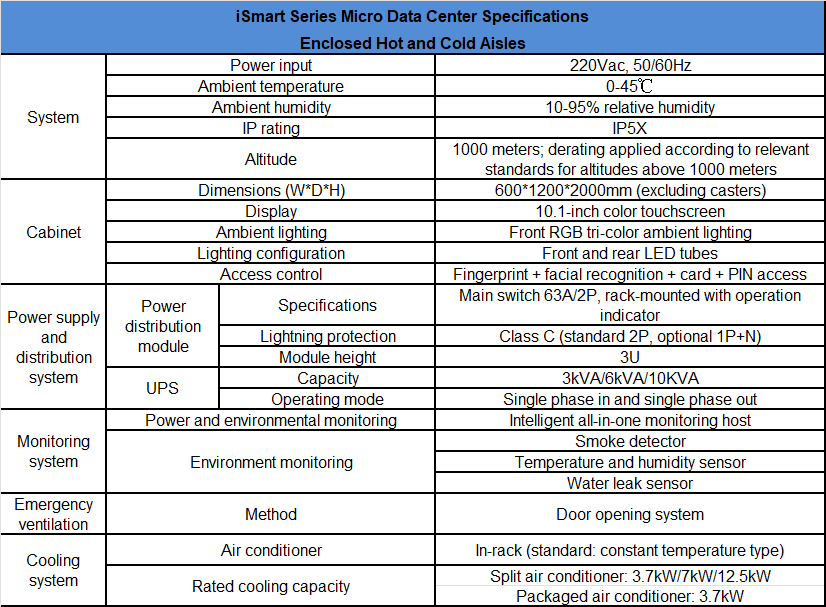

Specification:
