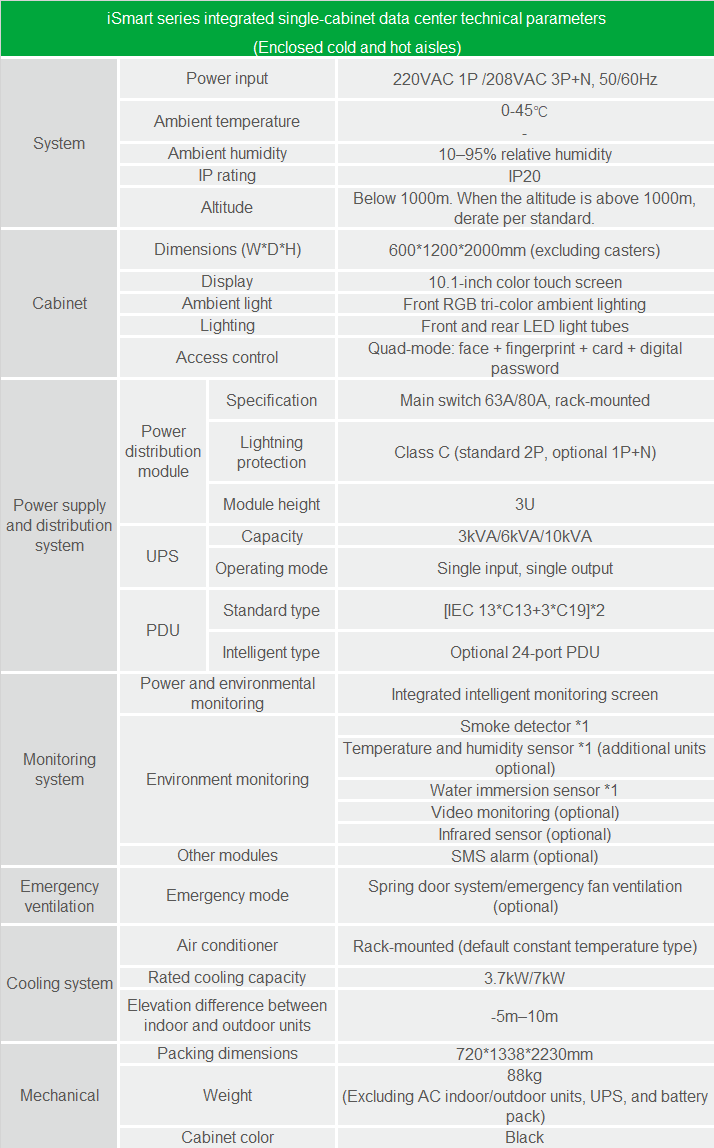

| iSmart series integrated single-cabinet data center technical parameters (Enclosed cold and hot aisles) | |||
| System | Power input | 220VAC 1P /208VAC 3P+N, 50/60Hz | |
| Ambient temperature | 0-45℃ | ||
| Ambient humidity | 10–95% relative humidity | ||
| IP rating | IP20 | ||
| Altitude | Below 1000m. When the altitude is above 1000m, derate per standard. | ||
| Cabinet | Dimensions (W*D*H) | 600*1200*2000mm (excluding casters) | |
| Display | 10.1-inch color touch screen | ||
| Ambient light | Front RGB tri-color ambient lighting | ||
| Lighting | Front RGB tri-color ambient lighting | ||
| Access control | Quad-mode: face + fingerprint + card + digital password | ||
| Power supply and distribution system | Power distribution module-Specification | Main switch 63A/80A, rack-mounted | |
| Power distribution module-Lightning protection | Class C (standard 2P, optional 1P+N) | ||
| Power distribution module-Module height | 3U | ||
| UPS-Capacity | 3kVA/6kVA/10kVA | ||
| UPS-Operating mode | Single input, single output | ||
| PDU-Standard type | [IEC 13*C13+3*C19]*2 | ||
| PDU-Intelligent type | Optional 24-port PDU | ||
| Monitoring system | Power and environmental monitoring | Integrated intelligent monitoring screen | |
| Environment monitoring | Smoke detector *1 Temperature and humidity sensor *1 (additional units optional) Water immersion sensor *1 Video monitoring (optional) Infrared sensor (optional) | ||
| Other modules | SMS alarm (optional) | ||
| Emergency ventilation | Emergency mode | Spring door system/emergency fan ventilation (optional) | |
| Cooling system | Air conditioner | Rack-mounted (default constant temperature type) | |
| Rated cooling capacity | -5m–10m | ||
| Elevation difference between indoor and outdoor units | 720*1338*2230mm | ||
| Mechanical | |||
| Packing dimensions | 720*1338*2230mm | ||
| Weight | 88kg (Excluding AC indoor/outdoor units, UPS, and battery pack) | ||
| Cabinet color | Black | ||
Popular Searches:
iSmart Series Integrated Single-Cabinet Data Center
INVT iSmart series integrated single-cabinet data center integrates all essential infrastructure for a micro or small-scale data center into a single cabinet with fully enclosed hot and cold aisles. It is equipped with comprehensive environmental sensors and centrally monitored and managed by the eSite cloud map monitoring system. This product standardizes the entire data center deployment within a compact footprint, providing a secure and reliable operating environment for your equipment. It significantly enhances intelligent remote management capabilities, eliminating the need for specialized maintenance personnel, thereby dramatically simplifying both the initial deployment and ongoing operational processes.
·Enclosed cold and hot aisles
·220Vac, 50/60Hz
·3-10kVA
Video
ImagesOverview
Features
Specifications
Downloads
More Resources
Case
Videos
More
Features
Safe and reliable
Strict control over factory prefabrication, pre-assembly, and pre-commissioning ensures safe and reliable installation and operation.Each single cabinet forms a complete system, suitable for various complex scenarios (dusty environments, confined spaces, areas without thermal insulation measures).Intelligent high-temperature spring door system delays aisle overheating, providing time for data backup.Integrated intelligent monitoring system ensures the safety and reliability of the computer room operation.01
High efficiency and energy saving
Proximity cooling and efficient power supply result in a low power usage effectiveness (PUE).Combining power distribution, UPS, monitoring, and cooling to save space into a single cabinet saves floor space.Elimination of engineering design, decoration wiring, and remote operation and maintenance without on-site personnel reduce the total cost of ownership (TCO).02
Simple and quick setup
Fully modular design simplifies installation and maintenance.Rack-mounted air conditioner indoor unit features threaded pipe connections for easy inspection and maintenance.No special room decoration required; equipment is ready for use upon arrival. Installation and commissioning period: 3 hours.Each single cabinet forms a complete system, ready for immediate use upon installation.03
Intelligent management
Comprehensive intelligent monitoring of power and environmental system status.Real-time alarms via multiple methods, including SMS, phone calls, email, WeCom app, and audible/visual alarms.Multiple HMI options: O&M dashboard, remote app, local LCD, and Web.Northbound interfaces: ModbusTCP, MQTT, etc., for easy system integration.04
