In modern industrial production, every detail is crucial for safety and efficiency. The power distribution and control room, as the core component of the power system, the safety and stability of its operating environment directly affect the efficient operation of the entire production process. The interior of the power distribution room is usually very small and lacks a cooling and heat dissipation system, which easily poses potential hazards to production safety. Therefore, how to achieve efficient cooling within a limited space and ensure that the equipment operates stably in an appropriate environment has become a pressing problem that needs to be solved.
VCA series large room precision air conditioner is a special precision air conditioner for medium and large IDC rooms, communication rooms, equipment rooms and other places to provide internal environmental temperature and humidity and cleanliness control. It’s used to ensure that the equipment have a reasonable temperature and humidity operating environment
Project introduction
A project requirement from Inner Mongolia for precision air conditioner to provide stable environment temperature for the power distribution room where it is located in a industrial production company. The client required room type precision air conditioner to solve the heat dissipation problem of power distribution room with scalability and flexibility.
System configuration

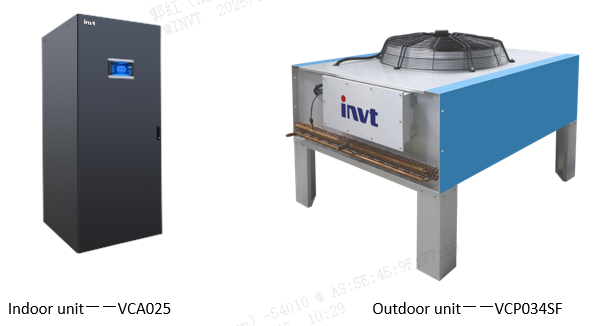

Precision air conditioner's information VCA025/VCP034
Difficulty, solution and advantages
* Difficulty: The space in the distribution room is very limited. How to formulate a plan to ensure adequate cooling capacity and the even placement of air conditioner?
* Solution: First, the INVT team conducted a comprehensive survey of the quantity, capacity and space conditions of the equipment in the power distribution room. Through precise calculation, we obtained the total heat generation of the equipment and the space heat, and based on this, calculated the total cooling capacity required. During the process of formulating the plan, INVT fully considered the feature of the power distribution room having a small space. After multiple communications and studies with the customer, we finally selected a solution of 8pcs VCA025 top air supply precision air conditioners with air ducts. This solution not only met the demand for total cooling capacity, but also ensured the uniform and dispersed arrangement of the air conditioner.
* Advantages:
a. Select VCA025 top air supply precision air conditioners, under the condition of meeting the total cooling capacity requirement, the air conditioners were uniformly arranged. This not only solves the installation and maintenance space problems of a single air conditioner, but also achieves the effect of uniform cooling.
b. By adopting the top air supply mode and air duct, the cold source can be effectively delivered to the designated location, achieving precise cooling.
c. It effectively solved the problem that the customer's power distribution room lacked a cooling and heat dissipation system, which posed considerable safety hazards.
d. The equipment in the distribution room operates under relatively suitable conditions, which significantly extends the service life and stability of the equipment.

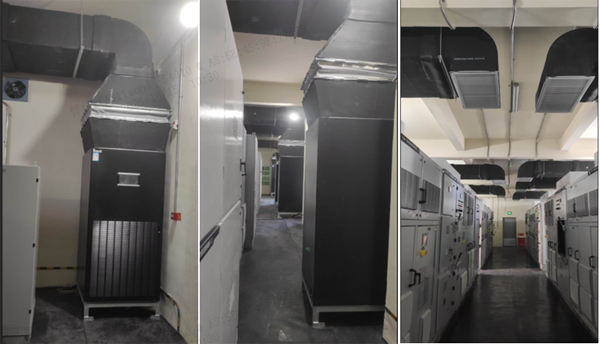

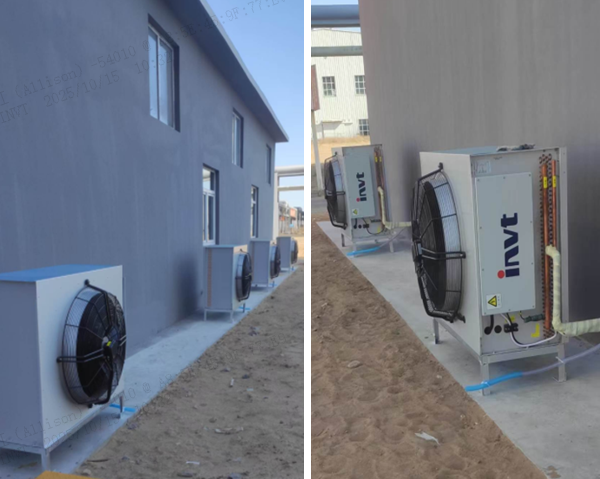

Field application photos
Summary
INVT is the first time to adopt a glass wall design for the containment data center, combining precision air conditioner, power distribution system, monitoring system and so on. This design effectively attracts potential customers who are highly innovative and focus on product differentiation. It also breaks the original traditional layout of the market. This design further enhanced the overall aesthetic appeal of the design. It has demonstrated to the customer the reliability and innovation brought by INVT, thus winning the favor and trust of the customer.
The successful application of the INVT VCA series room type precision air conditioners in the power distribution room of Inner Mongolia fully demonstrates the professional strength and innovation ability of INVT in the field of refrigeration and heat dissipation. It also opens up a new territory for the application map of precision air conditioners. In the future, INVT will continue to focus on technological innovation and product upgrading, concentrating on industry pain points and customers' actual needs, to provide more customers with more targeted, efficient and stable refrigeration solutions, and contribute to the intelligent development of the manufacturing industry.
