INVT TM751 PLC for High-Speed Cable Rewinding in Cable Manufacturing

In recent years, China has vigorously promoted the intelligent transformation of the manufacturing industry, and the requirements for wire quality in industries such as electronics manufacturing, aerospace, and metal processing have been continuously increasing. As a key piece of equipment in the wire winding process, high-speed rewinding machines are rapidly developing towards high precision, high speed, and intelligence.

Customer requirements

Traditional rewinding machines are unable to meet market demands in terms of tension control, wire breakage detection, and automation. When upgrading its production line, a cable manufacturer proposed a more stable and intelligent drive solution to improve production efficiency and reduce losses.

1. High-precision tension control: The system is required to have excellent dynamic response characteristics to achieve precise and stable control of wire tension and ensure consistency in the winding process.

2. Ultra-high speed operation: The system needs to maintain stability under extremely high linear speed conditions, while achieving smooth start-stop transitions and eliminating abnormal conditions during operation.

3. Intelligent management: The system supports automatic anomaly detection and has remote monitoring capabilities, enabling traceable management of production data.

INVT Solution

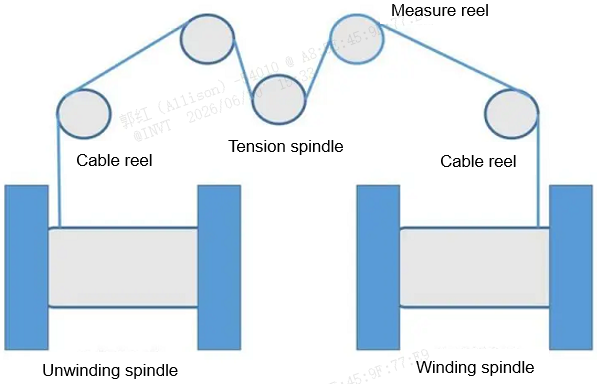

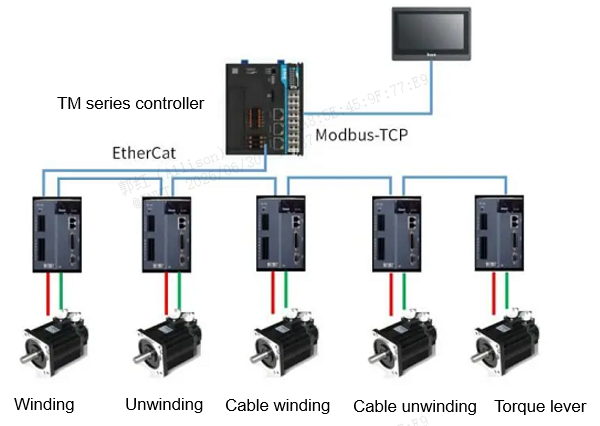

To address customer needs, INVT offers a system solution consisting of VS series HMI+TM751 PLC controller+ High-performance DA200A series servo drive, achieving the following three major breakthroughs:

• Precise control: TM751 PLC controller features high-response logic control, supports multi-axis coordination, and dynamically matches the winding and unwinding speeds through roll diameter calculation and tension lever PID adjustment. The lever angle remains stable within the 0~0.5 degee range, significantly reducing the risk of wire breakage.

• Stable operation: DA200A servo system supports a linear speed of 800 m/min and automatically and smoothly stops the machine in the event of a power outage to avoid material waste.

• Intelligent detection and interconnection: Integrated with real-time monitoring of wire breakage and jamming, it works with the TM751 PLC for rapid shutdown response; it also supports remote monitoring, facilitating digital management.

Customer benefit

INVT's TM751 rewinding system offers cable manufacturers a highly efficient and reliable intelligent solution, boasting high-speed performance, stable control, and intelligent management capabilities. Closely aligned with the manufacturing industry's trends towards high-speed and digital transformation, this system not only builds a more competitive foundation for automated production lines but also achieves comprehensive improvements in three key dimensions: capacity, quality, and maintenance.

• Leap in efficiency: The rewinding speed has been increased to 800m/min, and the automatic stop function reduces manual intervention, resulting in a significant increase in production efficiency.

• Cost optimization: Ensuring smooth start-up and shutdown, preventing issues such as cable slippage and jamming, and significantly reducing annual material waste.

• Intelligent upgrade: It can automatically detect broken or stuck wires, and reduce maintenance costs through remote monitoring and fault prediction functions.

INVT's TM751 system solution not only solves the technical bottlenecks of traditional equipment in tension control and high-speed operation, but also helps enterprises achieve digital upgrades through intelligent functions. In the future, INVT will continue to increase its technological innovation efforts in the field of motion control, further expand application scenarios in key industries, and empower manufacturing enterprises to enhance their core competitiveness with smarter and more efficient solutions, jointly promoting the high-quality development of intelligent manufacturing in China.
