INVT iWit Single-Row Modular Data Center for Office Building in Malaysia

Abstract: The explosive growth of technologies such as 5G, AI, and cloud computing has put traditional data centers under pressure due to their low heat dissipation efficiency, high energy consumption, and poor scalability. Meanwhile, as enterprises accelerate their digital transformation, the construction period of data centers is required to be shortened from the traditional 18-24 months to 3-6 months. The prefabricated and standardized design of micro-modules enables "plug-and-play", meeting the demand for agile deployment. The single row enclosed aisle micro data center physically isolates cold and hot airflows, reducing PUE and significantly improving energy efficiency. Centering on energy efficiency, agility, and reliability, it is becoming the mainstream solution for small and medium-sized data centers, driving the industry towards green and intelligent transformation.

Keywords: Single row modular data center, precision air conditioner.

Overview

The iWit series single row cabinet data center integrates all needed equipment into cabinet with closed hot and cold aisle, kinds of sensors monitored and managed by power and environment system, which standardize the whole data center to smaller space, comes with remote intelligent controlling, provides safe and reliable operation environment. No need for professional engineer maintenance which simplify construction, operating and maintenance.

Project introduction

A government project requirement from Ipoh State, Malaysia for a single row modular data center to provide information storage services for the newly built office building where it is located. The client required a data center that can be fast deployment and put into use quickly.Therefore INVT provide the iWit series single-row modular data center solution to meet the client’s requirement.

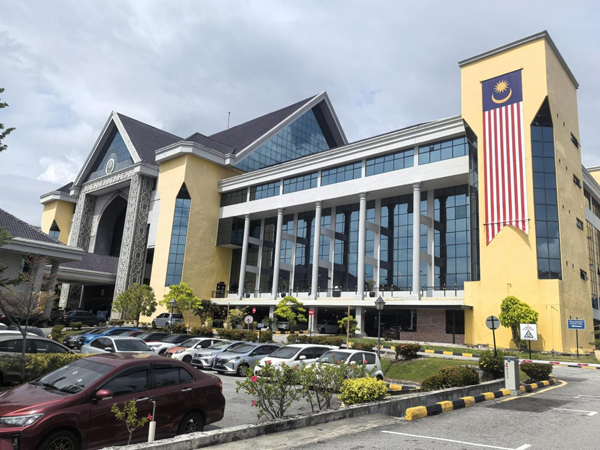

Project location

System configuration

The iWit series data center’s information is as below:

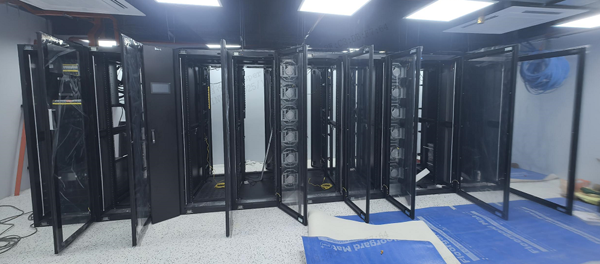

Glass door server cabinet

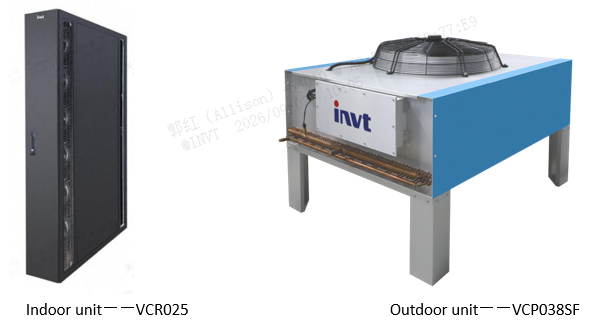

Precision air conditioner’s information is as below:

VCR025/VCP038

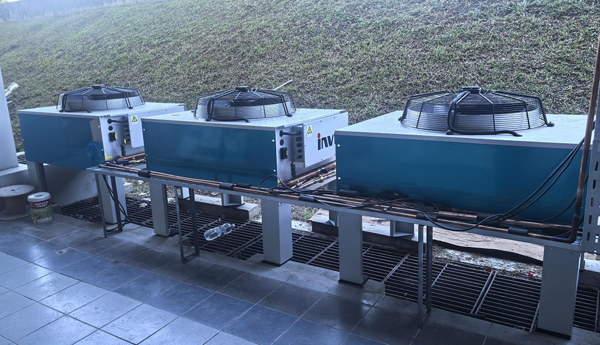

On-site installation

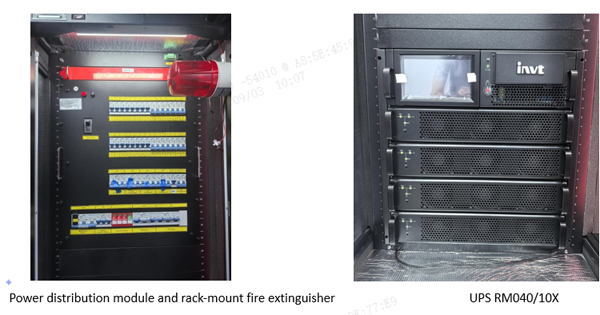

Power distribution system’s information is as below:

DCIM system’s information is as below:

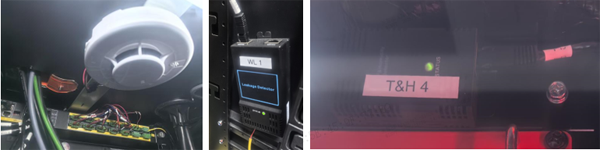

DCIM monitoring sensor and the single cabinet control module

Difficulty, solution and advantages

1. Difficulty: It’s the first time for the client to install the VCR025, and it’s serious part of the government project, how can the customer successfully complete the installation?

Solution: INVT repeatedly confirmed the customer's requirements, after a deep discussion, INVT decide to send two engineer to Malaysia, hand by hand to guide the client to finish the installation. During the installation, INVT team kindly share some attention points of the installation to the client’s engineer team, and teach them how to complete a data center installation. The professional performance of the INVT team has earned the trust of the client team as well as the recognition of the end users for the products.

Summary

INVT adopted a more collaborative approach to address the issues encountered during customer installation, successfully implementing the iWit single-row data center product in the Malaysian state government, providing stable information system support for the local government's administrative work. INVT's professional technical performance and excellent product quality have received praise from end users, enabling the iWit products to be promoted and publicized by the local government in Malaysia.

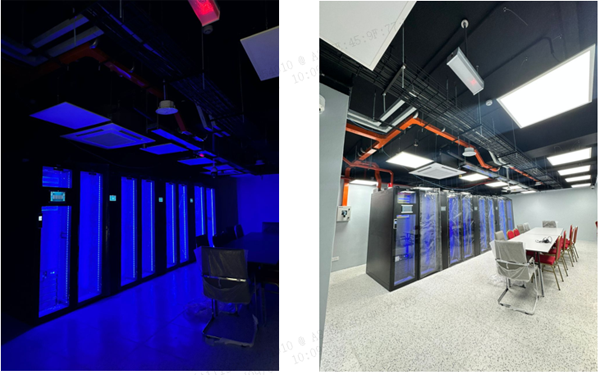

Final completed photos
