INVT GD350A VFD for Ceramic Tile Production in Morocco

Abstract: As a prominent football nation, Morocco will co-host the 2030 FIFA World Cup, necessitating the expansion of related sports facilities. Coupled with the improvement of living standards, the demand for ceramic tiles has grown accordingly. To capitalize on this opportunity, several local Moroccan ceramic tile manufacturers have begun introducing new tile production lines, with INVT GD350A series high-performance vector frequency inverters playing a crucial role.

Keywords: GD350A, ceramic tile

1. Introduction

The ceramic tile production line comprises multiple subsystems, including raw material mixing, forming, firing, and inspection. Fully automated production demands high precision, energy efficiency, and operational stability, thus prompting meticulous brand selection. INVT's GD20 and GD350A series frequency inverters incorporate advanced vector control technology and multiple functional terminals. The GD350A series further includes STO safety functions, diverse communication interfaces, and closed-loop control features, effectively aligning with customers' production process demands.

2、Customer Requirements

Ceramic tile production lines demand high operational stability; any unexpected equipment stoppages during production can cause substantial material waste and elevate production costs. In response, the customer has outlined the following requirements:

1. High heavy overload capacity to ensure stable operation during mixing and transmission processes;

2. An LCD display function to facilitate convenient monitoring of equipment status;

3. Equipped with vector control functionality and exhibiting high dynamic response characteristics

3. INVT Solutions

To satisfy customer requirements, INVT’s products meet the following specifications:

a. High performance and Multiple protection ensure equipment working stably and safely

b. Both GD20 and GD350A are designed for heavy-duty use, supporting 1.5 times overload operation for 1 minute

c. The GD350A comes standard with an LCD keyboard featuring English display, allowing debugging without a manual and enabling customers to easily monitor equipment status

d. Standard vector control with torque response under 20 ms and speed control accuracy of ±0.2%

Configuration Table

4. Customer Value

1. Heavy overload capacity minimizes downtime losses caused by faults from load fluctuations

2. LCD display, reducing debugging time

3. Vector control with an MTBF of up to 50,000 hours, ensuring long-term stable equipment operation, reducing maintenance costs and material waste

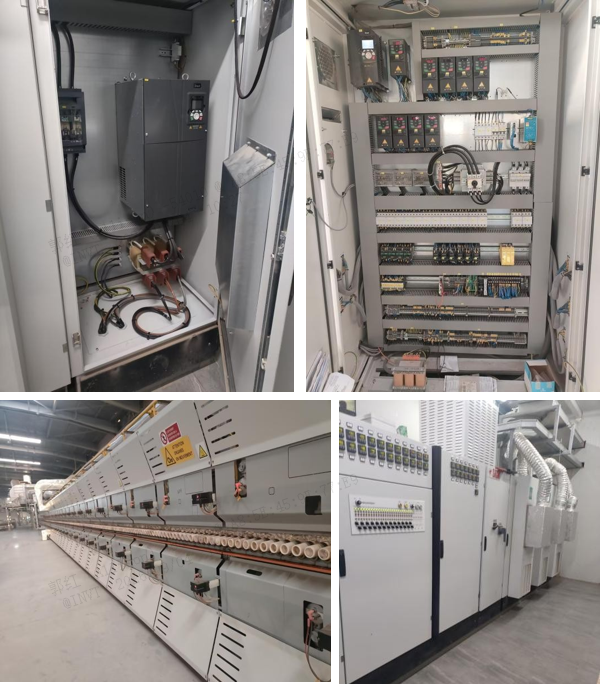

5. Application Pictures

6. Conclusion

Many African countries, due to relatively weak industrial foundations, currently have insufficient domestic productivity to meet the high-growth demand for improved living standards, thereby requiring foreign technology to enhance production efficiency. As a renowned multinational enterprise in the industrial automation sector, INVT leverages its product advantages to fulfill customer production demands and will continue to refine and optimize its solutions to help customers improve product competitiveness.
