EC100 Group Control System for LIPARIS Hotel

Release time:2020-03-31
Click amount: 70

1.Project information

LIPARIS hotel stay in Mersin city in Turkey, which has both hotel and spa, and it will be open in June 2016. This hotel has 13 floors and requires 4 elevators as the transport tools for this high class building, 3 elevators group control and 1 elevator single control. Safety, high reliability, best performance and high efficiency are the most important requirement for the commercial building.


LIPARIS Hotel Building Appearance


2.Elevator system

In this project, there are totally 4 elevators which has been installed in the same machine room. All these elevators are for passengers. For increasing the transport efficiency, Group Control mode must be the best choice for the elevator control system of this project. According to the whole lift system design, 3 elevators use group control technology. The specifications as follow:

ItemDescriptions
Control Mode3 Elevators Group Control
Capacity750 kg, 10 Persons
Elevator Speed2.0 m/s
Number of Stops13

According to the specification of the elevators, we chose the right model as follow, which is based on the EC100 elevator integrated controller.

Specifications:

ItemModelQtyDescriptions
EC100 integrated controllerEC100-015-4315kW, 380VAC, 34A
Communication boardEC-CTB3Car top control board
Group control boardMC-GCL3Group control board
Commanding boardEC-CCB3Car commanding board
Displaying boardLM21-0703LCD Displaying board for COP
Displaying boardDC-07C39LCD Displaying board for LOP
Handheld operatorEC-PAD1LCD handheld operator

For the good appearance, LCD display is needed for the LOP system. And arrival gong and arrival light system is useful in the group control project. For the in-car display, we are using the LM21 7inch 64 color TFT displays, which support the customized background photo and sounds.

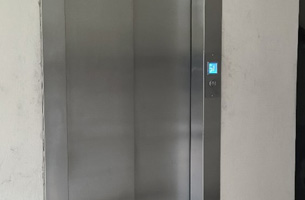

LOP and COP

Control cabinet is simple since it base on the EC100 integrated controller which combine the motor drive and the elevator controller. For the traction motor, gearless motor is more efficiently and high performance for the passenger elevators.

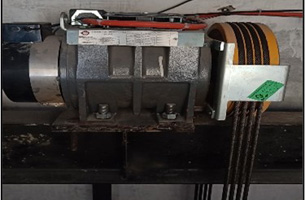

Control cabinet and Traction motor


EC100 integrated elevator controller provides the easy debugging way for the group control system setting. With the EC-PAD handheld operator connecting to the MC-GCL group control board, we can check the group control parameters and finish the debugging in a short time.


3.EC100 Group Control System


EC100 Group Control Diagram


EC100 elevator integrated controller provides 3 group CAN communications, including in-car CAN communication, hall landing CAN communication and group control communication. CAN communication is more reliable than other communication protocol, especially in the high building.

For the group control, EC100 can support at most 8 elevators. In the group control system, MC-GCL group control board must be added for each elevator system, which will be wired in same link with the CAN communication cables.


4.Conclusion

Group control is wildly use in the commercial building for increasing the transport efficiency. EC100 elevator integrated controller provides the advanced group control technology and makes the debugging to be simple and easy, which cause cutting the cost of the time and the device.
