RM Series Modular Online UPS 100-600kVA (380V/400V/415V)

The RM Series modular online UPS single cabinet power rating covers from 100kVA to 600kVA, provides the highest power density of 100kW modules in 4U height. 4 units can be paralleled for capacity maximum up to 3.2MW. With the latest technology of 3-level technology and PFC input control, the RM series delivers the best combination of reliability, hotswappable function and flexibility.

Inquiry

Facebook Twitter Google+ LinkedIn

Features

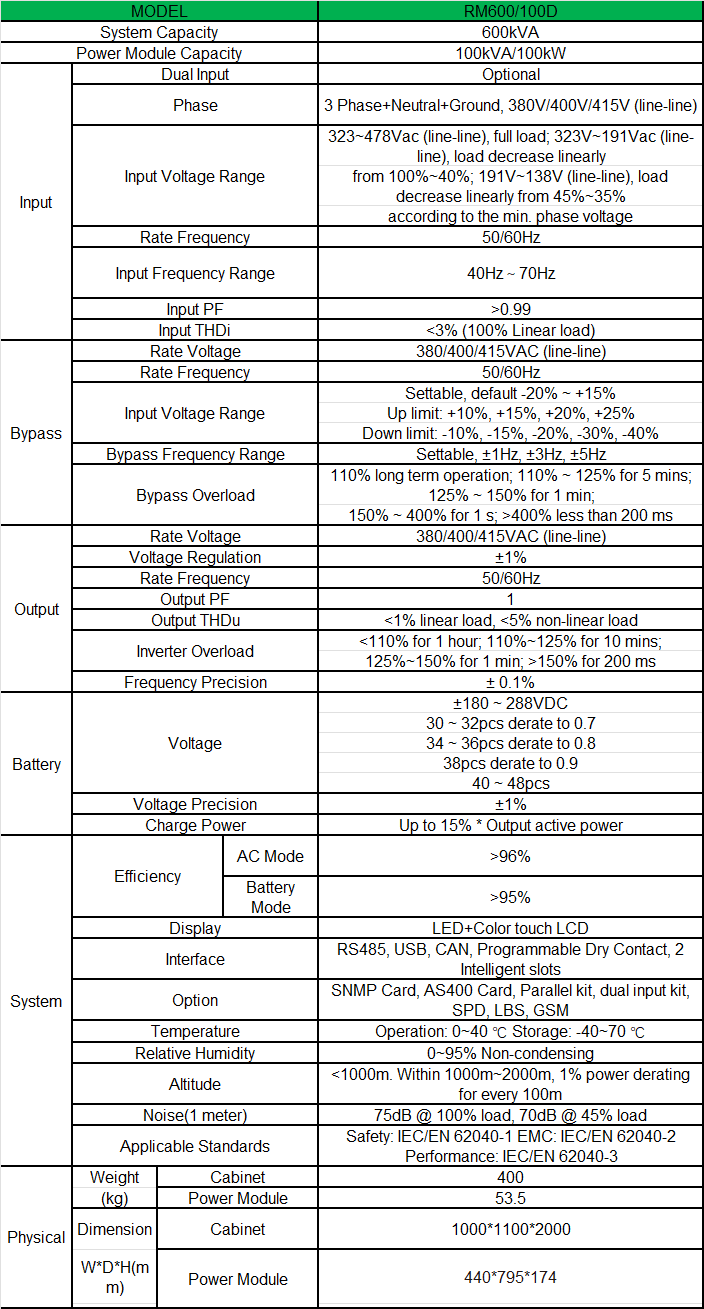

Specification
Application
Download

1 High efficiency: Advanced 3-level technology guarantees, high efficiency operating in double conversion mode up to 96%.

2. Battery neutral free design: Two kind of power module to choose, battery N line free or not, saving instruction cost for customer.

3. High power density: 100kVA power module in 4U height, easy for capacity expansion.

4. Friendly HMI:Ultra-large 10" color touch LCD display for lot appliacation intuitive information and easier to operate.

5. Multi communication interface: Provide CAN, RS485, USB, SNMP, AS400 and programmable dry contacts.

6. High scalability: The system can be configured from 100kVA to 3.2MW,max 32 power modules in parallel.

7. Smart sleep function: System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency.
